Disassembly And Assembly

WARNING: This page is about a different variant/trim than selected.

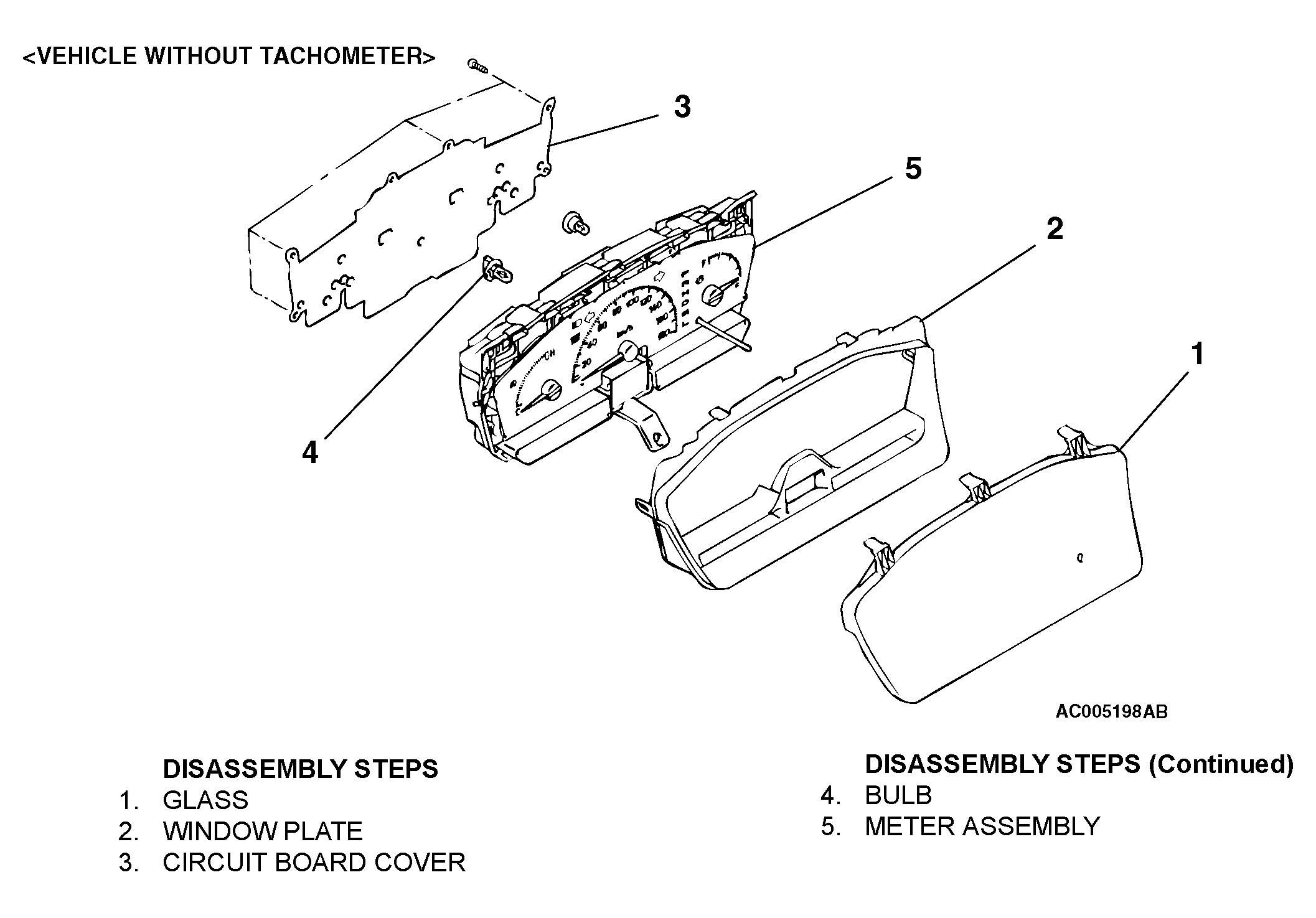

Fig 1: Identifying Combination Meter Components (Vehicle Without Tachometer)
G04278861Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

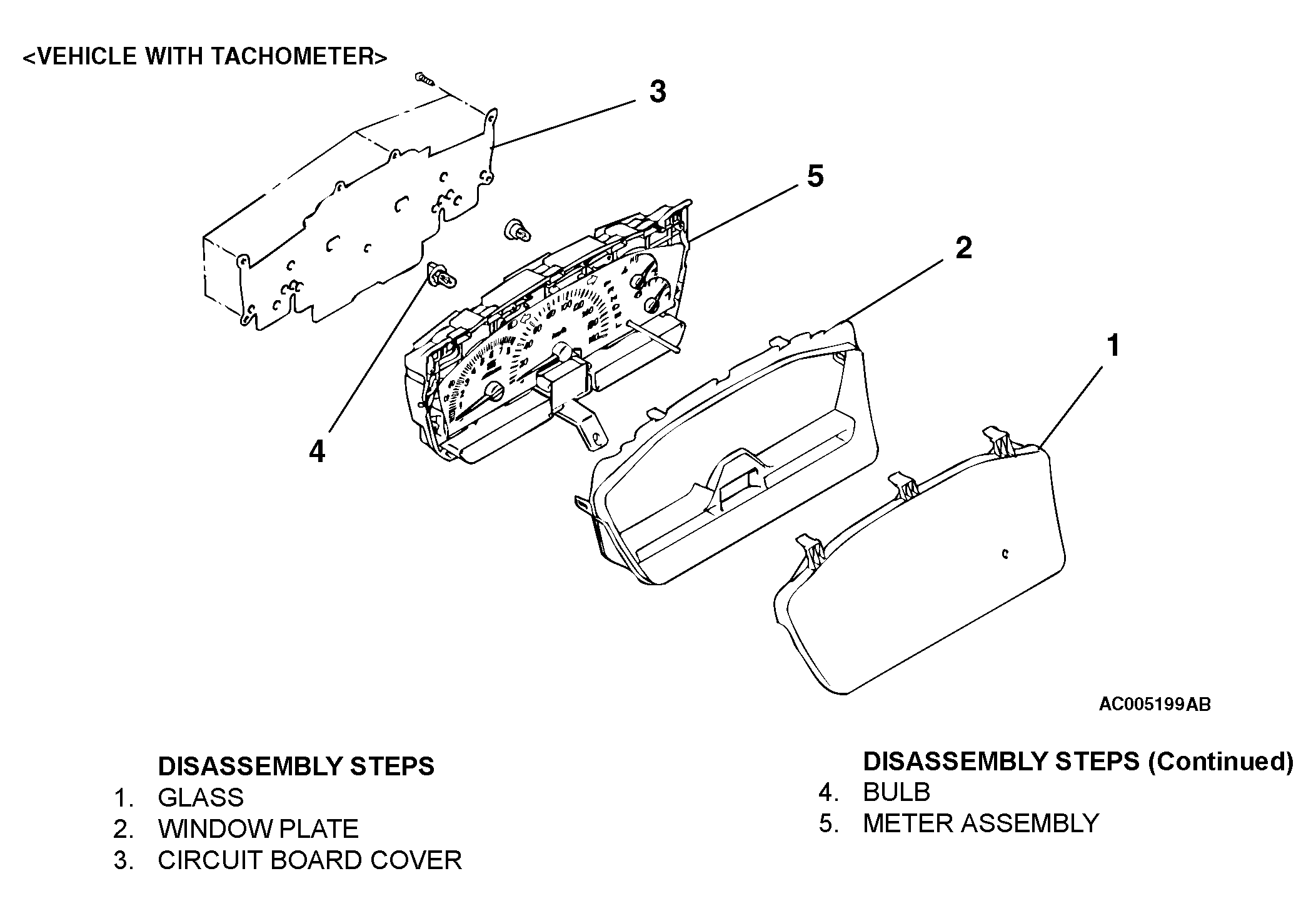

Fig 2: Identifying Combination Meter Components (Vehicle With Tachometer)
G04278862Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
