Removal And Installation: Notes

WARNING:
  • Before removing the steering wheel - driver's air bag module assembly, refer to SERVICE PRECAUTIONS and AIR BAG MODULE AND CLOCK SPRING .
  • When removing and installing the steering wheel, do not let it bump against the air bag module.

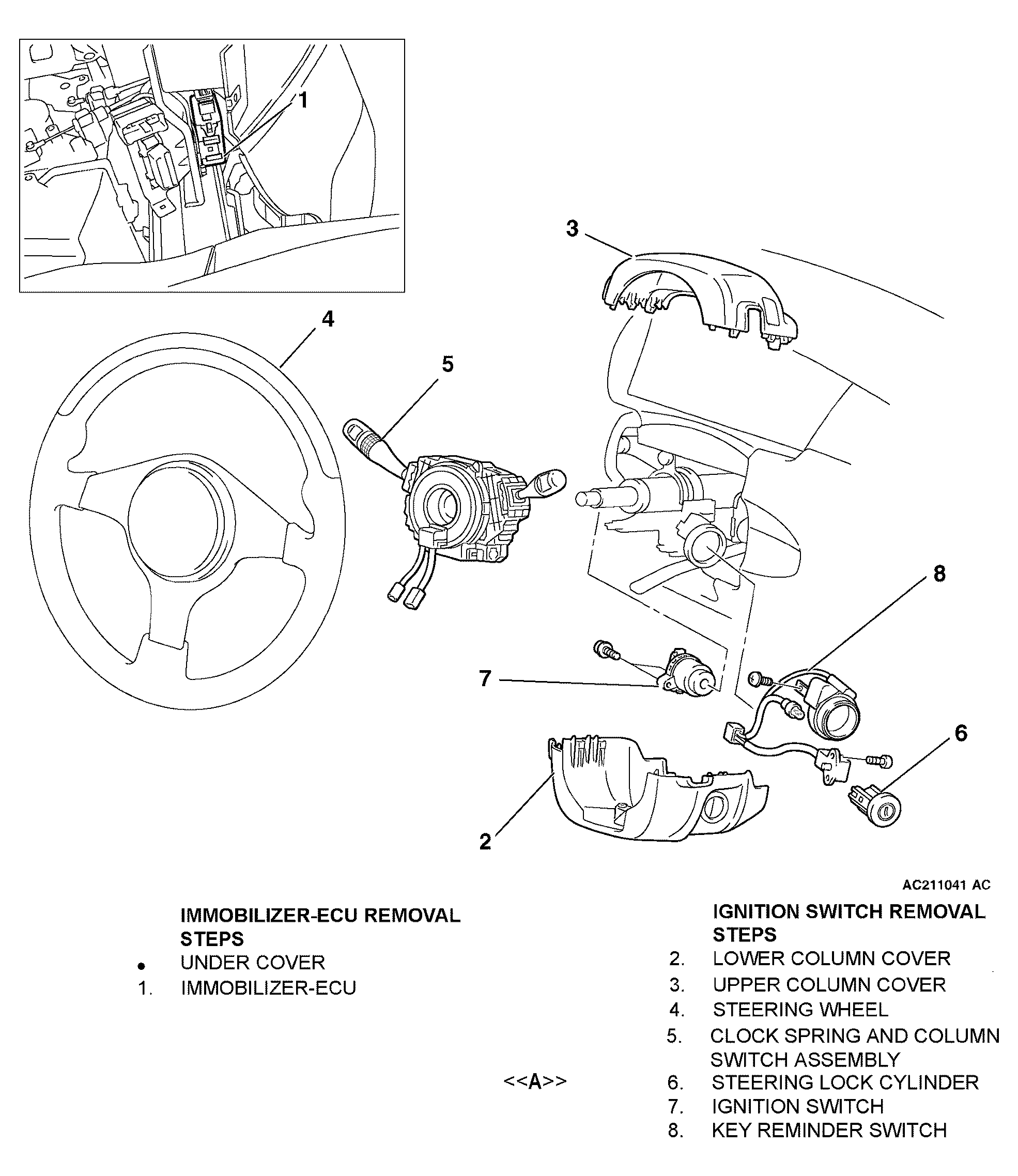

    Fig 1: Removing/Installing Ignition Switch
    G04298314Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
