Mitsubishi
>>
2006
>>
Galant LS
>>
Repair and Diagnosis
>>
Restraints
>>
Passive Restraints
>>
Interior
>>
Rear Seat Assembly
>>
Disassembly And Assembly
Disassembly And Assembly

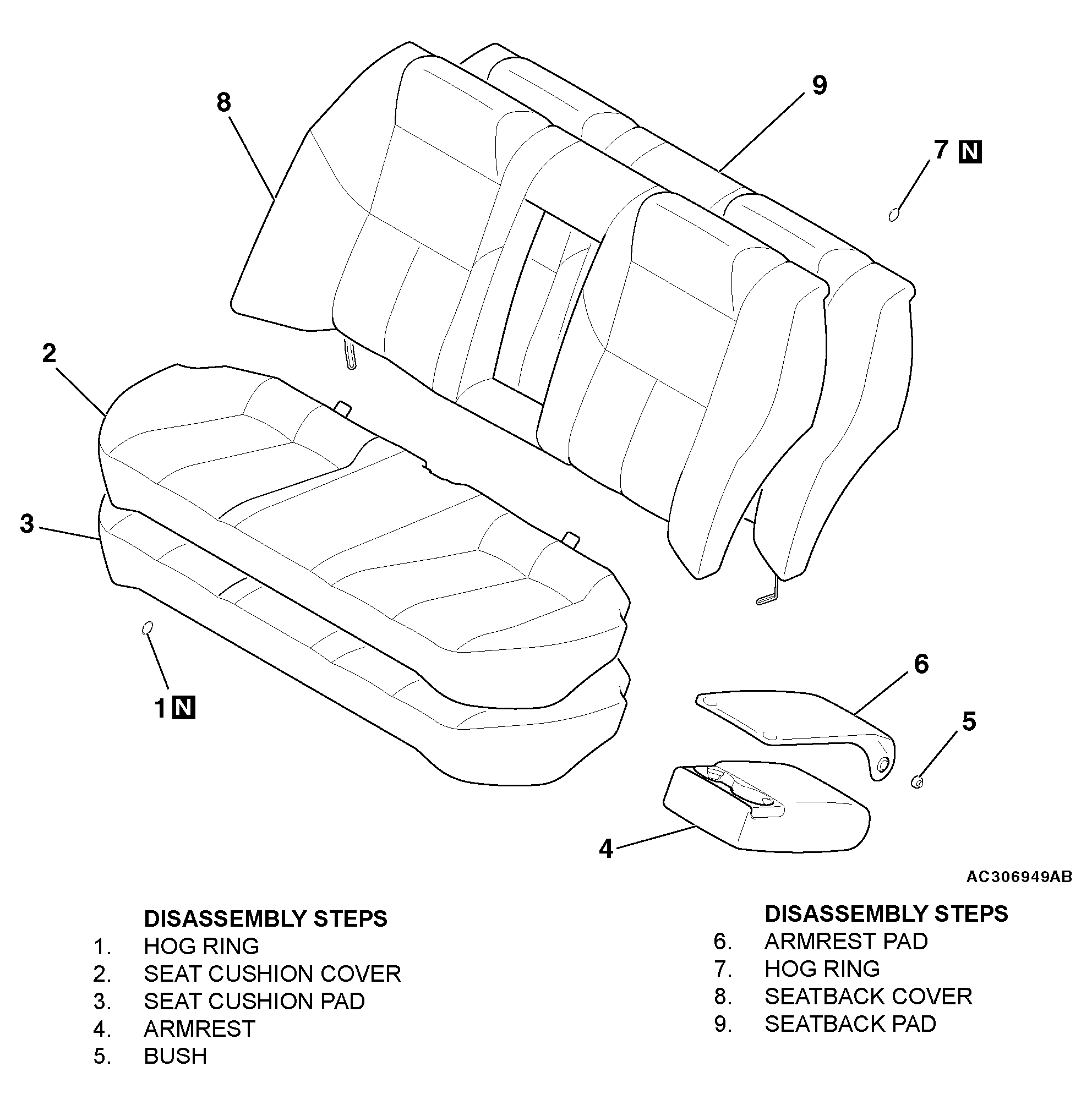

Fig 1: Disassembling/Assembling Rear Seat Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
