DTC P1571: Stoplight Switch System: Notes

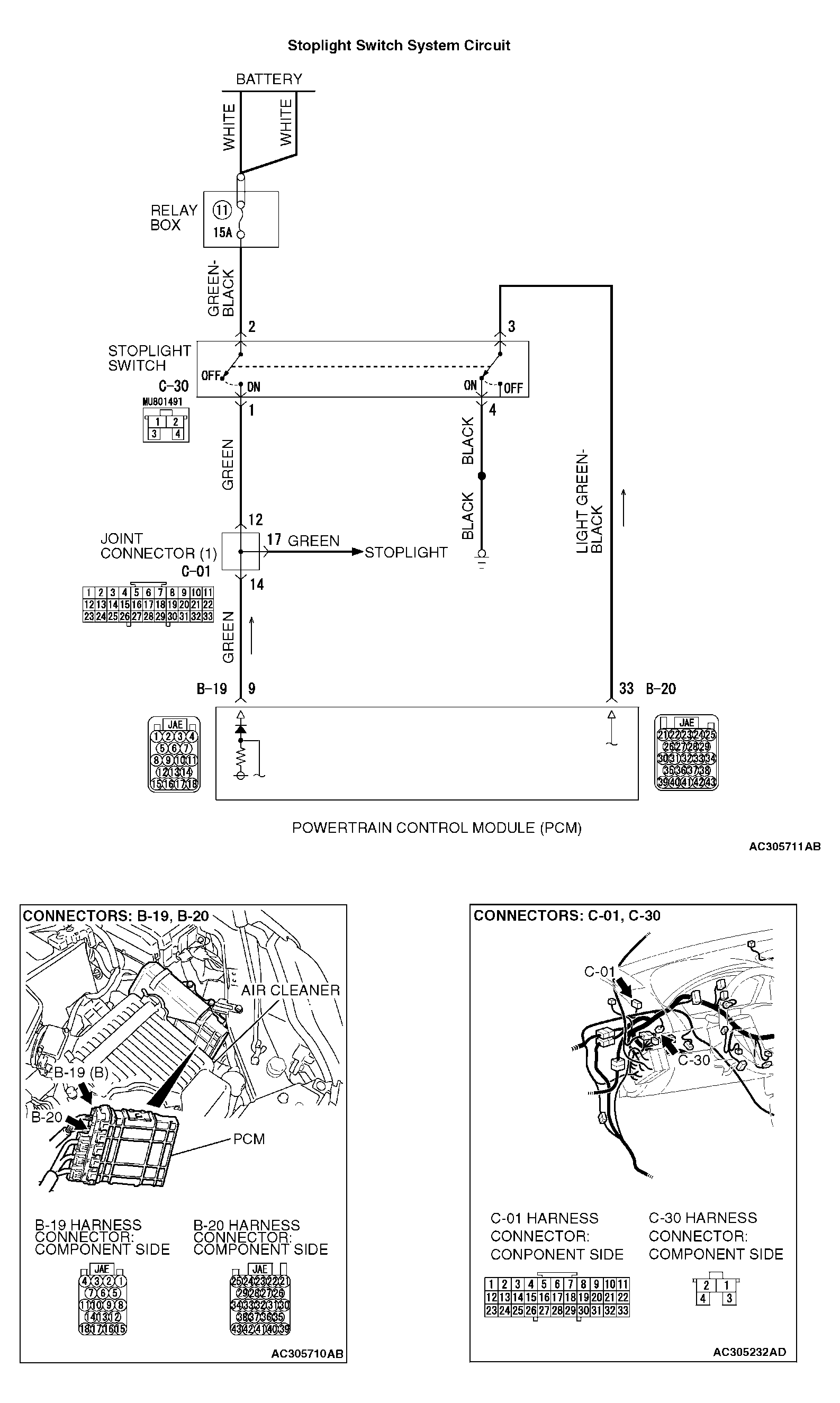

Fig 1: Stoplight Switch System Circuit Diagram
G04254076Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
