Disassembly And Assembly: Notes

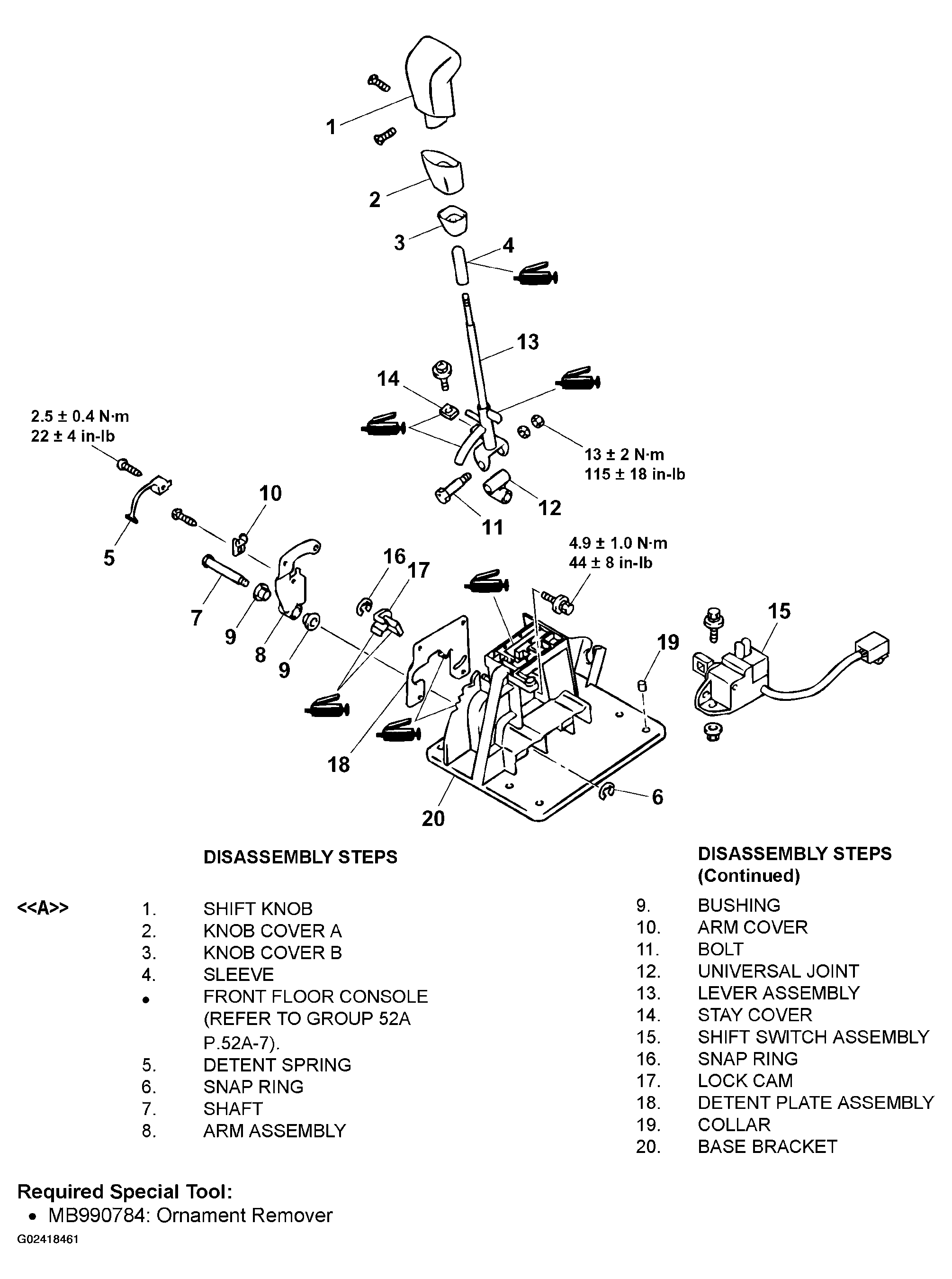

Fig 1: Exploded View Of Transfer Shift Lever
G02418461Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
