Position Indicator Light Check

  1. Remove the indicator panel (Refer to FLOOR CONSOLE ).
  2. Check that there is continuity between the following terminals:
    Fig 1: Continuity Table
    G02418447Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

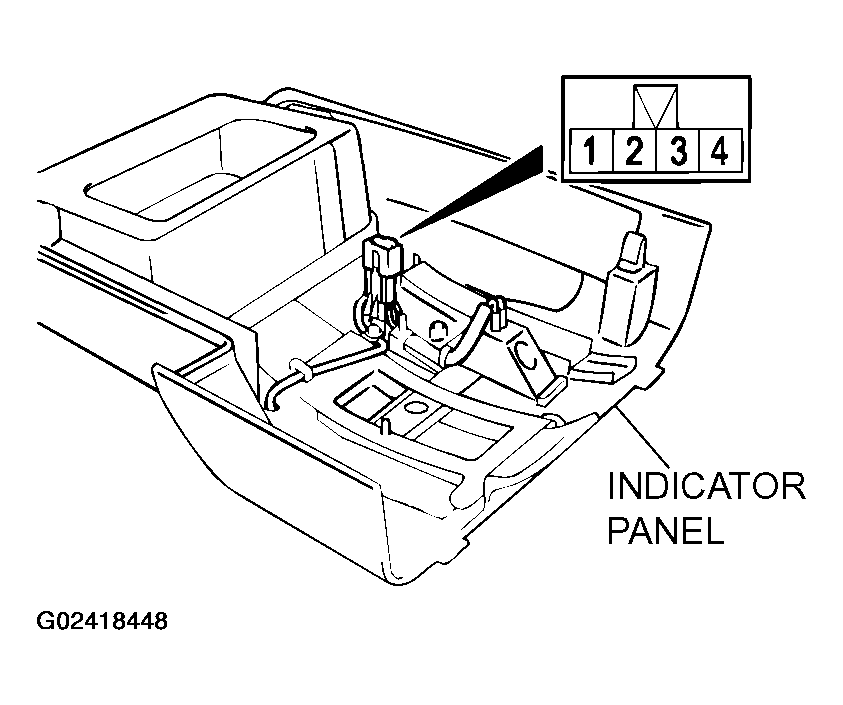

    Fig 2: Identifying Indicator Panel
    G02418448Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  3. If the continuity is incorrect, replace the position indicator light unit assembly.
