Inspection Procedure Using An Oscilloscope: Notes

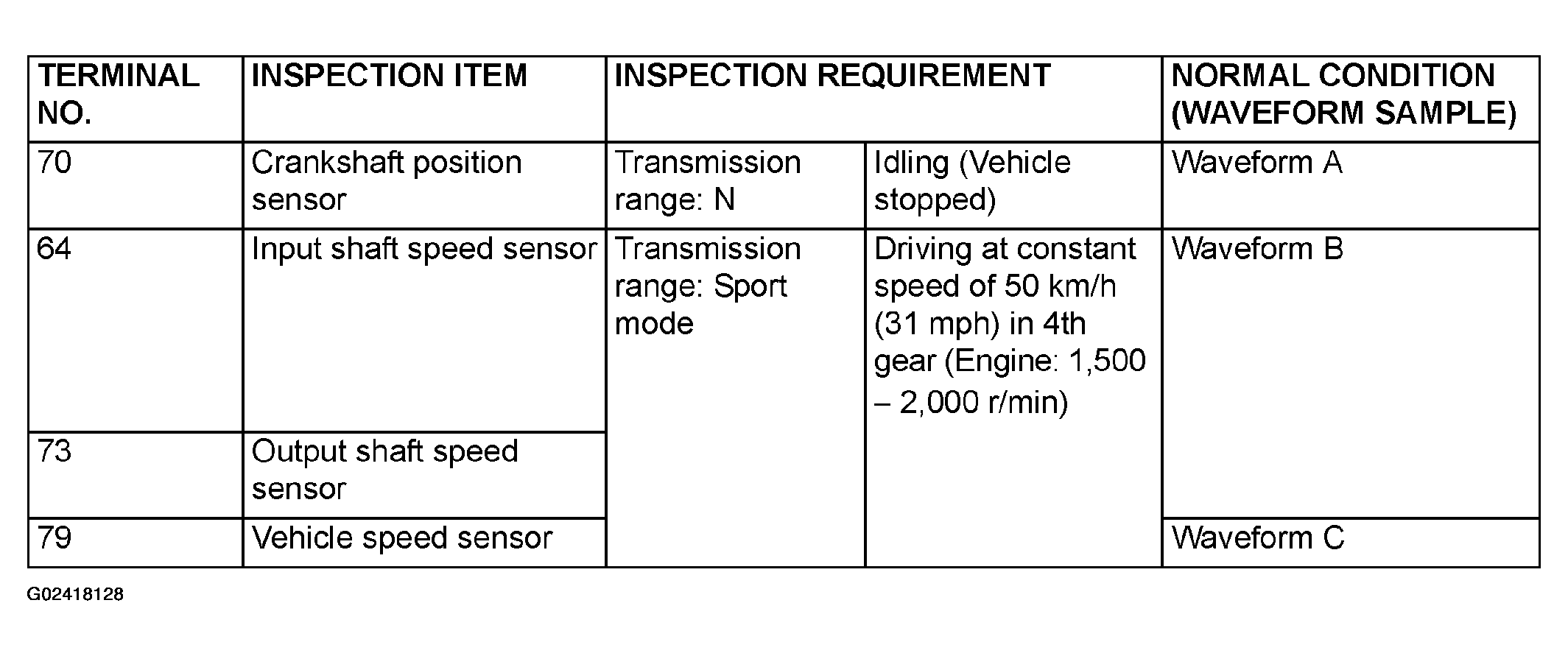

Fig 1: Inspection Procedure Chart (Using Oscilloscope) (1 Of 2)
G02418128Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

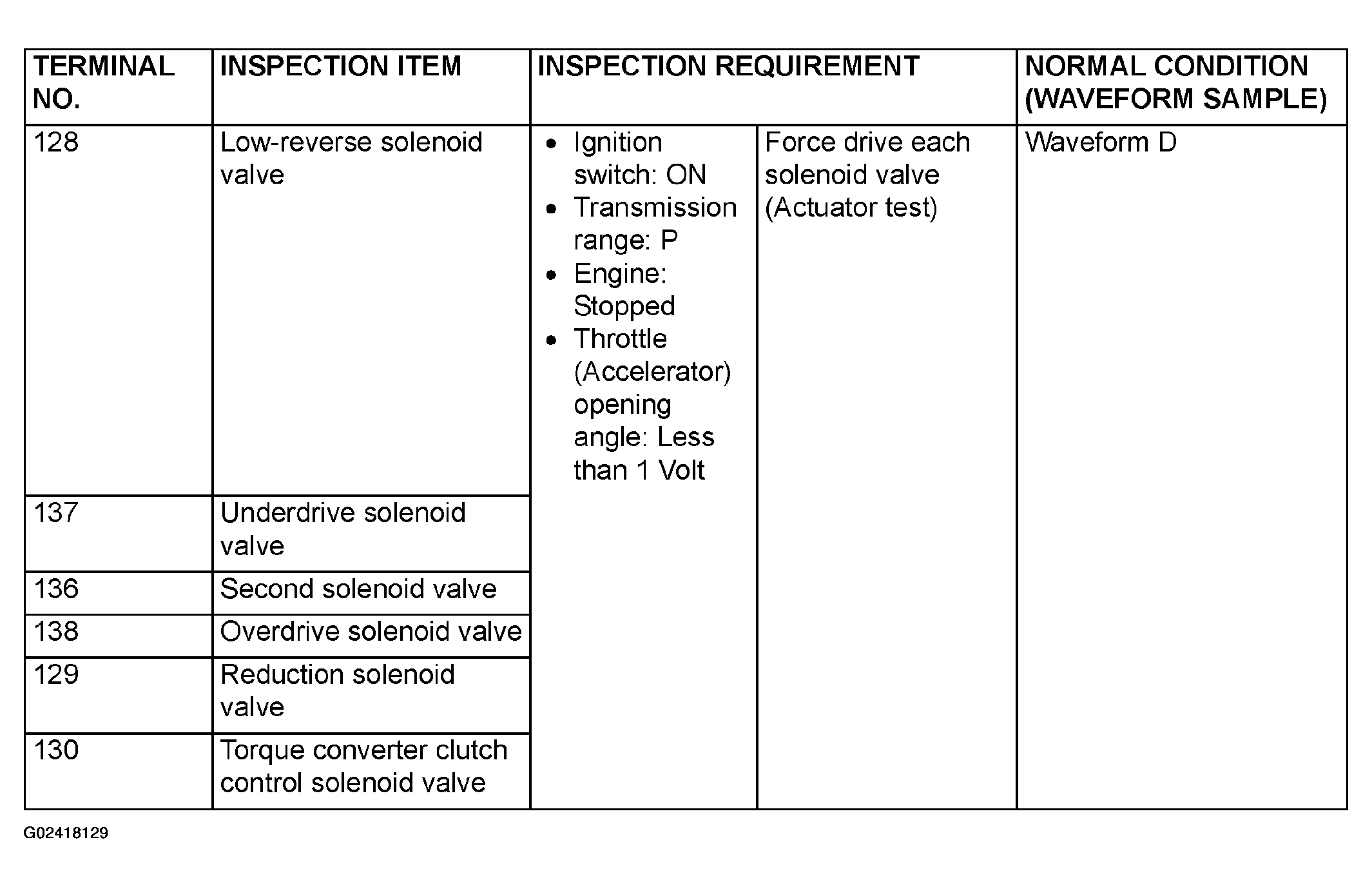

Fig 2: Inspection Procedure Chart (Using Oscilloscope) (2 Of 2)
G02418129Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
