Removal And Installation: Notes

WARNING: When removing and installing the shift lock cable unit, be careful not to hit the SRS-ECU.

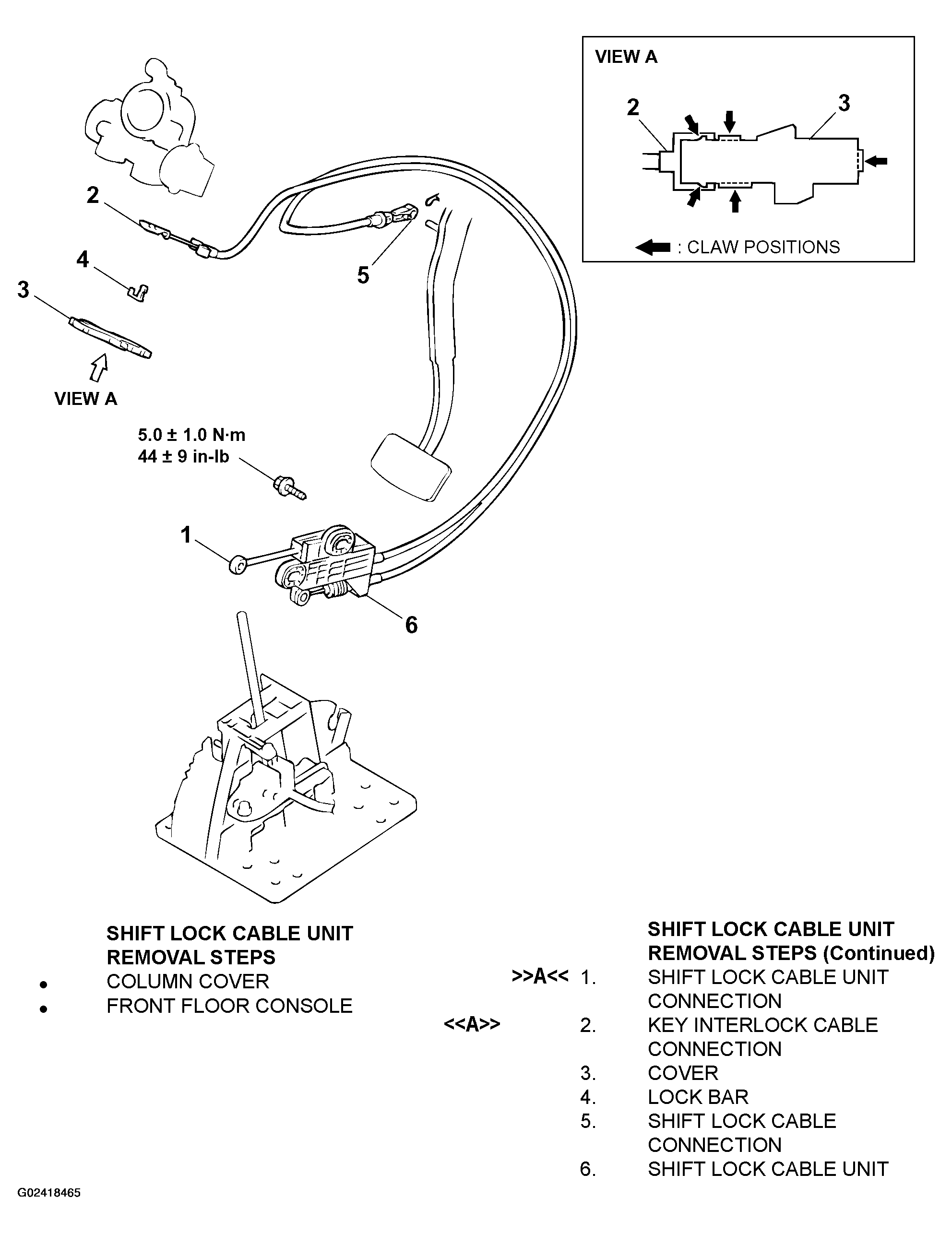

Fig 1: Removing/Installing A/T Key Interlock And Shift Lock Mechanisms
G02418465Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
