Removal And Installation: Notes

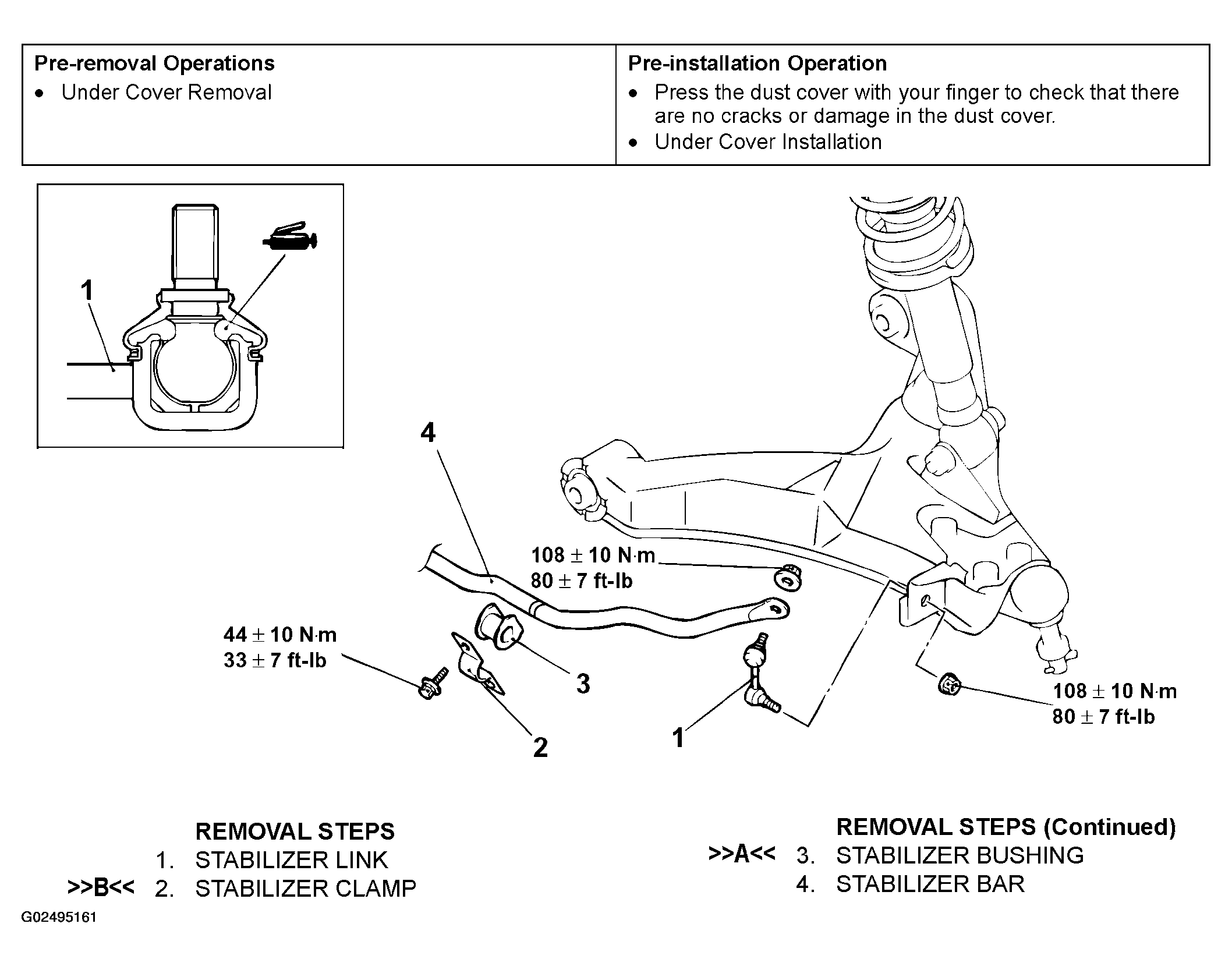

Fig 1: Identifying Stabilizer Bar Components

G02495161

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
