Removal And Installation: Notes

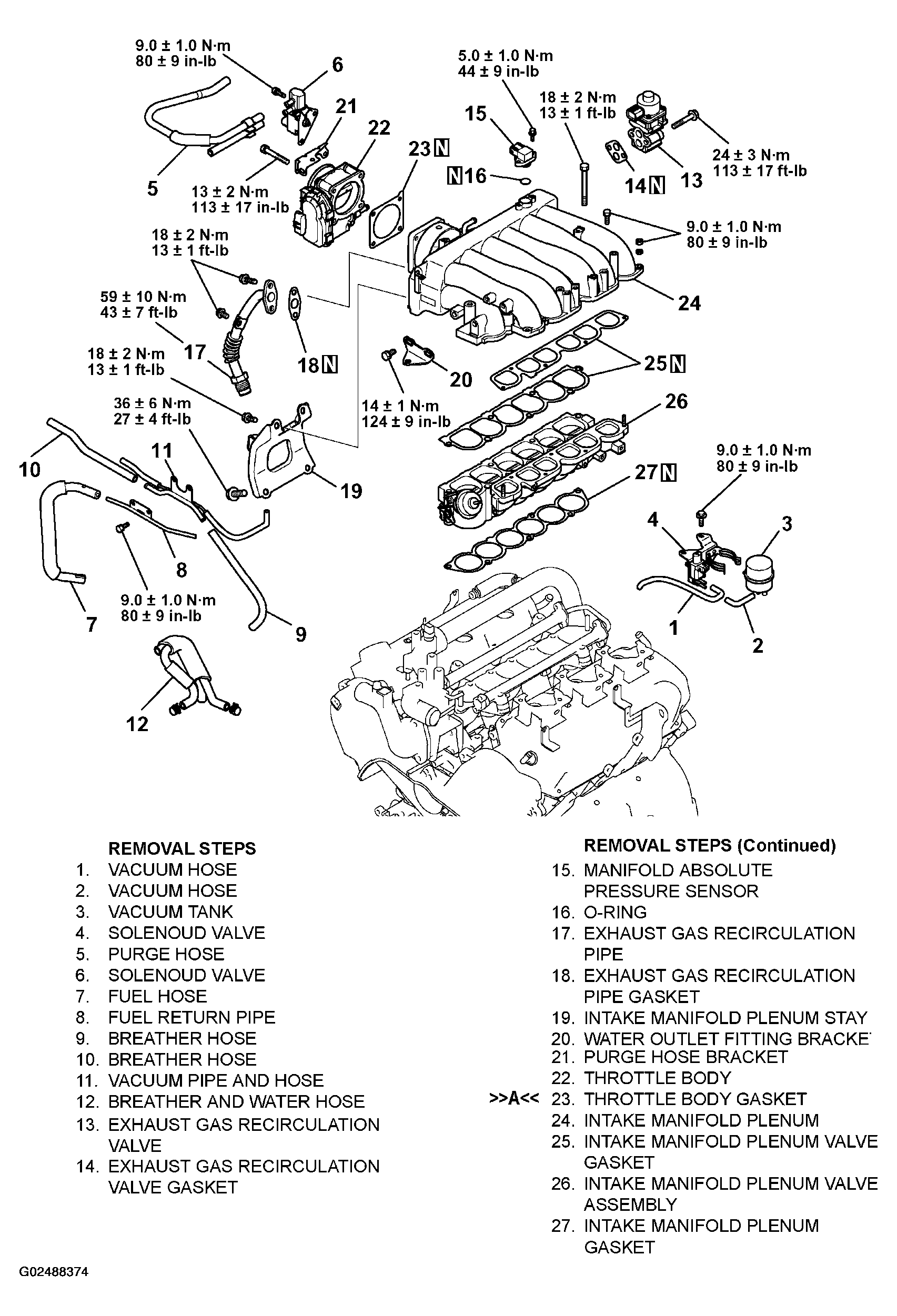

Fig 1: Exploded View And Torque Specification Of Intake Manifold Plenum And Throttle Body Assembly
G02488374Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
