Abs Valve Relay Check

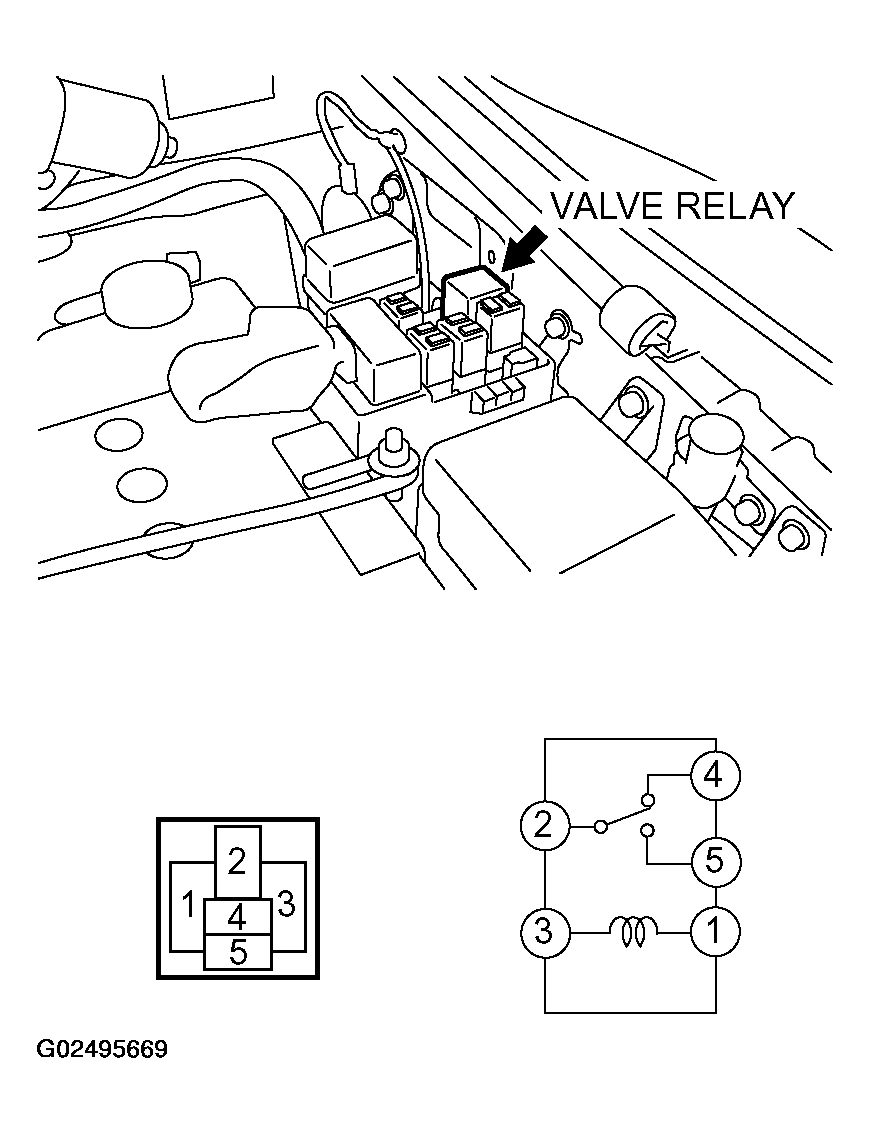

Fig 1: Identifying Valve Relay
G02495668Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

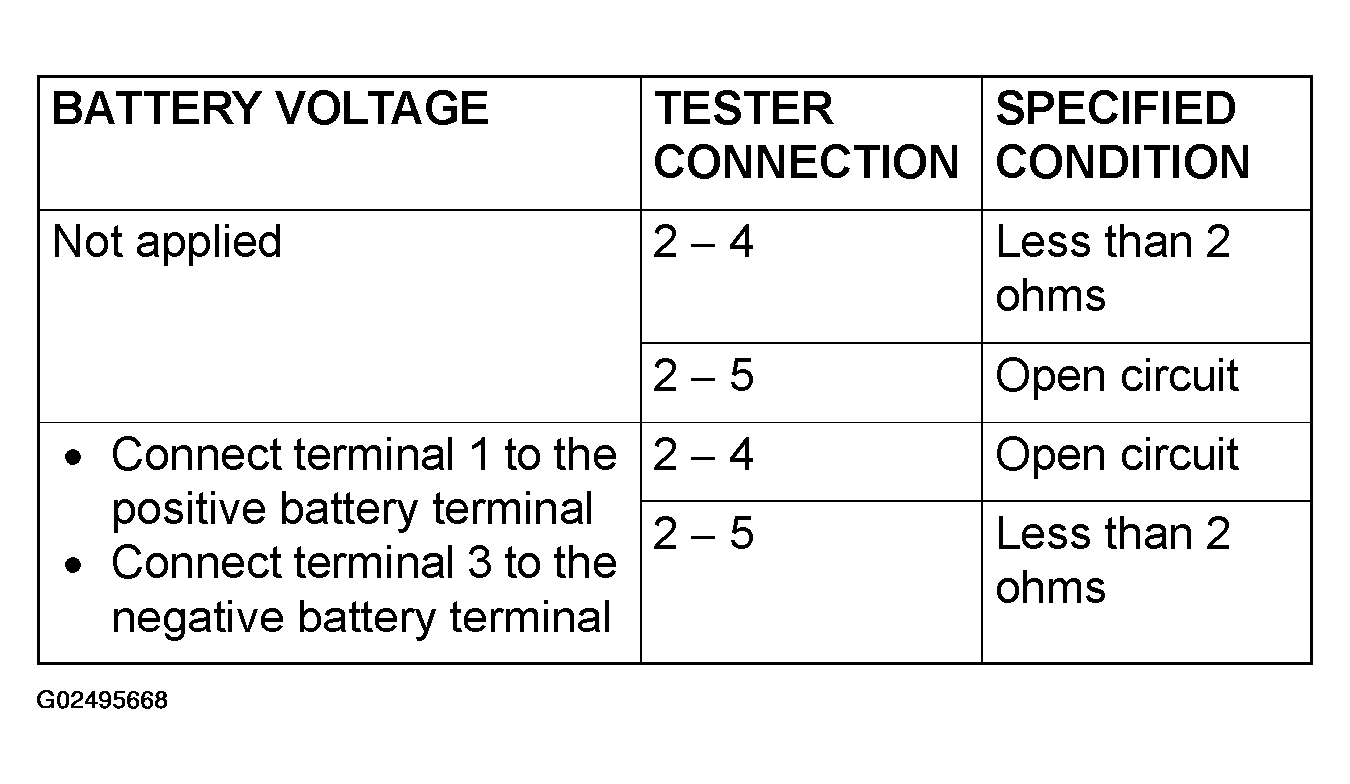

Fig 2: Battery Voltage Tester Connection Specified Condition
G02495669Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
