INSPECTION PROCEDURE 5: Combination Meter does not Work.: Notes

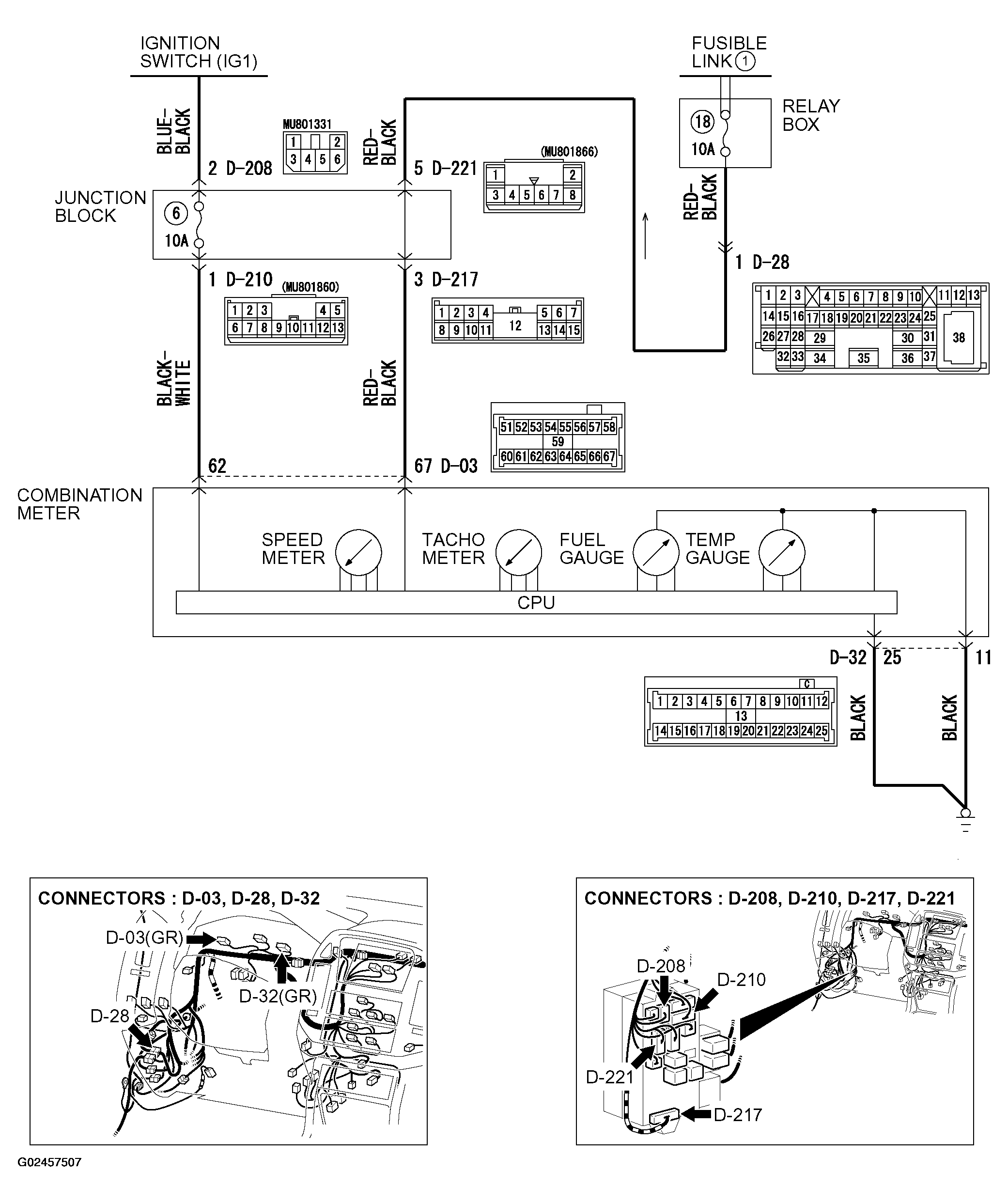

Fig 1: Combination Meter Power Supply Circuit Diagram

G02457507

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
