INSPECTION PROCEDURE 1: Speedometer does not Work.: Notes

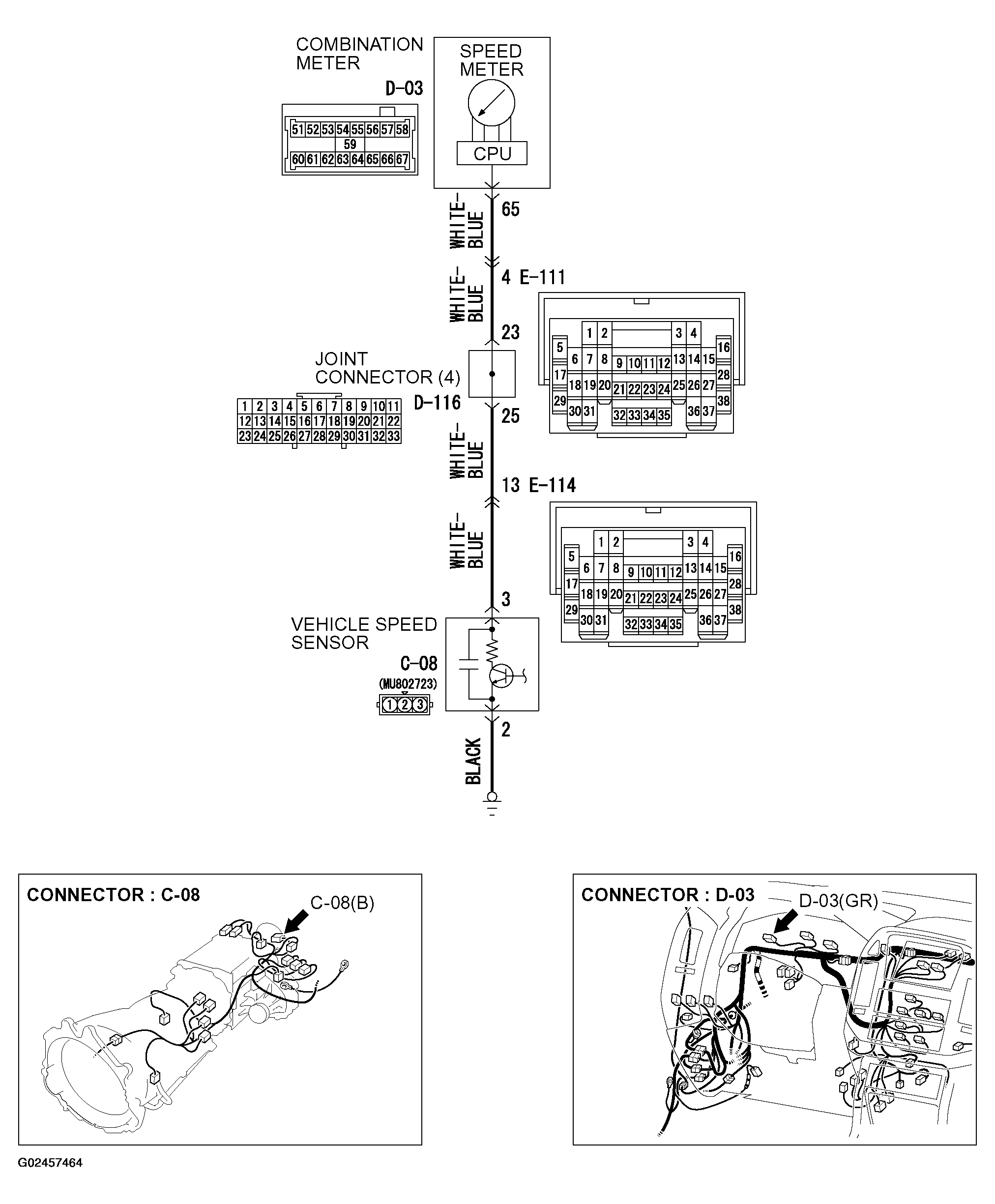

Fig 1: Speedometer Circuit Diagram (1 Of 2)
G02457464Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

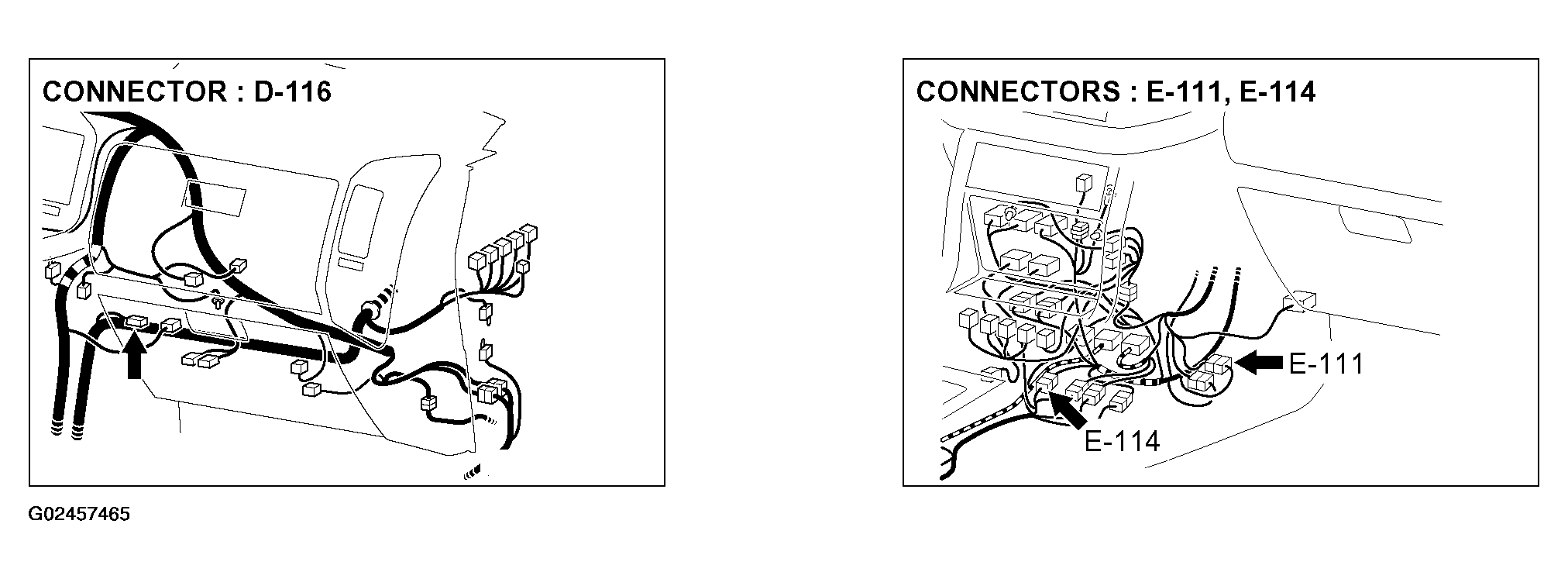

Fig 2: Speedometer Circuit Diagram (2 Of 2)
G02457465Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
