Accessory Socket Relay Continuity Check

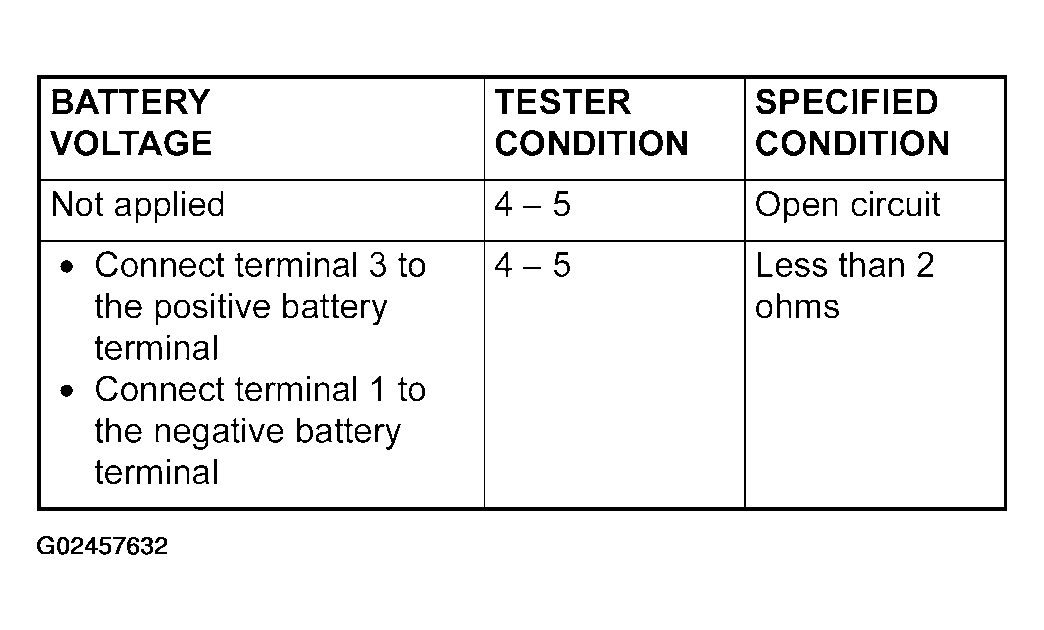

Fig 1: Accessory Socket Relay Continuity Table
G02457632Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

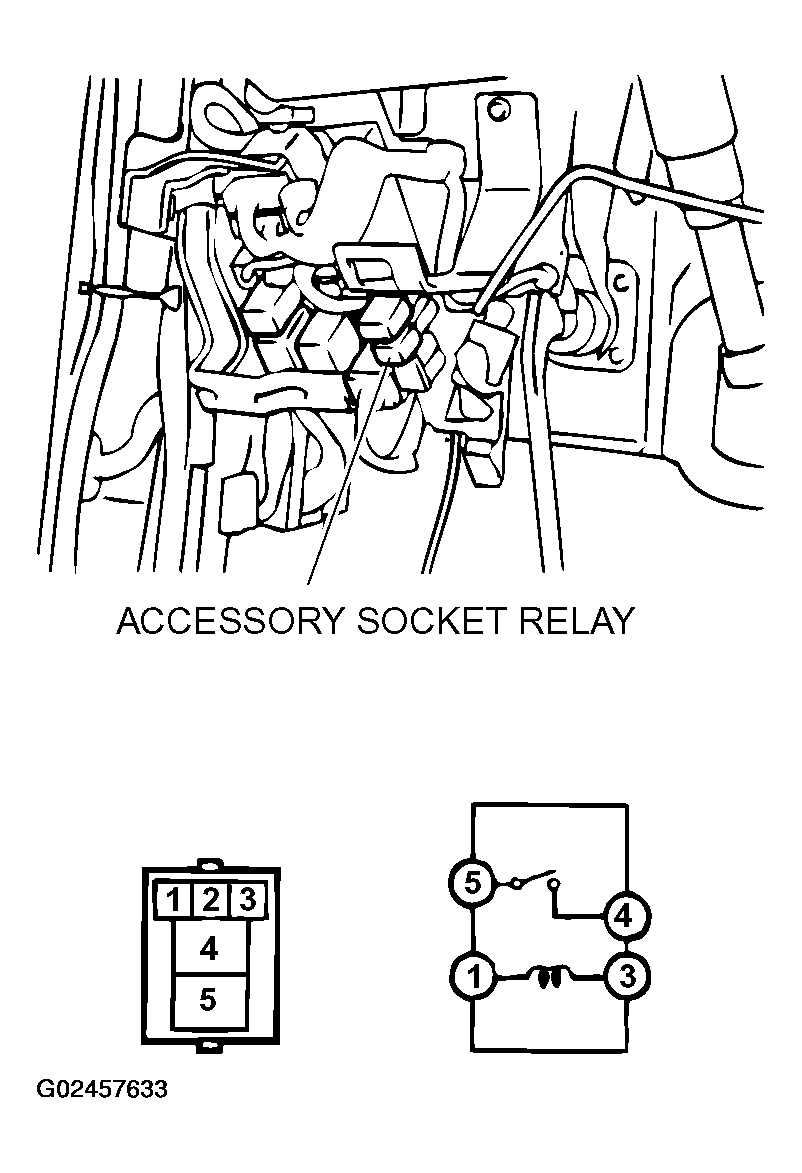

Fig 2: Identifying Accessory Socket Relay
G02457633Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
