Removal And Installation

CAUTION: SRS: Before removing and installing the seat belts with pre-tensioner, refer to SEAT BELTS WITH PRE-TENSIONER .

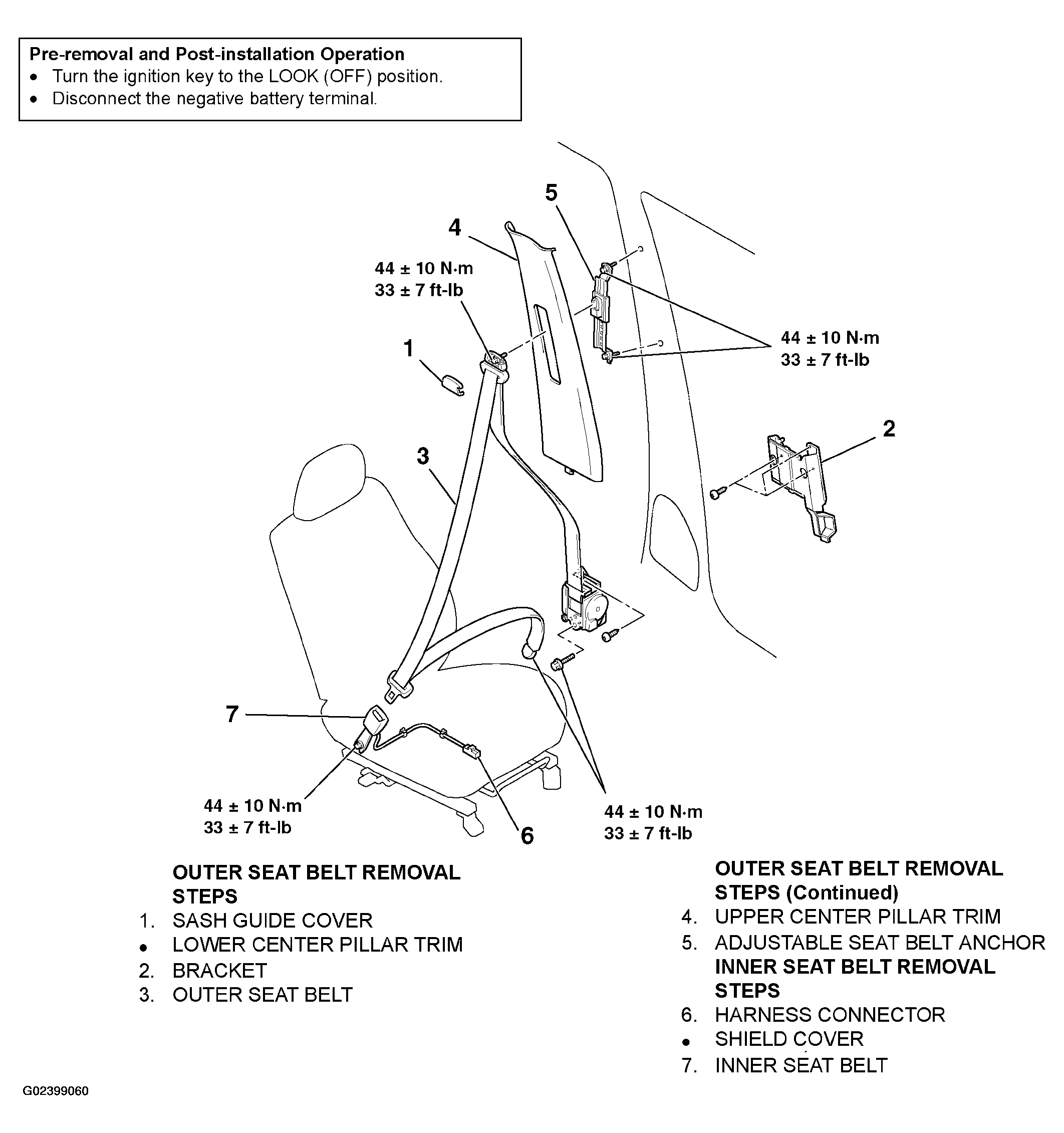

Fig 1: Exploded View Of Front Seat Belt
G02399060Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
