Removal And Installation

CAUTION: If the vehicle is equipped with the Brembo(tm) disc brake, during maintenance, take care not to contact the parts or tools to the caliper because the paint of caliper will be scratched.

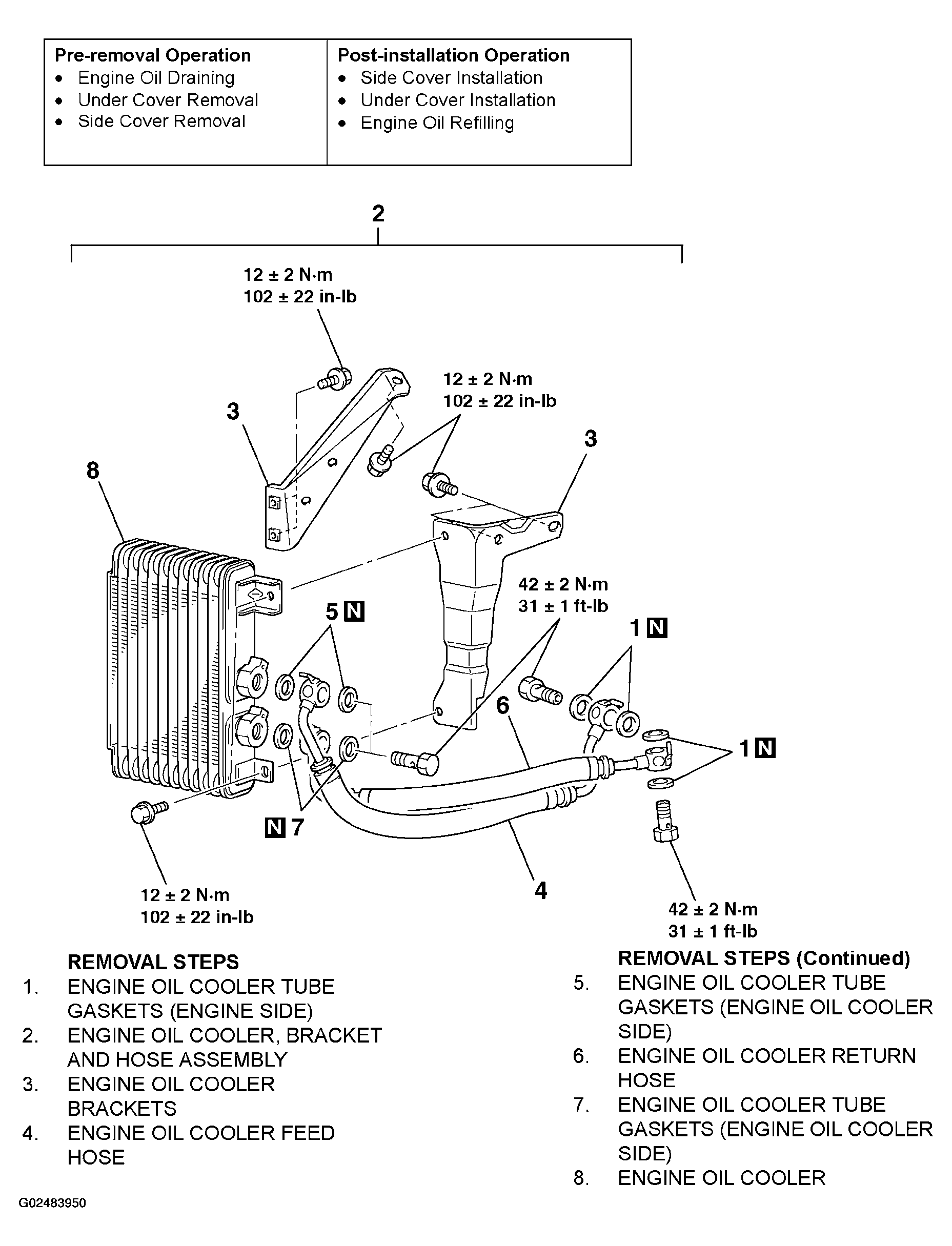

Fig 1: Installing Engine Oil Cooler Components
G02483950Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
