A/T Control Component Layout

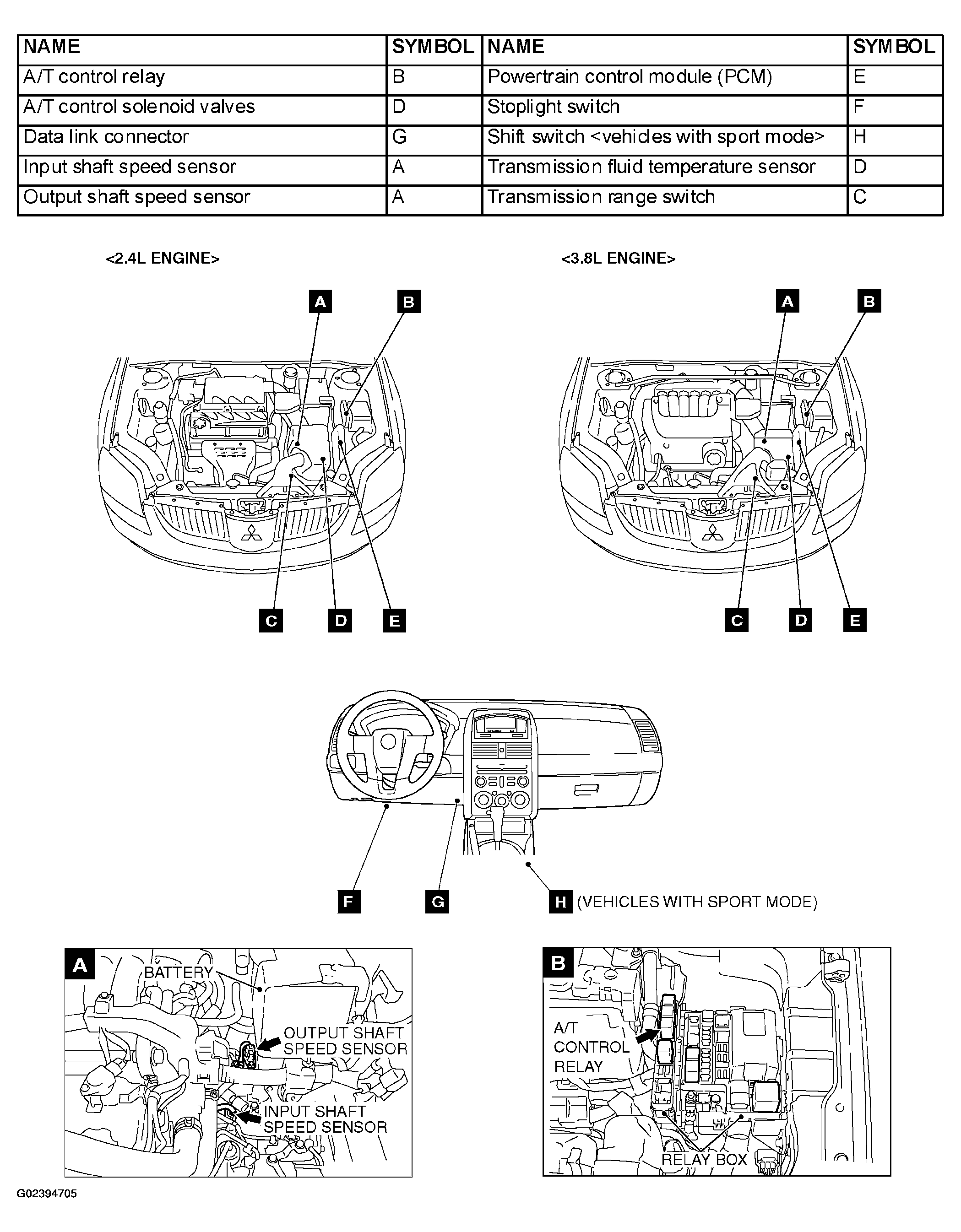

Fig 1: Identifying A/T Control Component Layout (1 Of 2)
G02394705Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

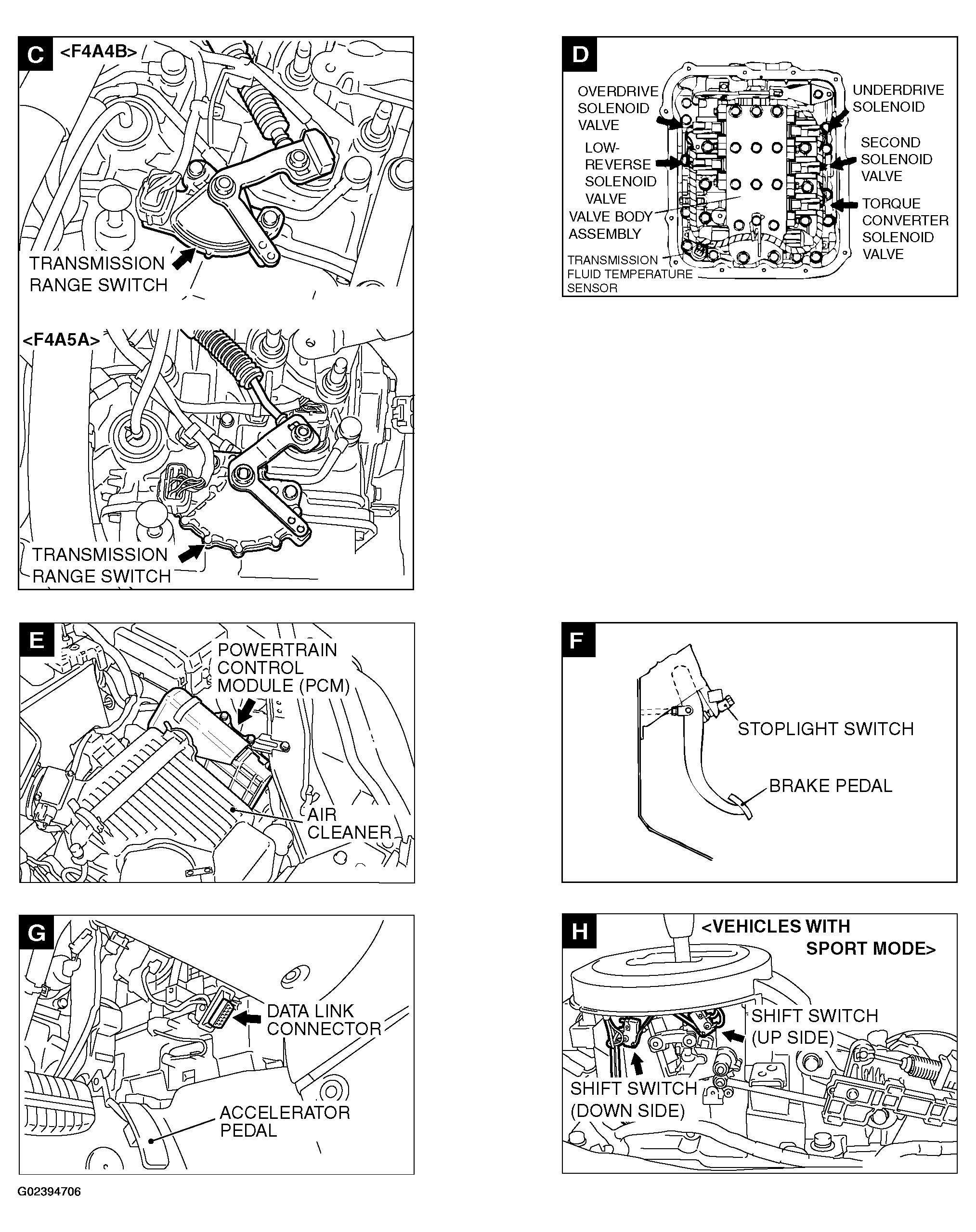

Fig 2: Identifying A/T Control Component Layout (2 Of 2)
G02394706Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
