Automatic Trans: Diagnosis: General Description: Notes

F4A4B and F4A5A models have been established.

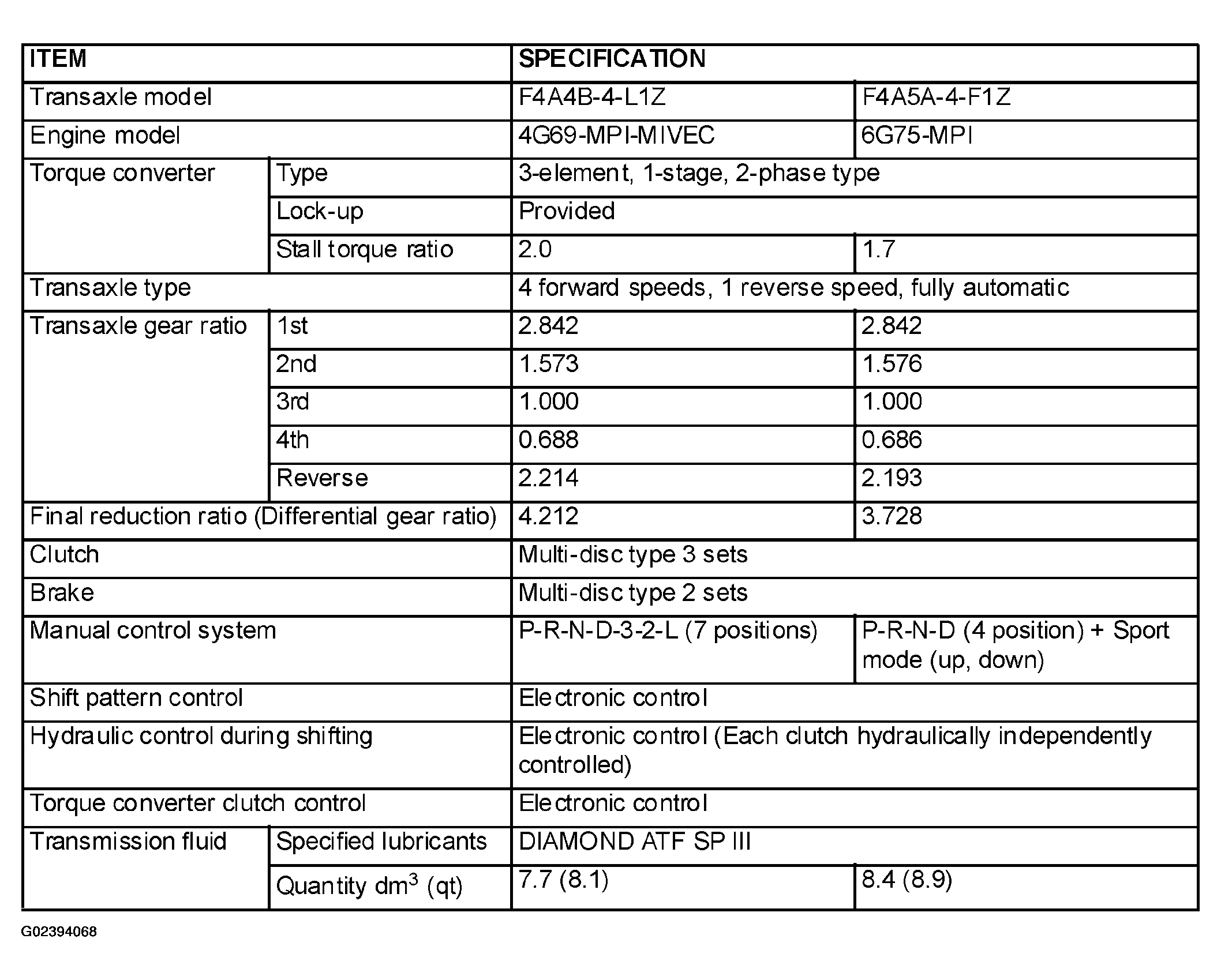

Fig 1: Automatic Transaxle Specification Chart

G02394068

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
