INSPECTION PROCEDURE 15: Shift Switch Assembly System: Notes

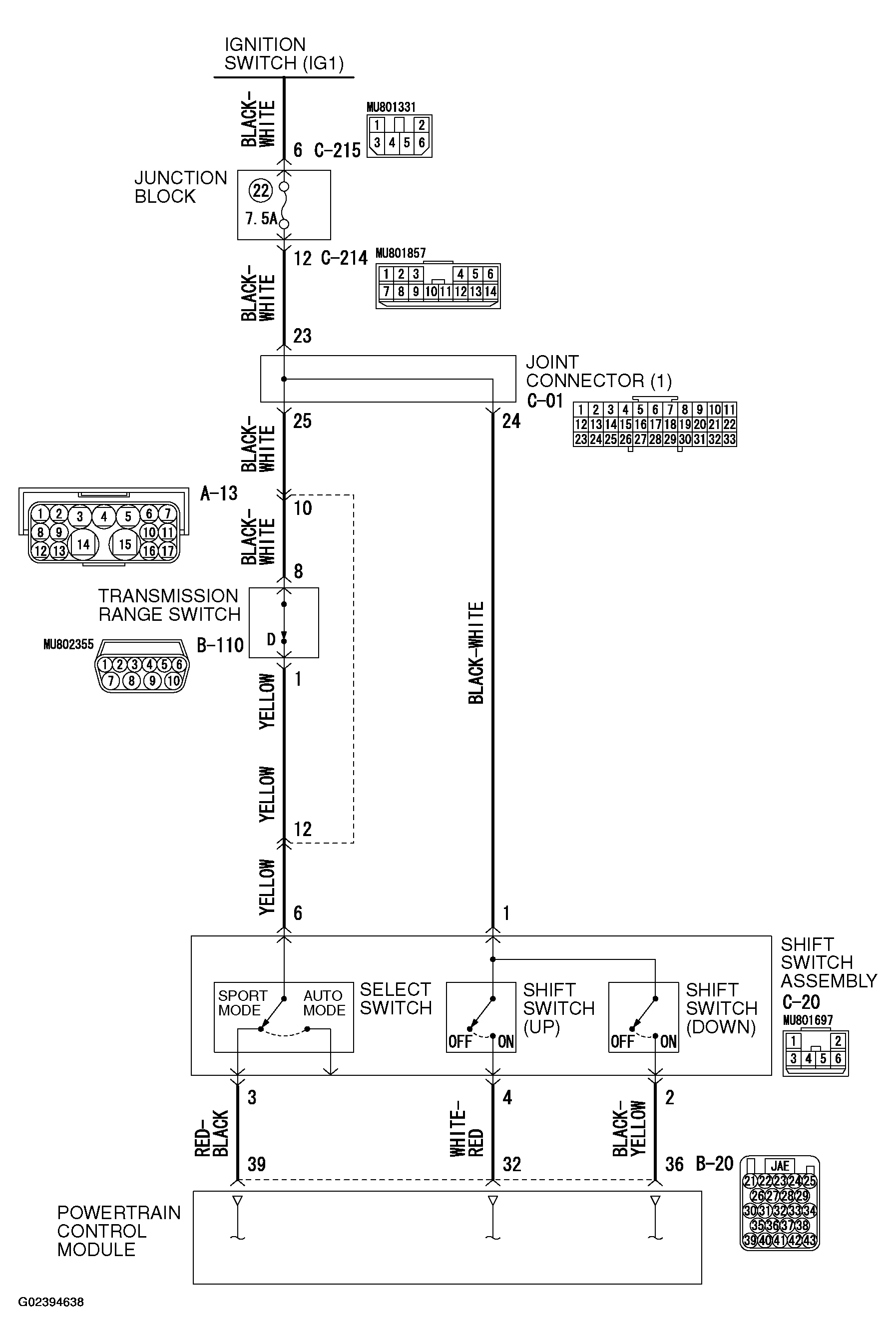

Fig 1: View Of Shift Switch Assembly System Circuit Diagram
G02394638Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

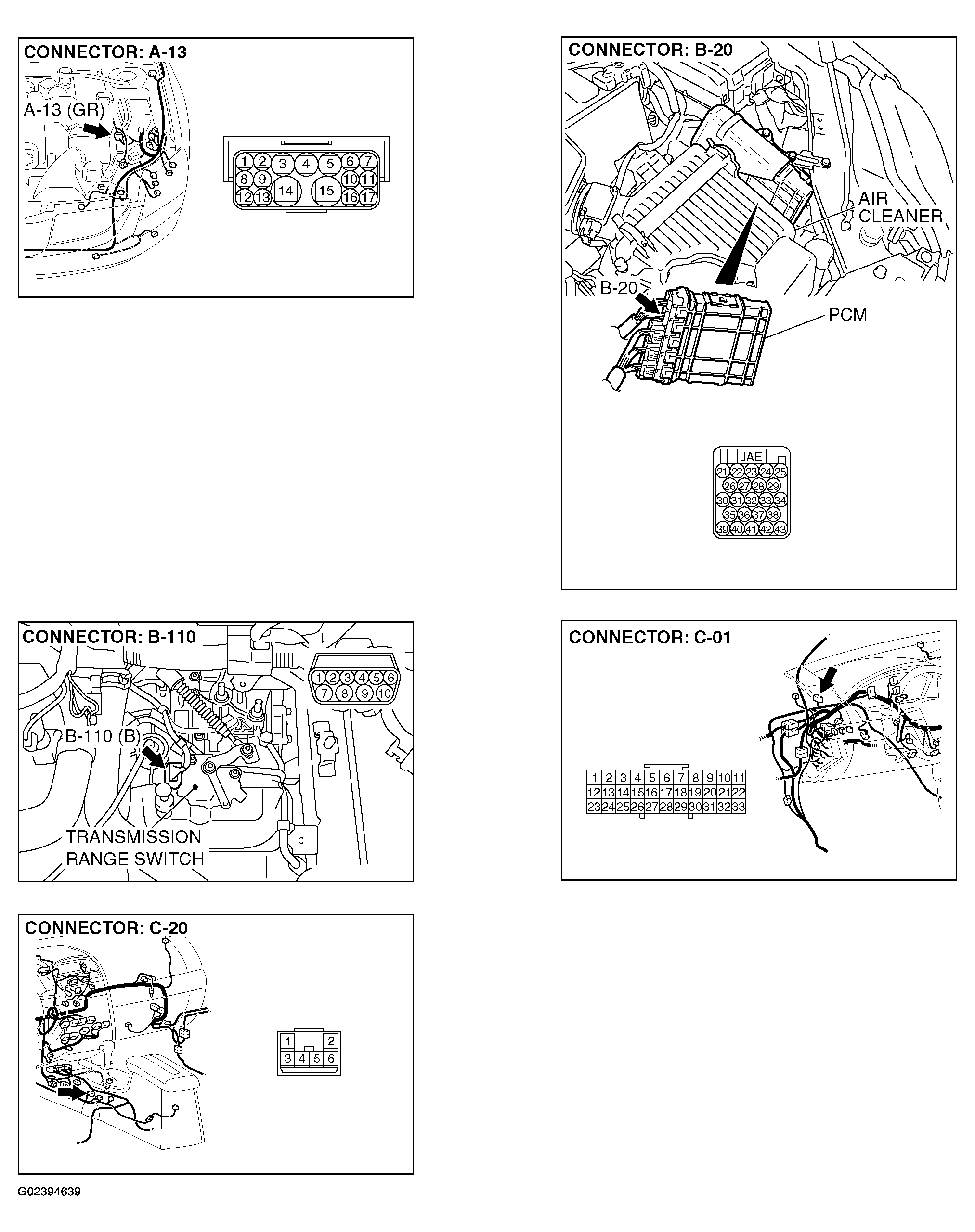

Fig 2: Identifying Shift Switch Assembly System Connectors
G02394639Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

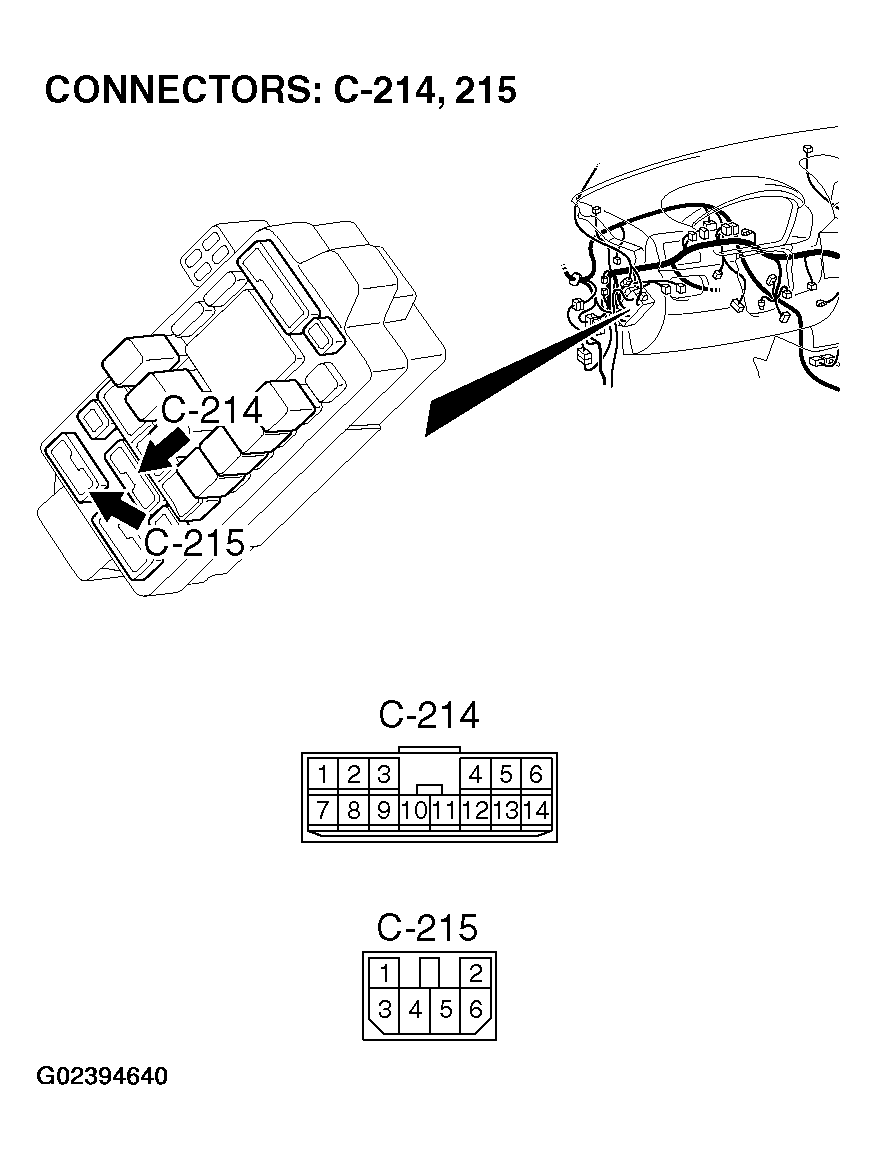

Fig 3: Locating Connectors C-214 & C-215
G02394640Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
