Home >> Mitsubishi >> 2005 >> Galant LS >> Repair and Diagnosis >> Restraints >> Passive Restraints >> Interior >> Rear Seat Assembly >> Removal And Installation >> Notes

Removal And Installation: Notes

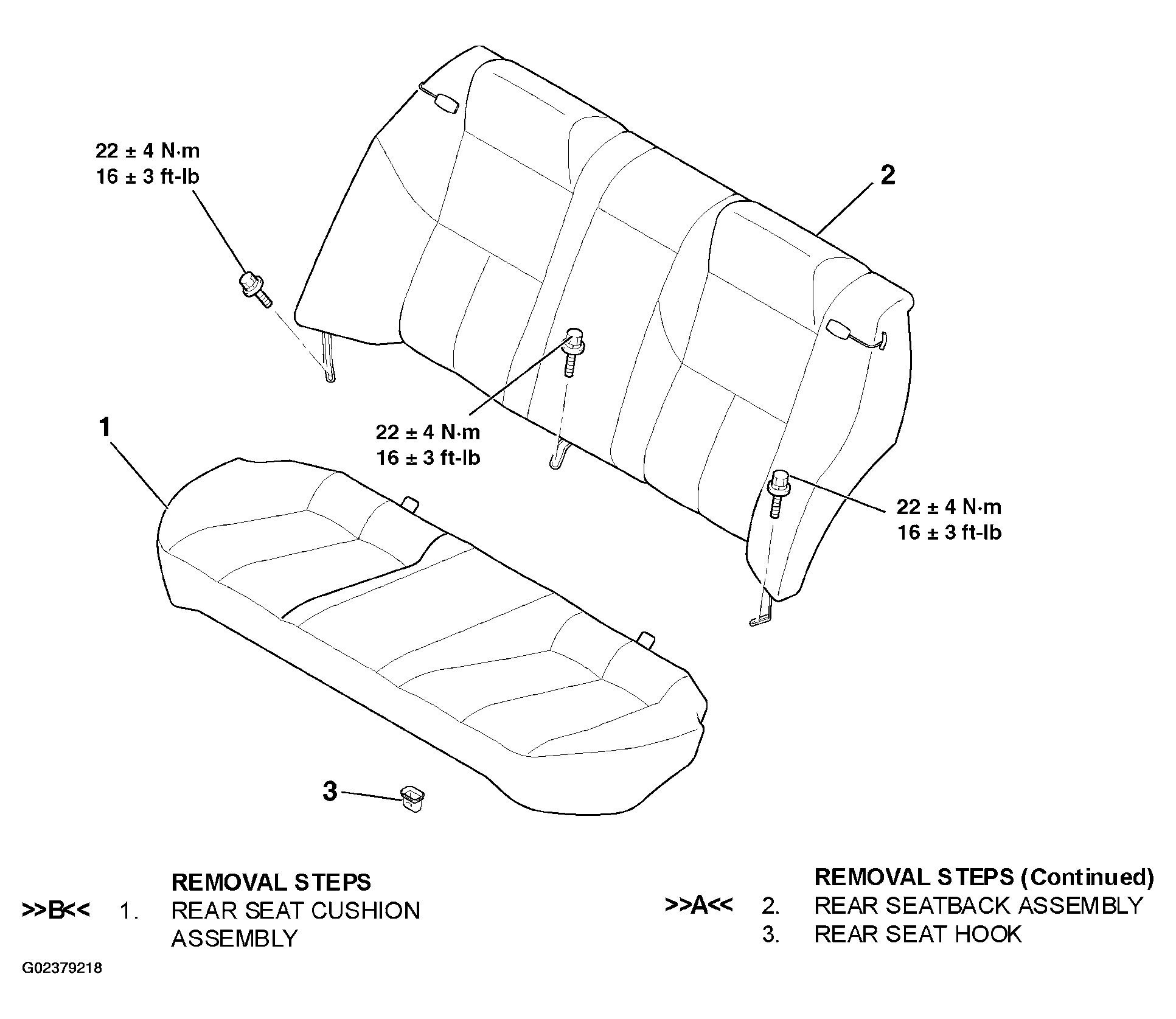

Fig 1: Exploded View Of Rear Seat Assembly

G02379218

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
