DTC 22: Stoplight Switch System: Notes

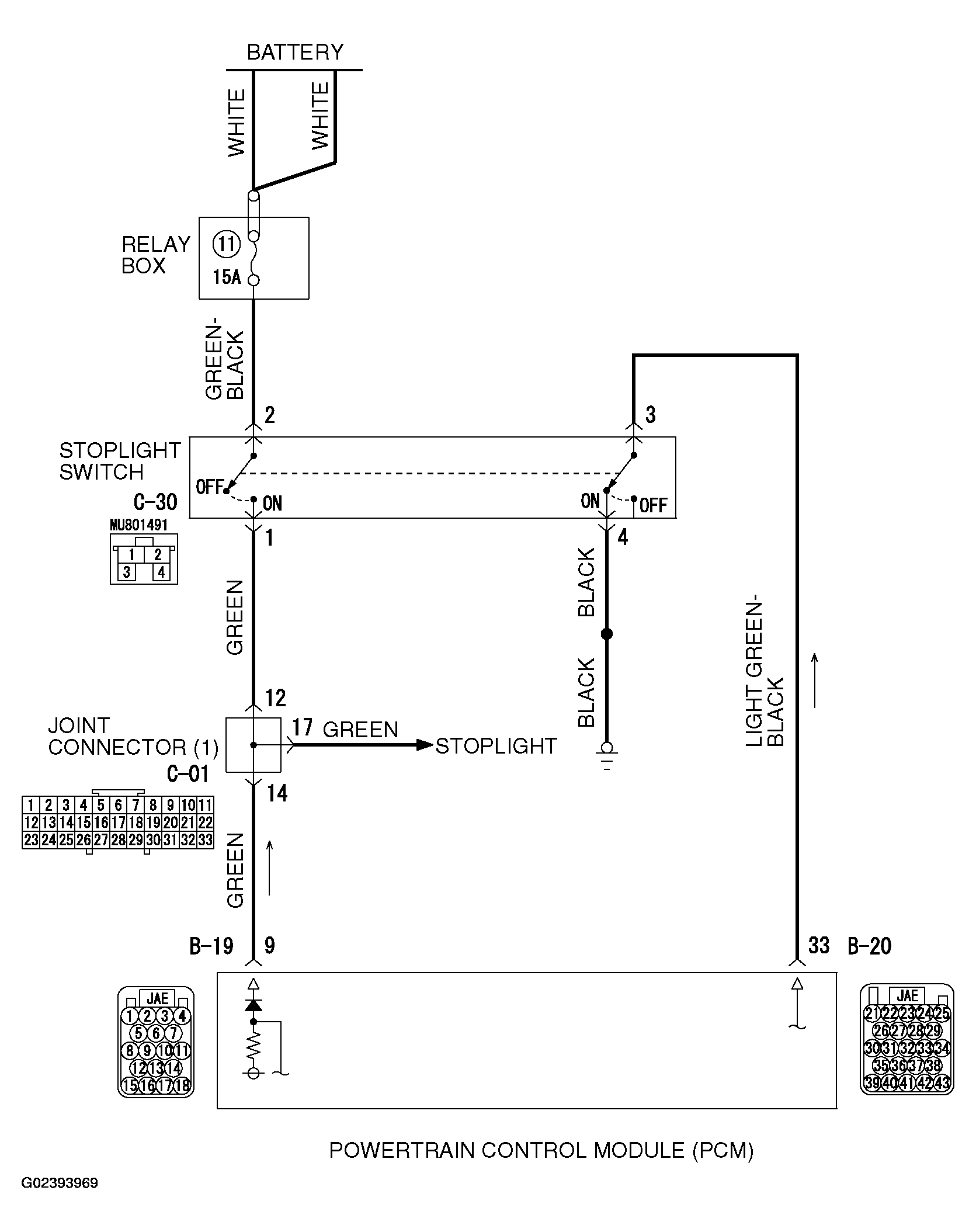

Fig 1: Stoplight Switch System Circuit Diagram
G02393969Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

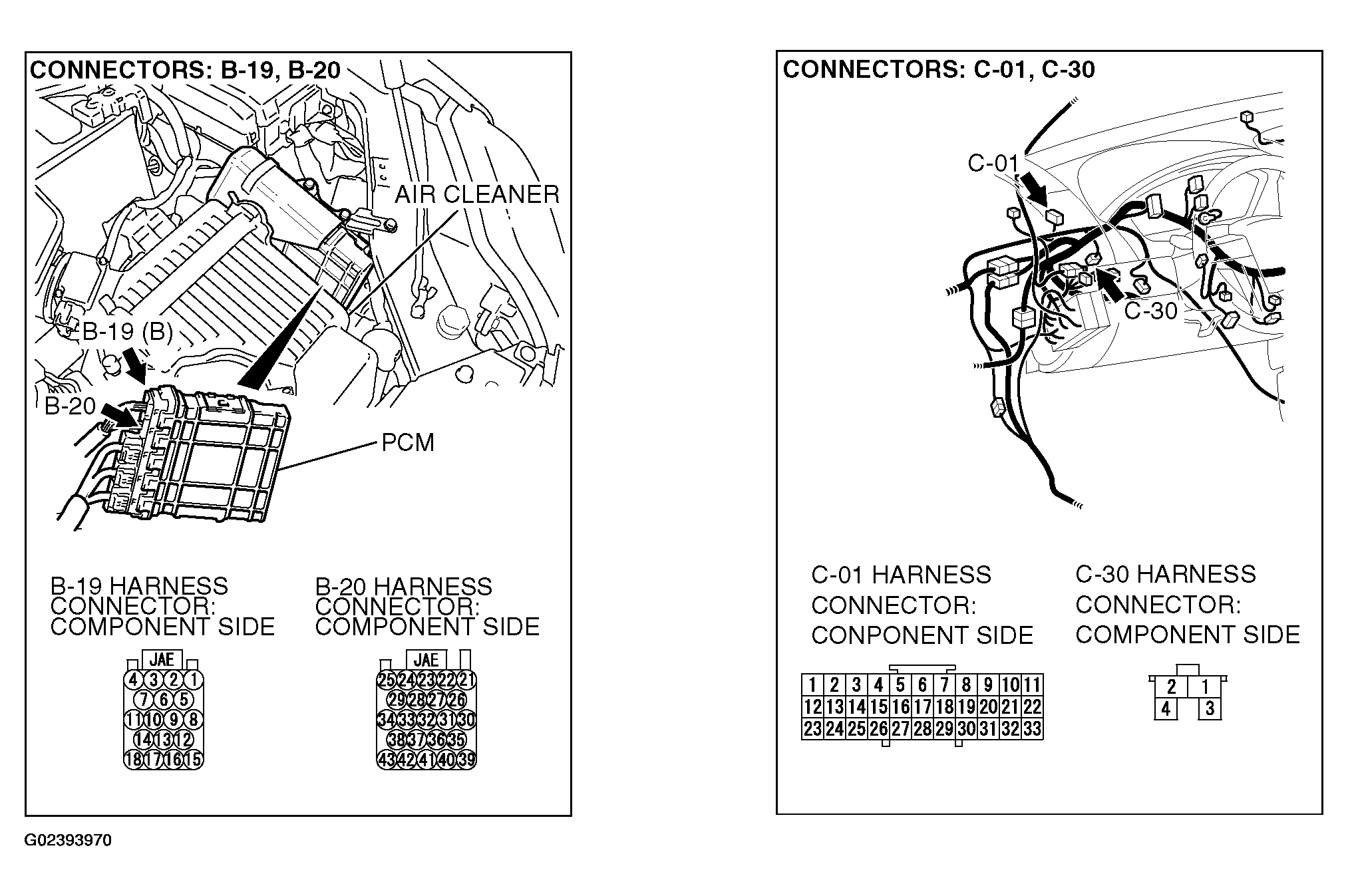

Fig 2: Locating Stoplight Switch System Connectors
G02393970Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
