Data List Reference Tables

CAUTION:

When shifting the selector lever to "D" range, apply the brakes should be applied so that the vehicle does not move forward.
Driving tests always need two persons: one driver and one observer.

NOTE: *: After the inspection is completed, disconnect the throttle position sensor connector, and then delete the diagnostic trouble code using use of scan tool MB991958. (Refer to HOW TO CONNECT THE SCAN TOOL (MUT-III). ).

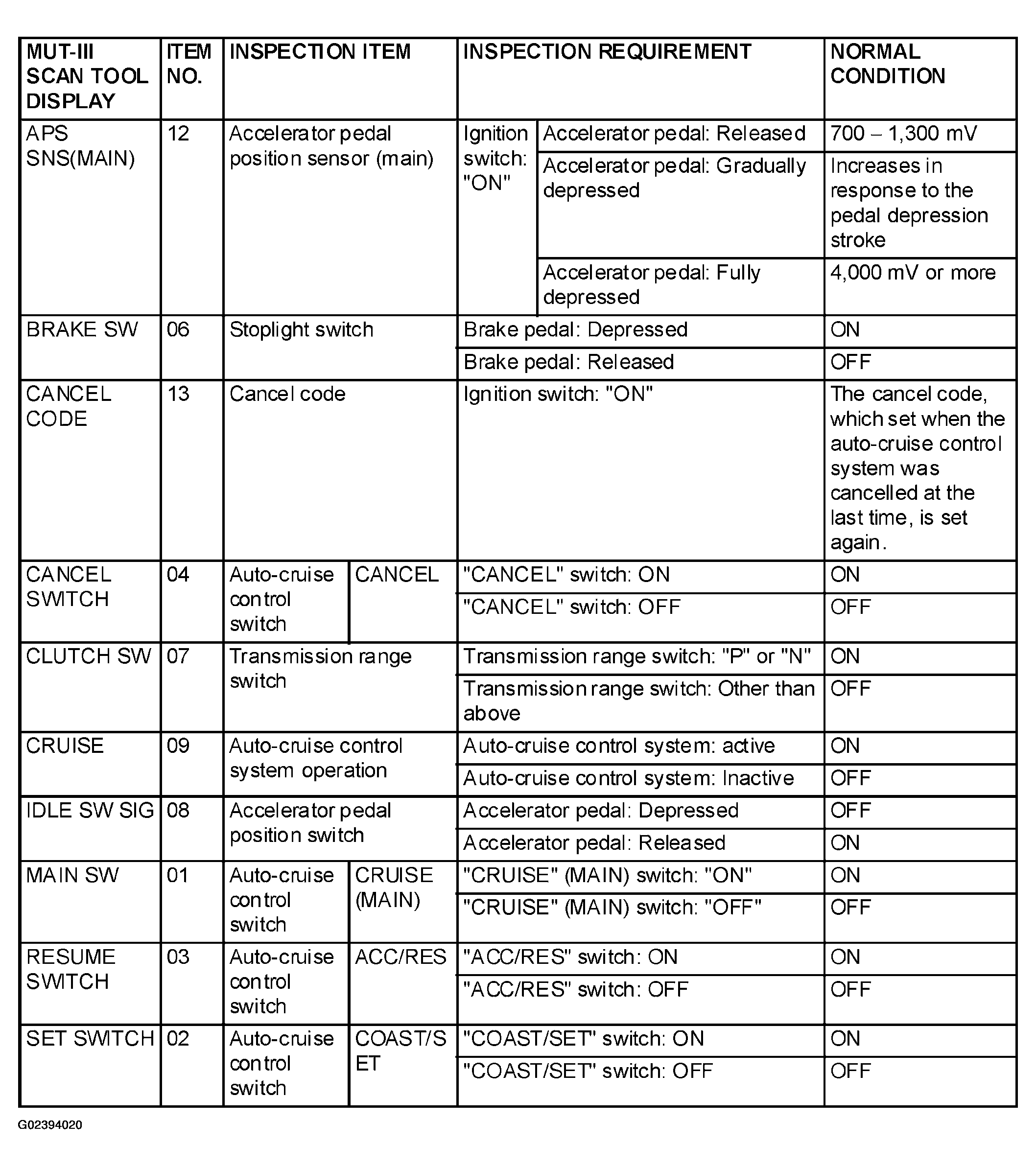

Fig 1: Data List Reference Chart (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

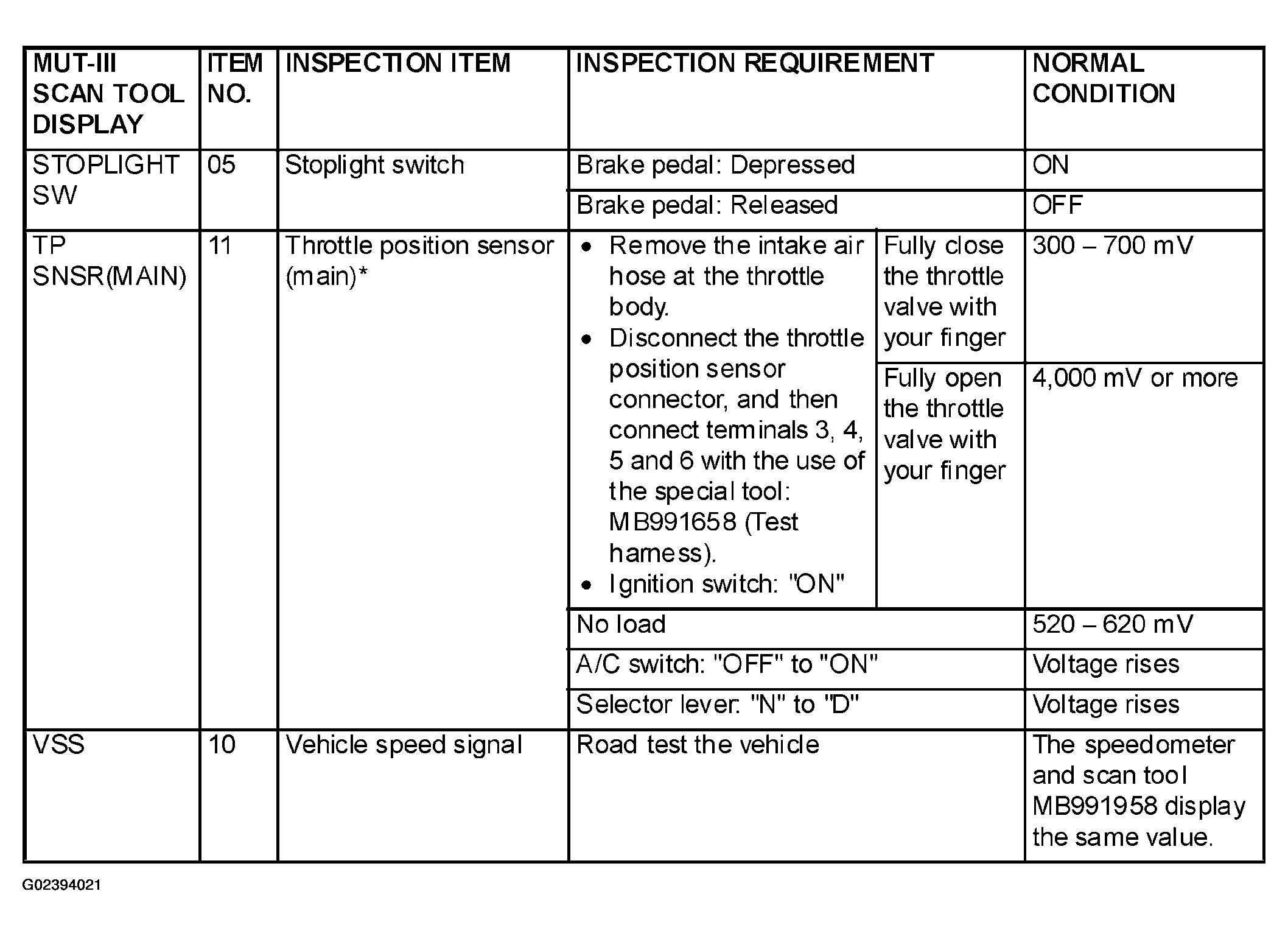

Fig 2: Data List Reference Chart (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
