Removal And Installation

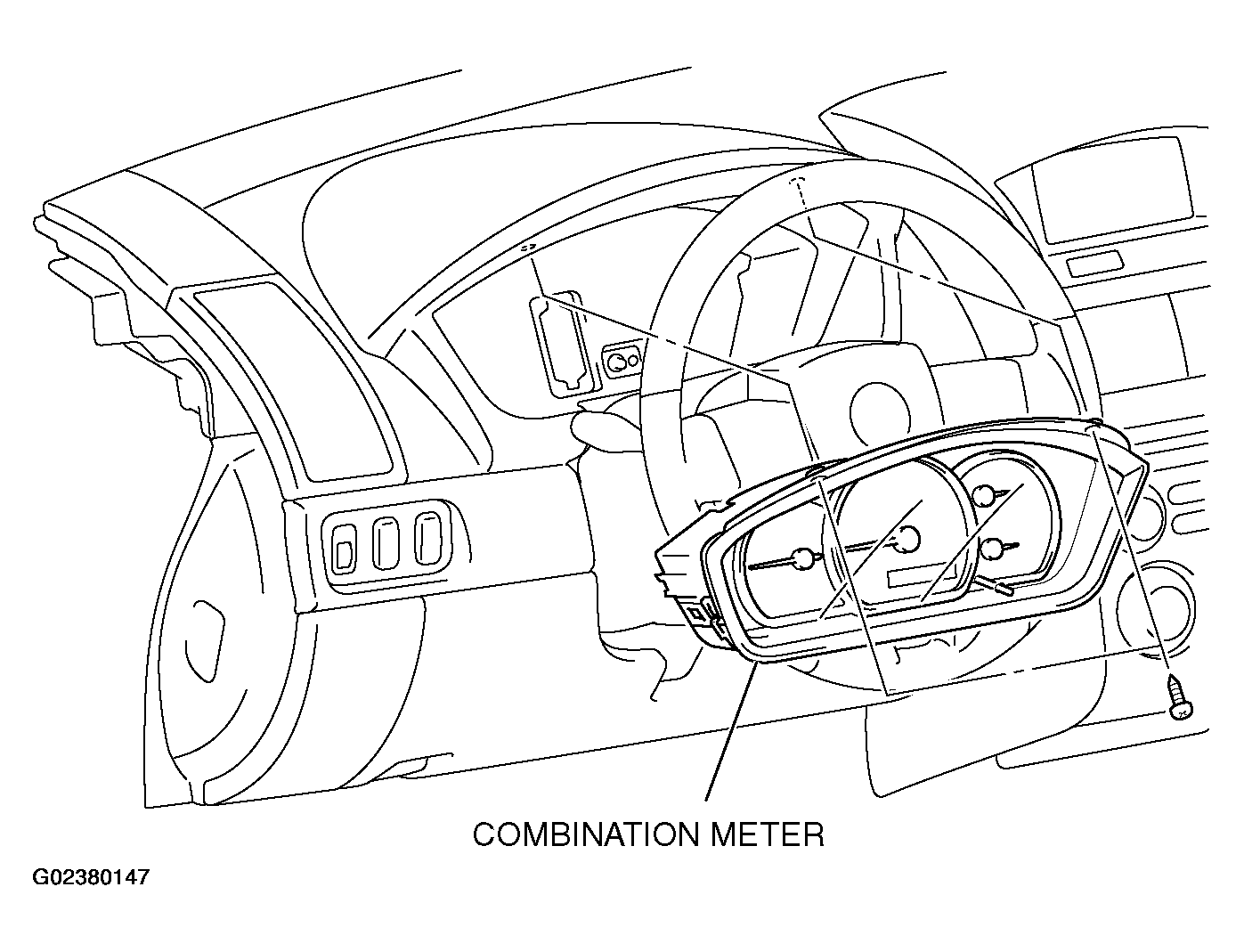

Fig 1: Identifying Combination Meter Assembly

G02380147

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: The combination meter connector is fixed in the instrument panel.
