Home >> Mitsubishi >> 2005 >> Endeavor LS, AWD >> Repair and Diagnosis >> Engine Mechanical >> Mechanical >> Overhaul >> Ignition System >> Removal And Installation >> Notes

Removal And Installation: Notes

Required Special Tools:

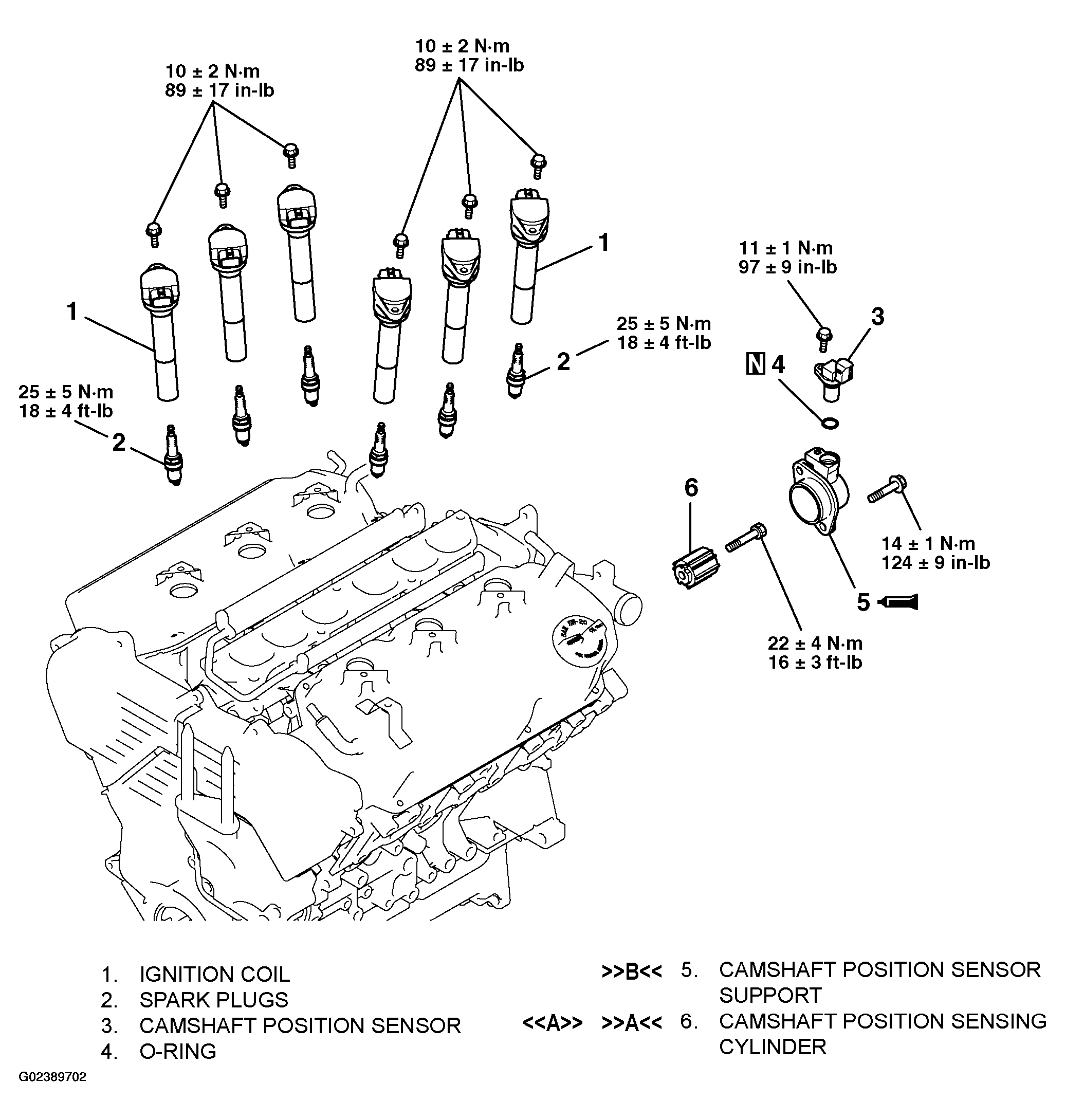

Fig 1: Removing/Installing Ignition System Components
G02389702Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
