Removal And Installation: Notes

CAUTION: *: indicates parts which should be temporarily tightened, and then fully tightened with the engine weight applied on the vehicle body.

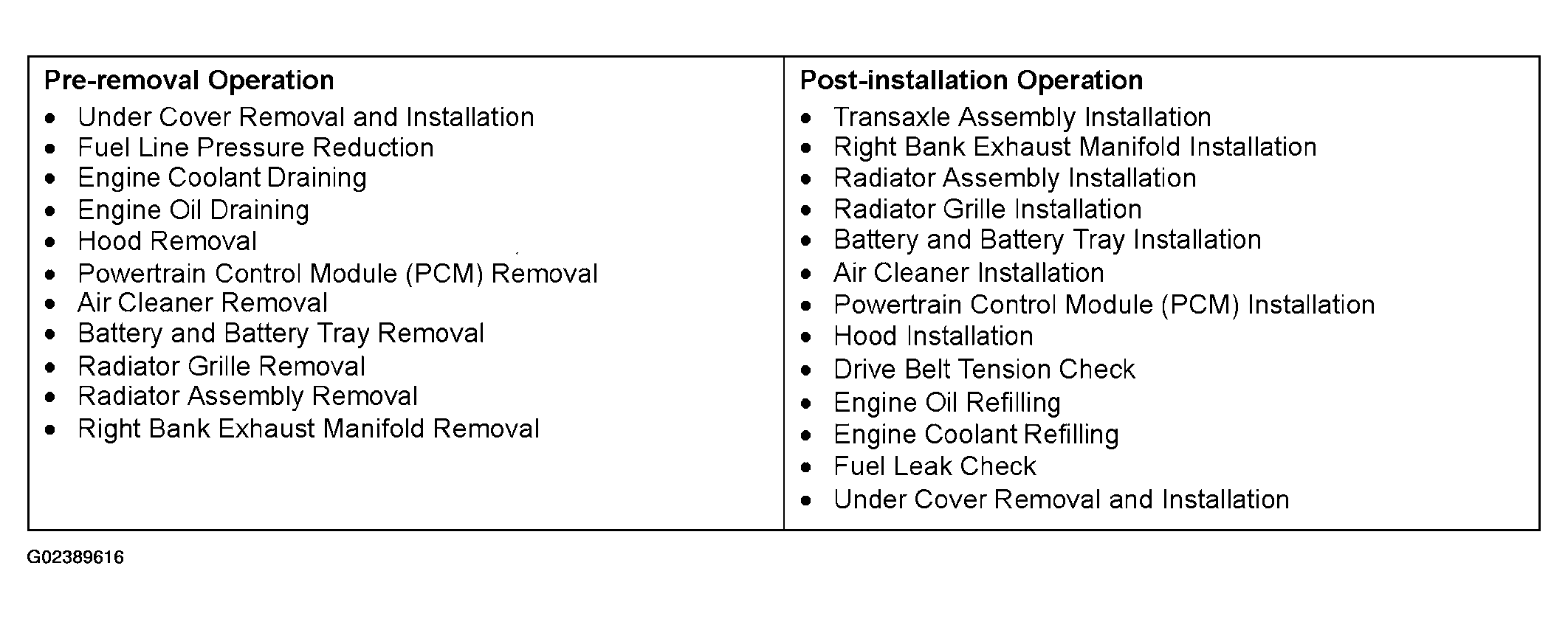

Fig 1: Removing/Installing Engine Assembly (1 Of 3)
G02389616Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

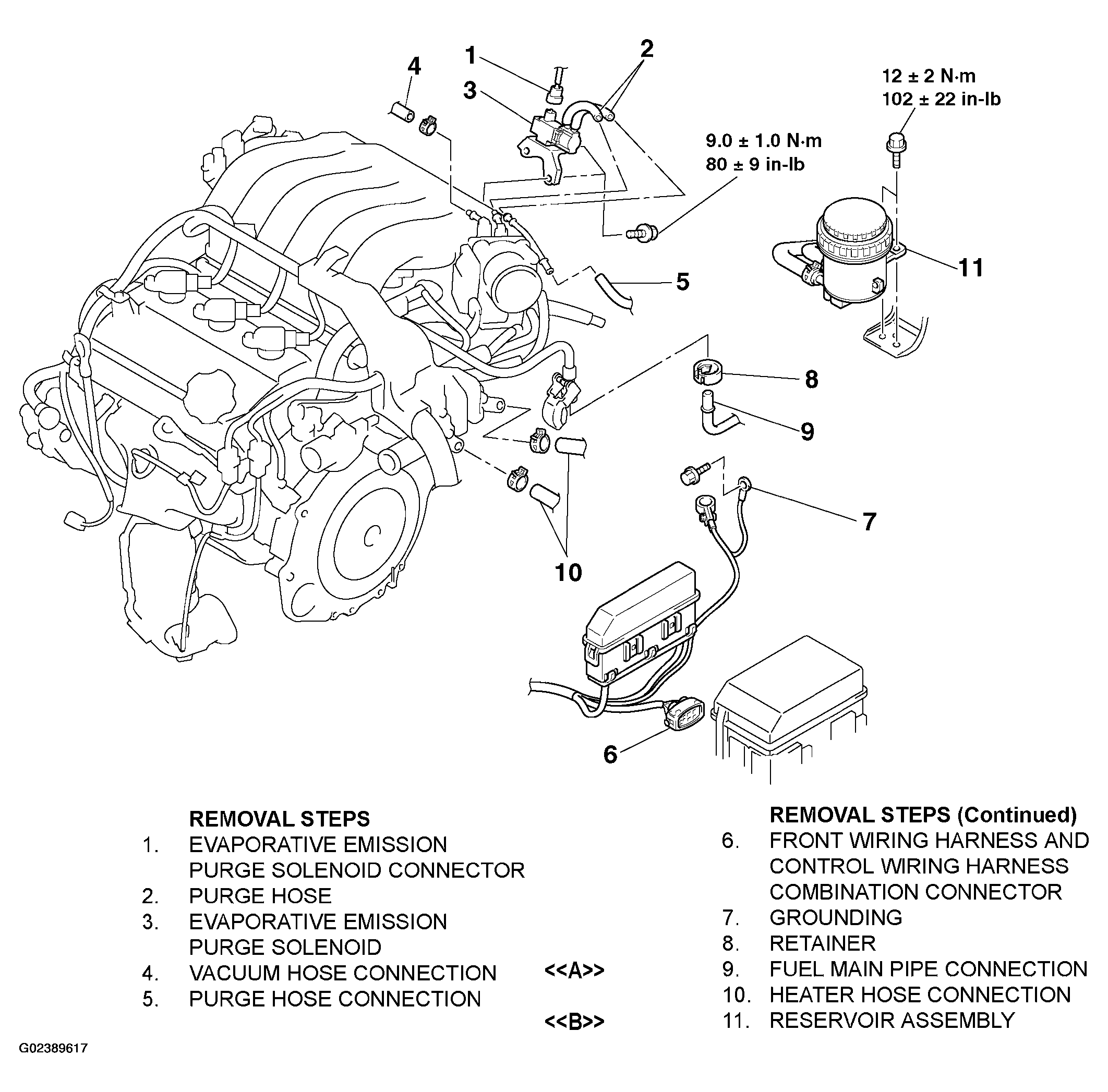

Fig 2: Removing/Installing Engine Assembly (2 Of 3)
G02389617Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

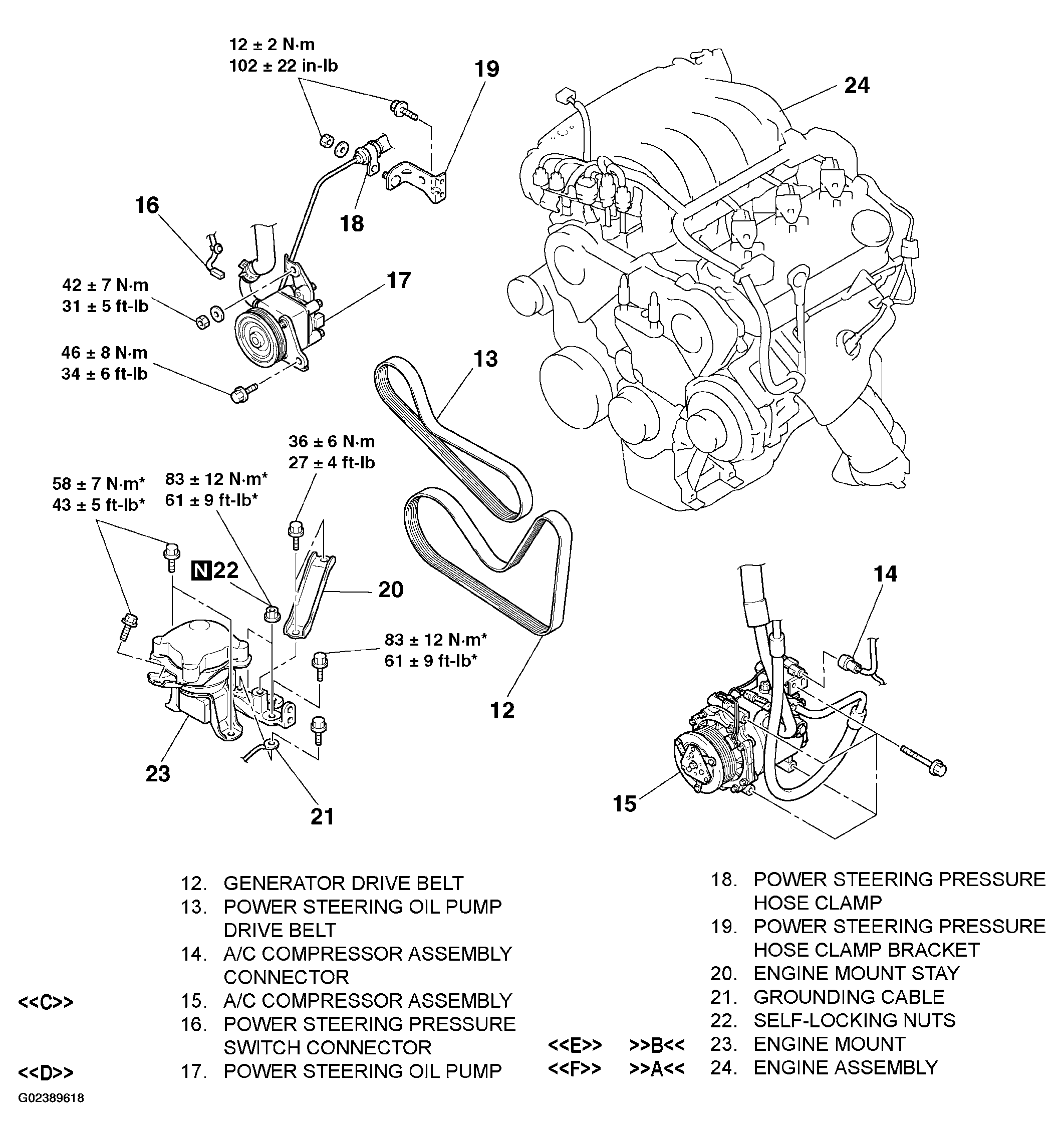

Fig 3: Removing/Installing Engine Assembly (3 Of 3)
G02389618Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
