INSPECTION PROCEDURE 8: Tachometer does not Work.: Notes

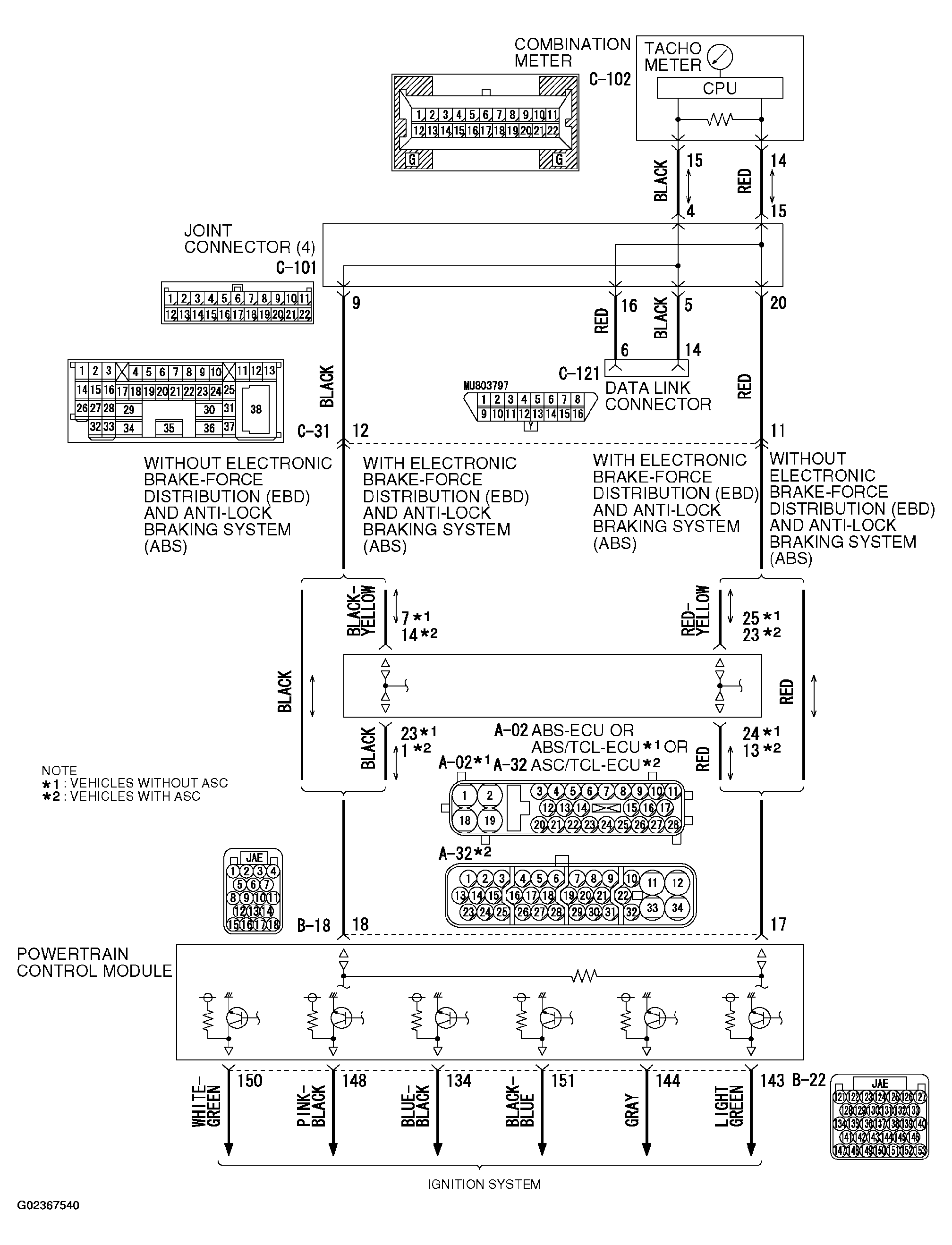

Fig 1: Tachometer Circuit Diagram & Connecor Identification (1 Of 2)
G02367540Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

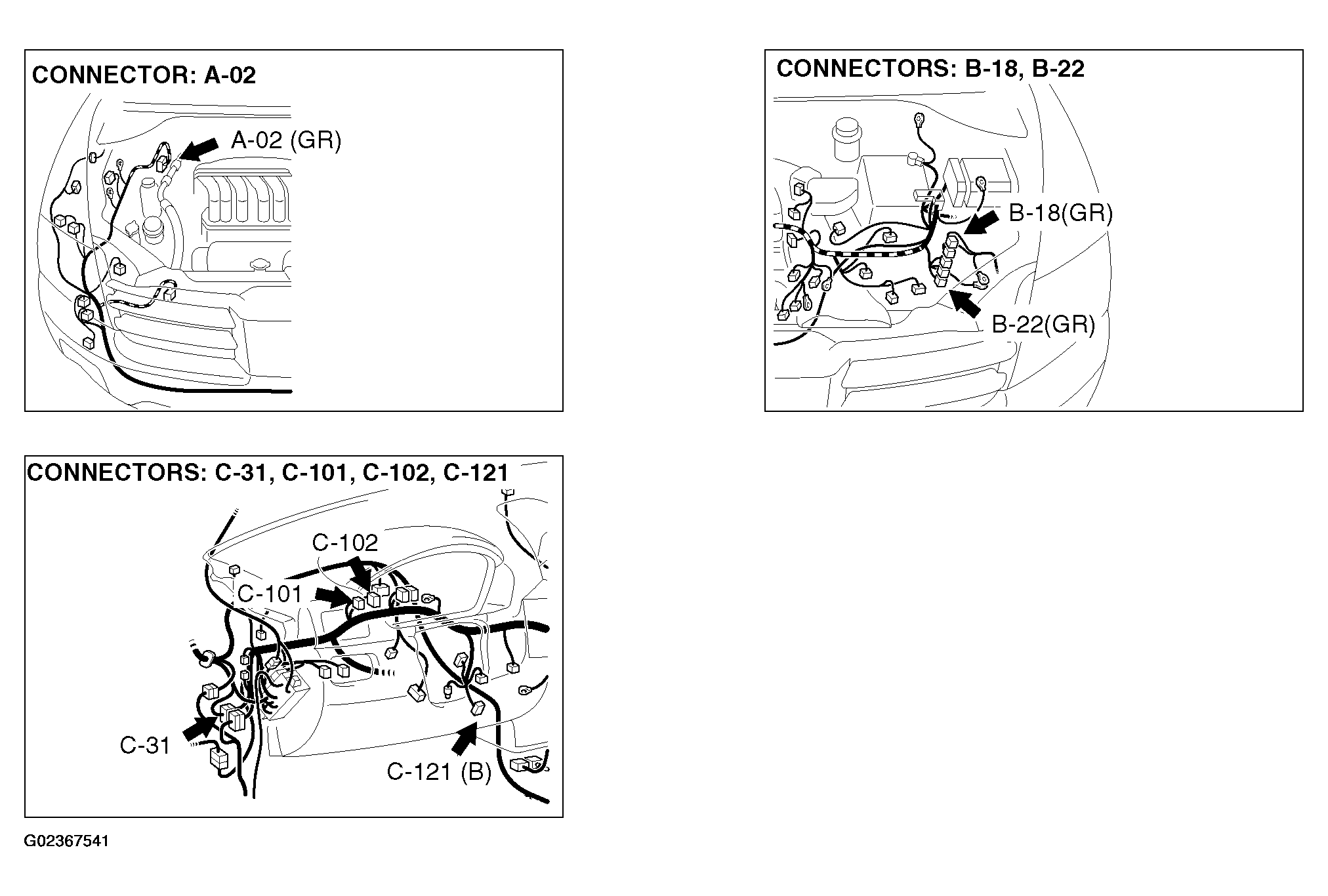

Fig 2: Tachometer Circuit Diagram & Connecor Identification (2 Of 2)
G02367541Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
