Removal And Installation: Notes

Pre-removal Operation

• Engine Coolant Draining [Refer toENGINE COOLANT (CHANGE) .]

Post-installation Operation

• Transmission Fluid Supplying and Checking (Refer to AUTOMATIC TRANSMISSION FLUID ).
• Engine Coolant Supplying (Refer toENGINE COOLANT (CHANGE) ).

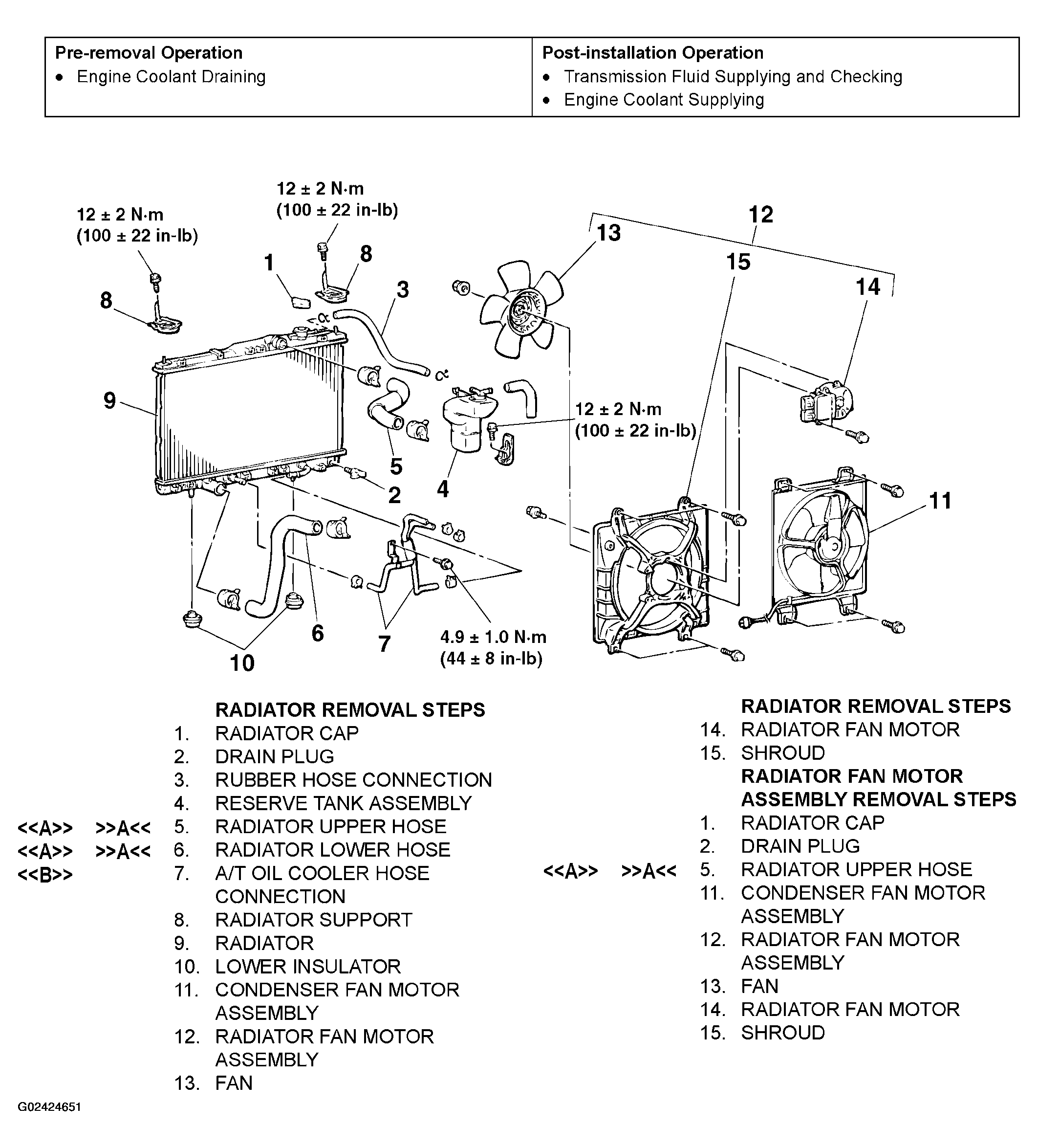

  Fig 1: Removing/Installing Steps Of Radiator

  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
