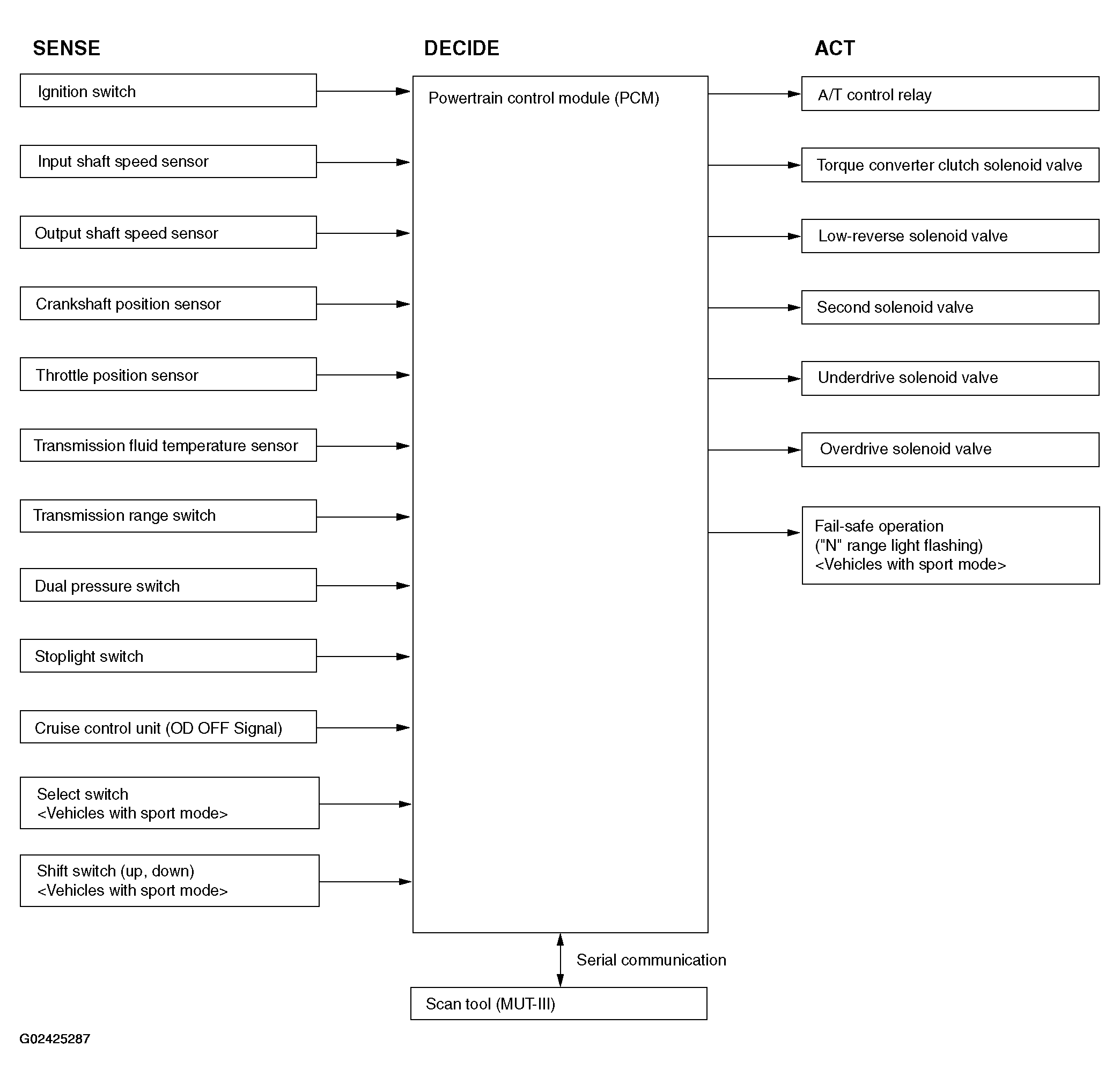

Home >> Mitsubishi >> 2005 >> Eclipse GTS, Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Diagnosis >> General Description >> Electronically-Controlled System >> System Construction Diagram
