Data List Reference Table

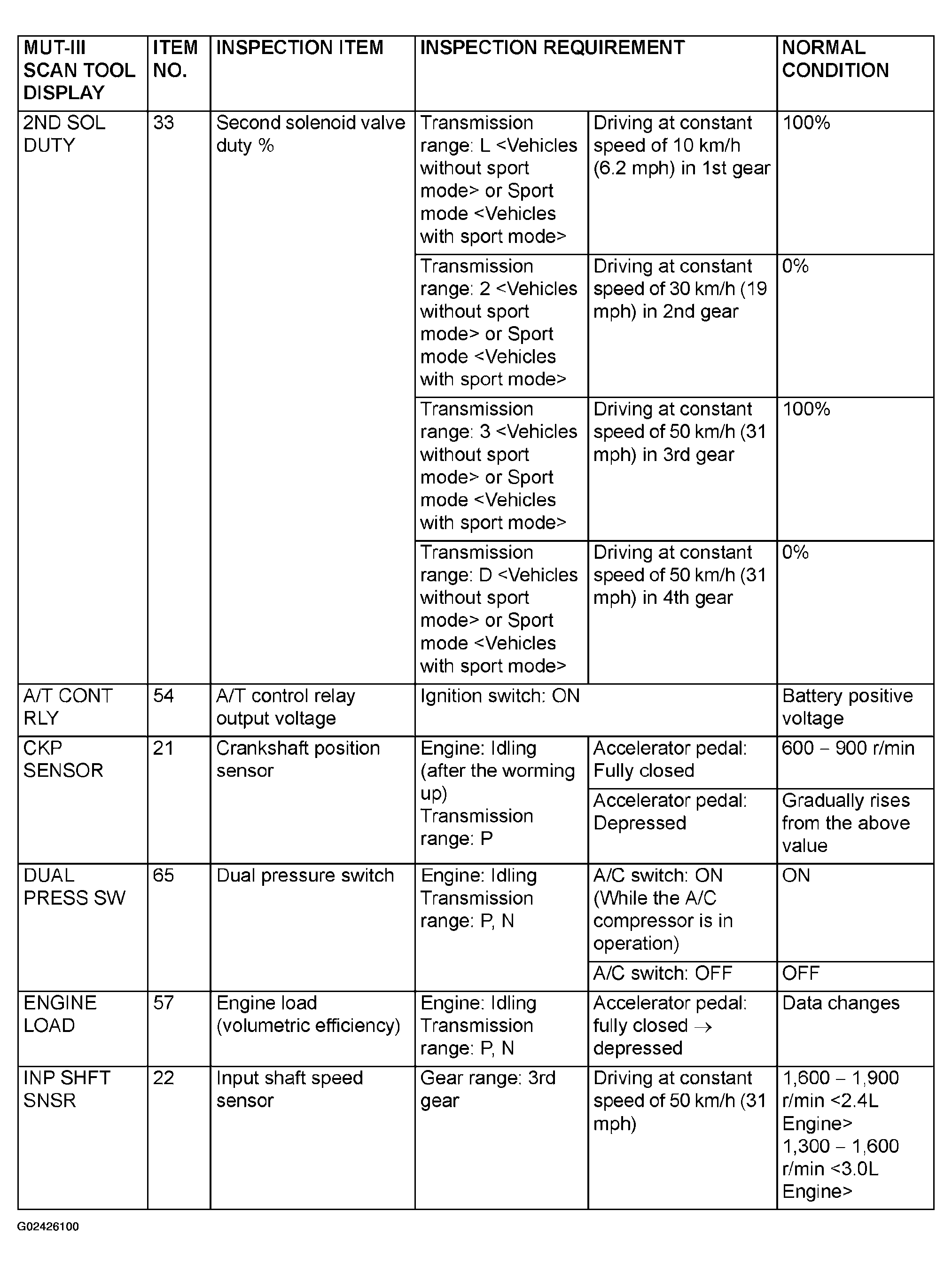

Fig 1: Data List Reference Chart (1 Of 7)

G02426100

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

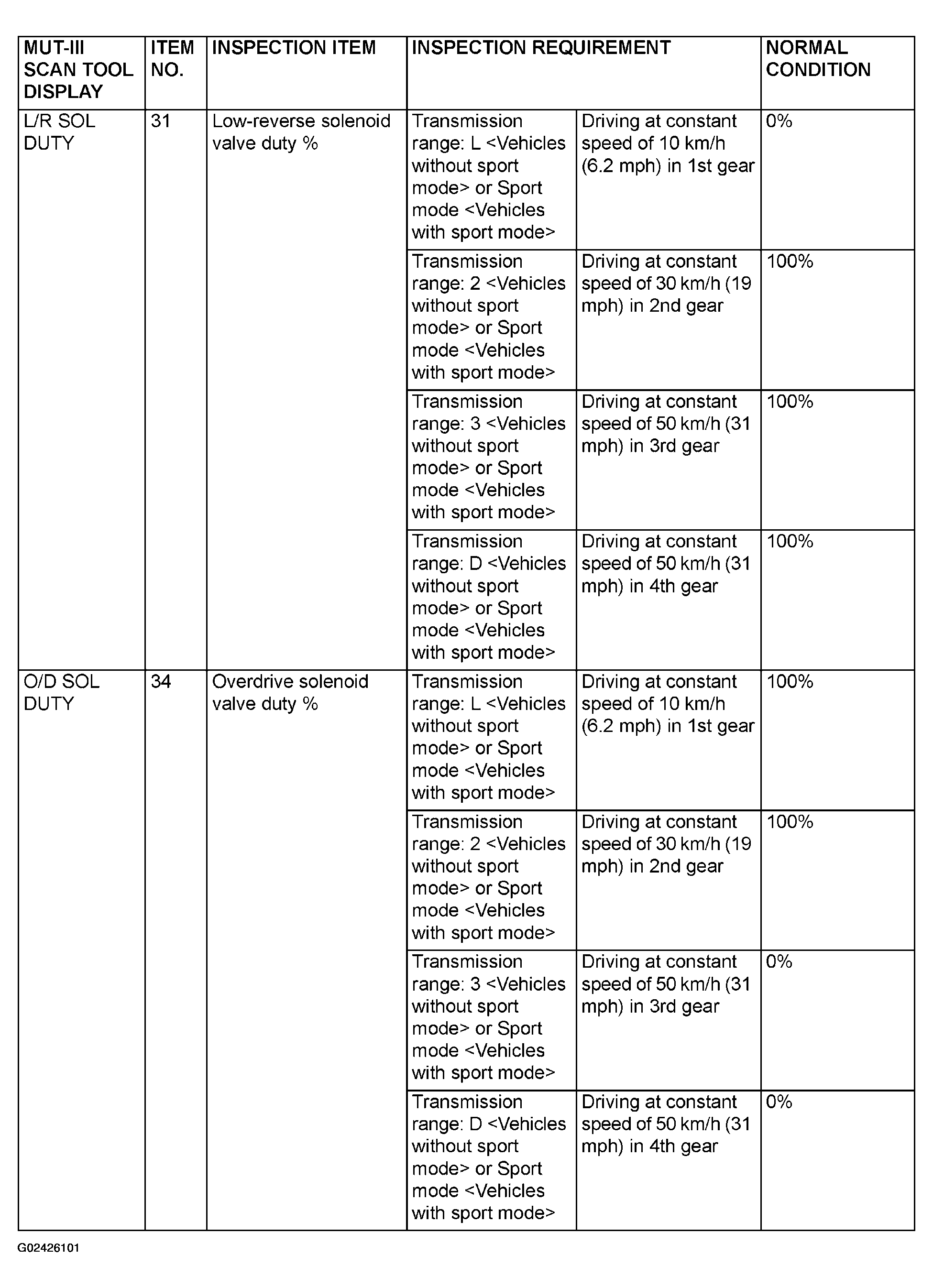

Fig 2: Data List Reference Chart (2 Of 7)

G02426101

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

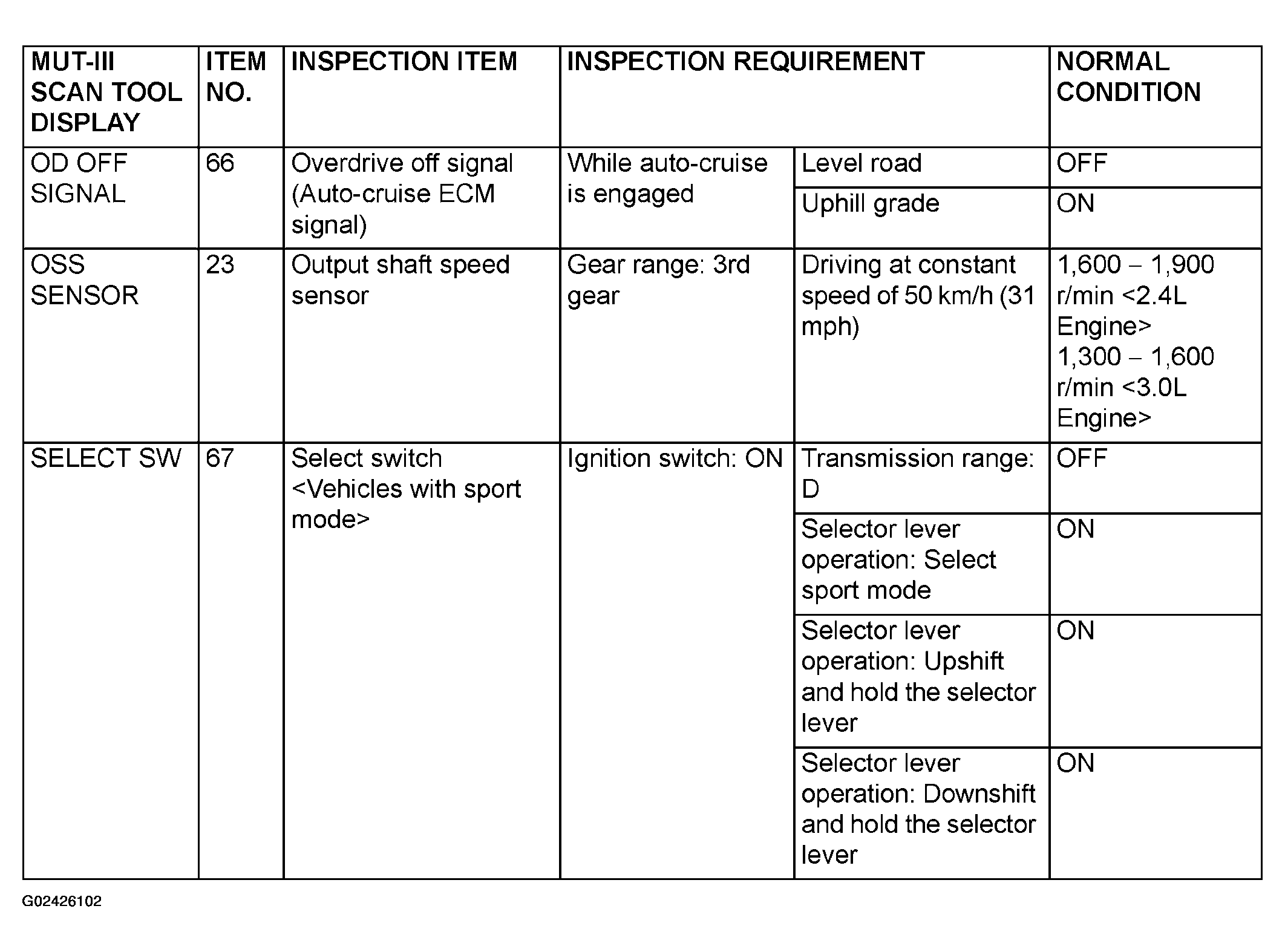

Fig 3: Data List Reference Chart (3 Of 7)

G02426102

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

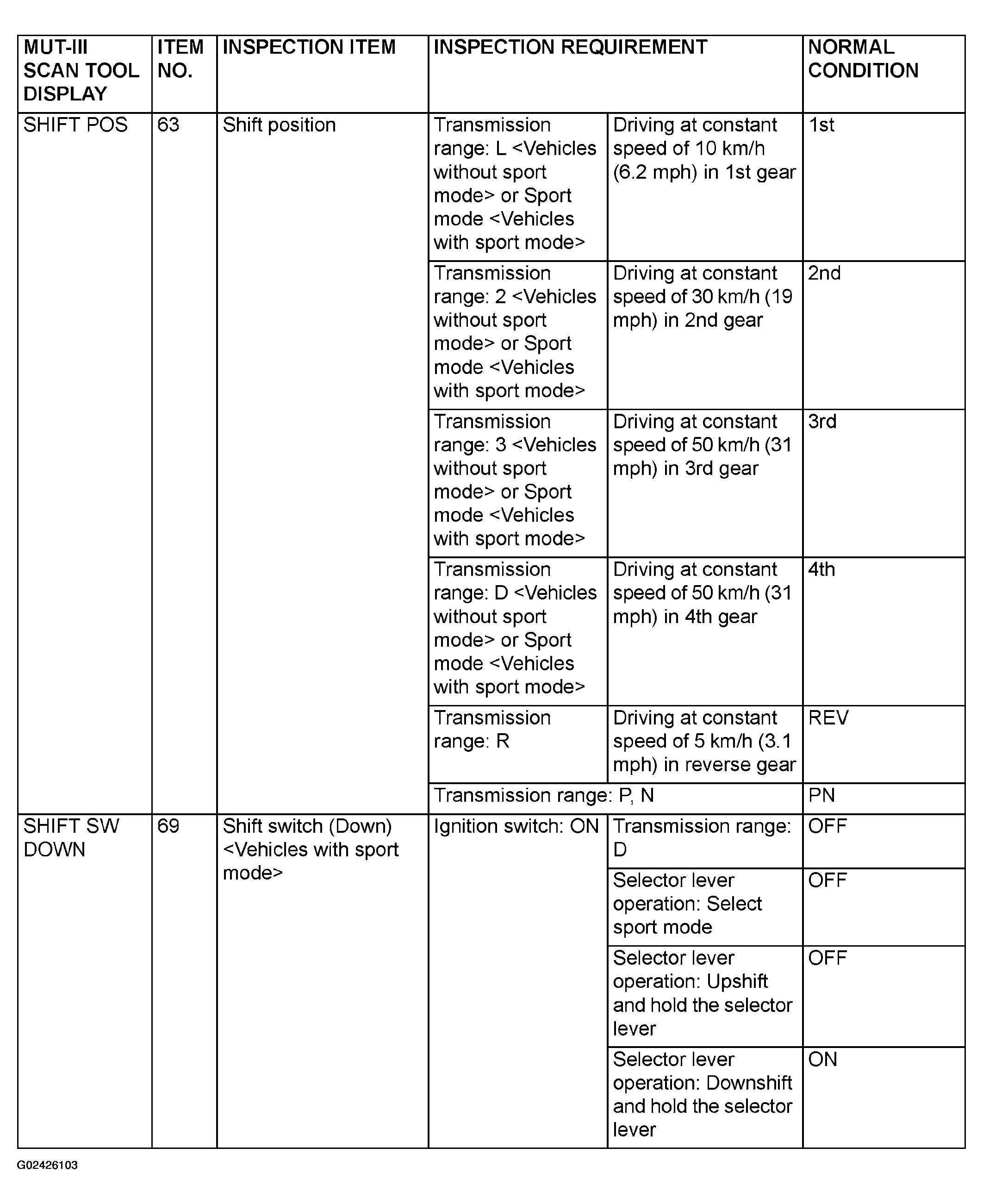

Fig 4: Data List Reference Chart (4 Of 7)

G02426103

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

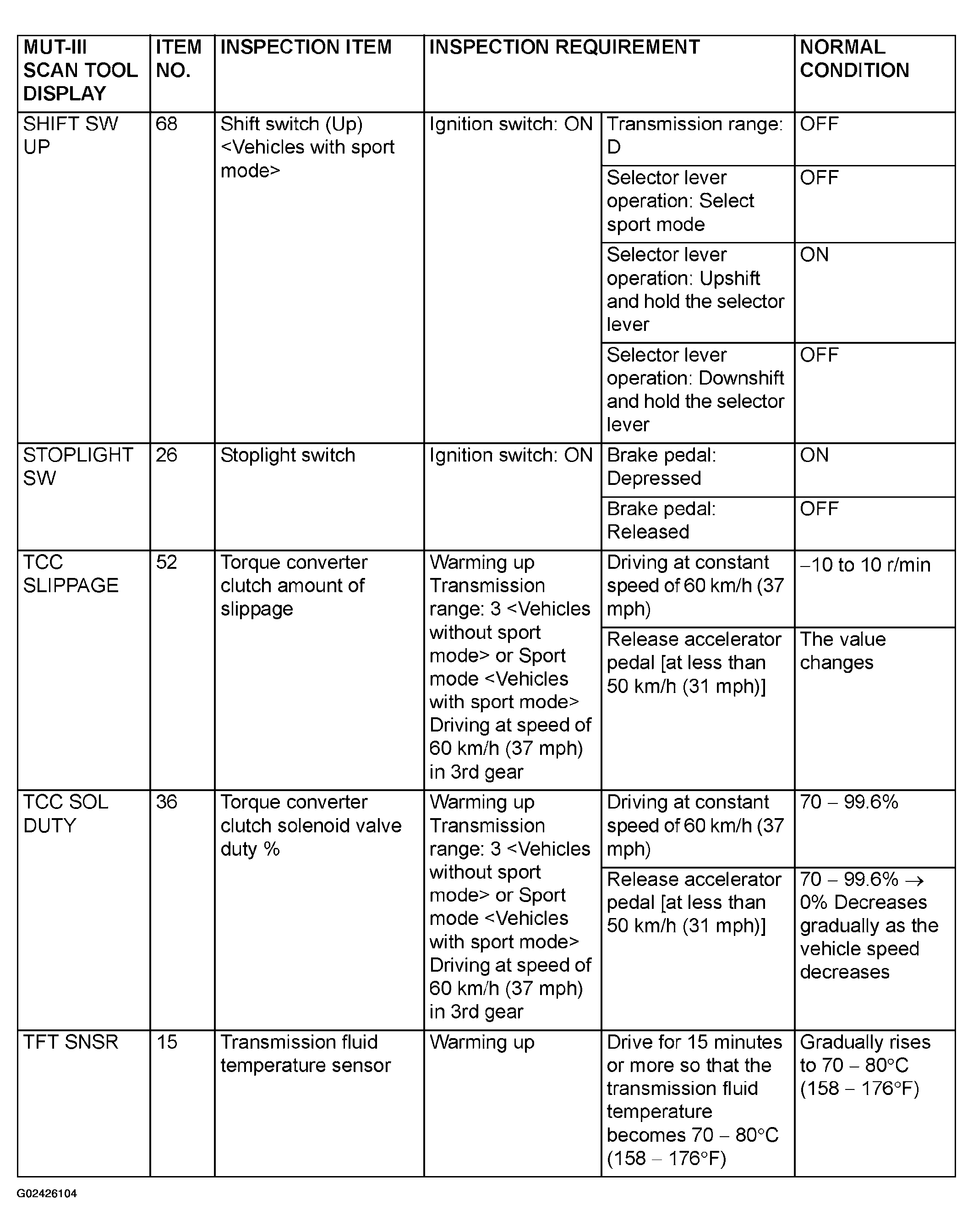

Fig 5: Data List Reference Chart (5 Of 7)

G02426104

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

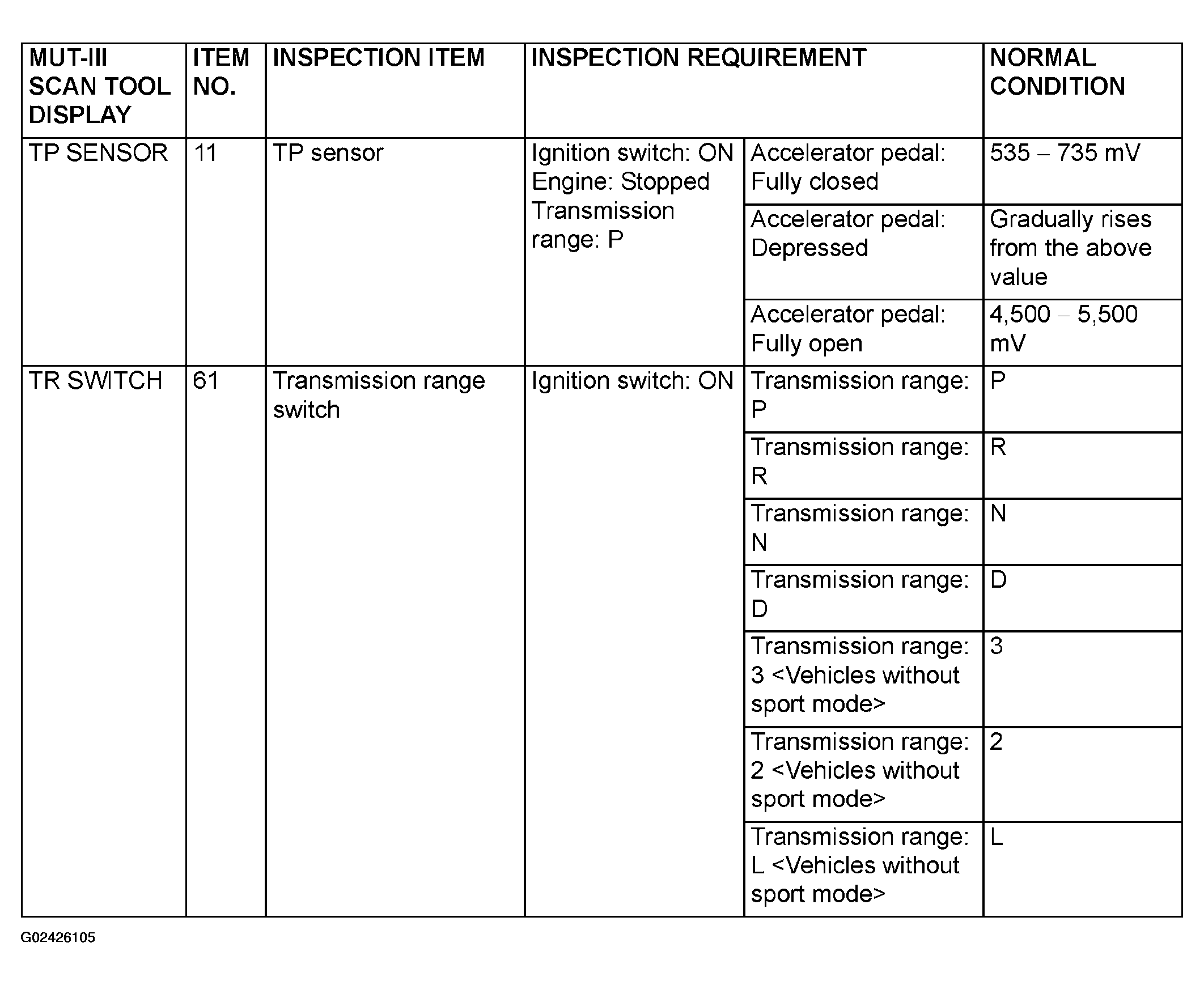

Fig 6: Data List Reference Chart (6 Of 7)

G02426105

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

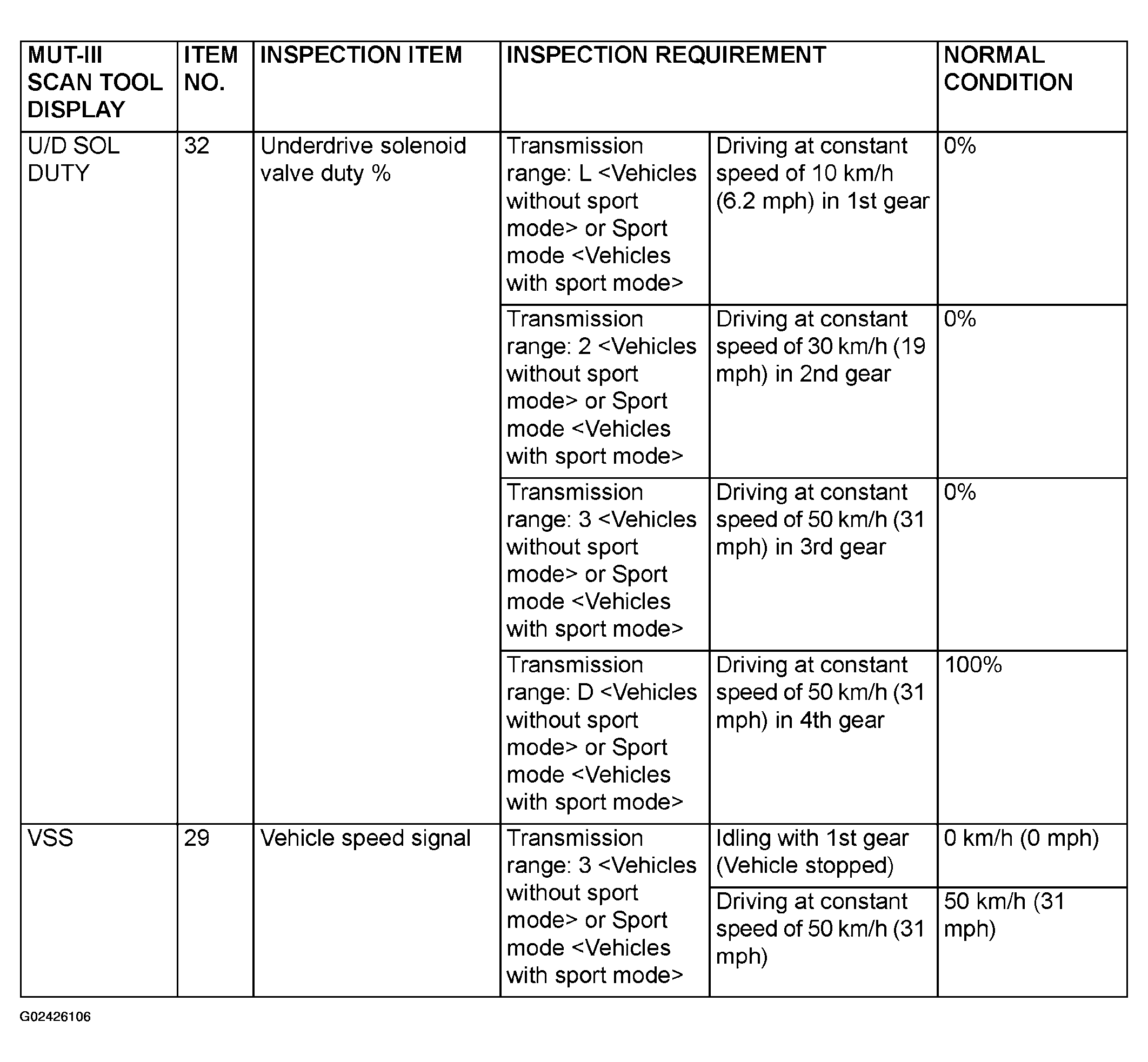

Fig 7: Data List Reference Chart (7 Of 7)

G02426106

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
