Disassembly And Assembly: Notes

CAUTION: Never disassemble the BJ assembly except when replacing the BJ boot.

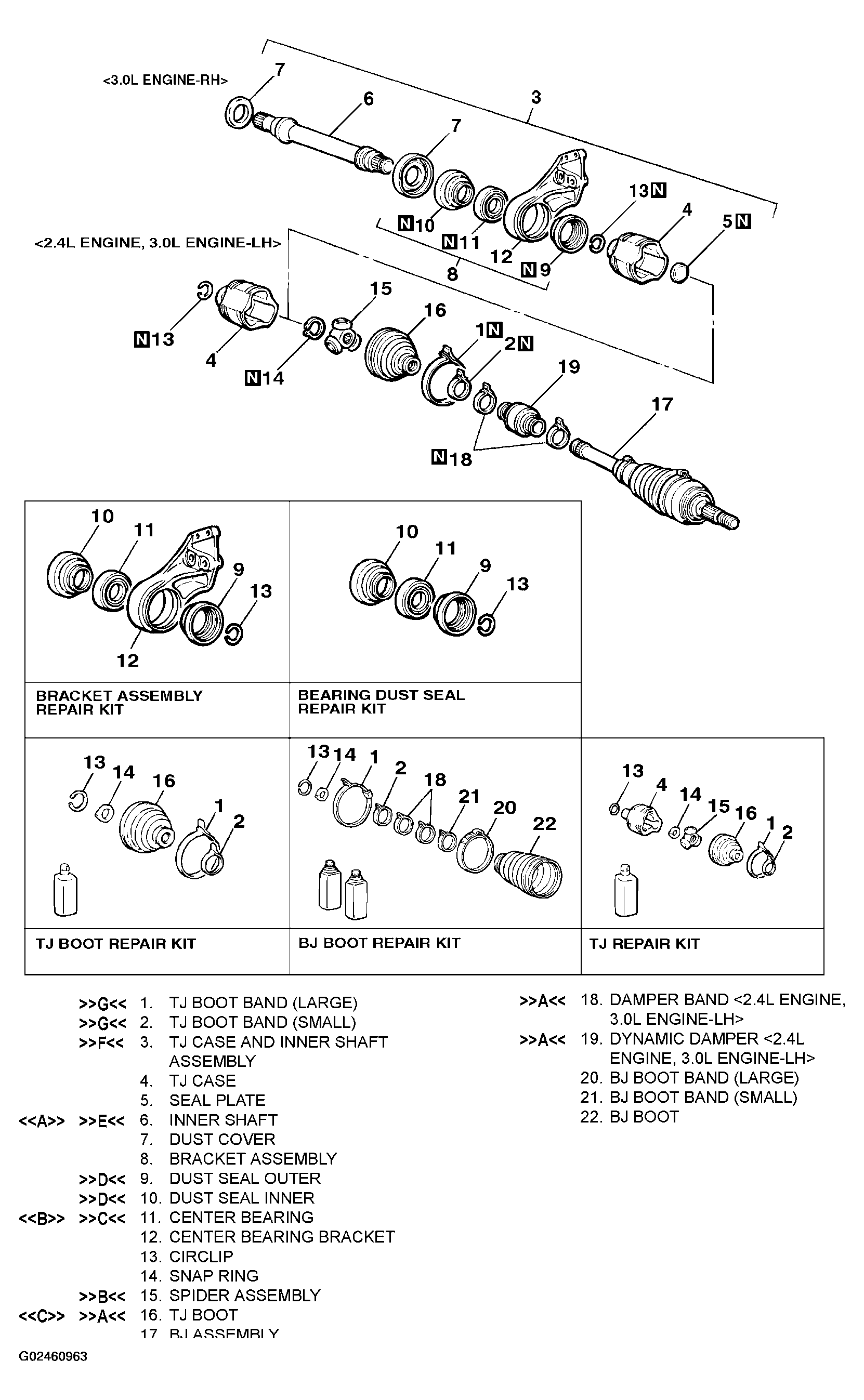

Fig 1: Disassembling/Assembling Drive Shaft

G02460963

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
