INSPECTION PROCEDURE 17: Shift Switch Assembly System: Notes

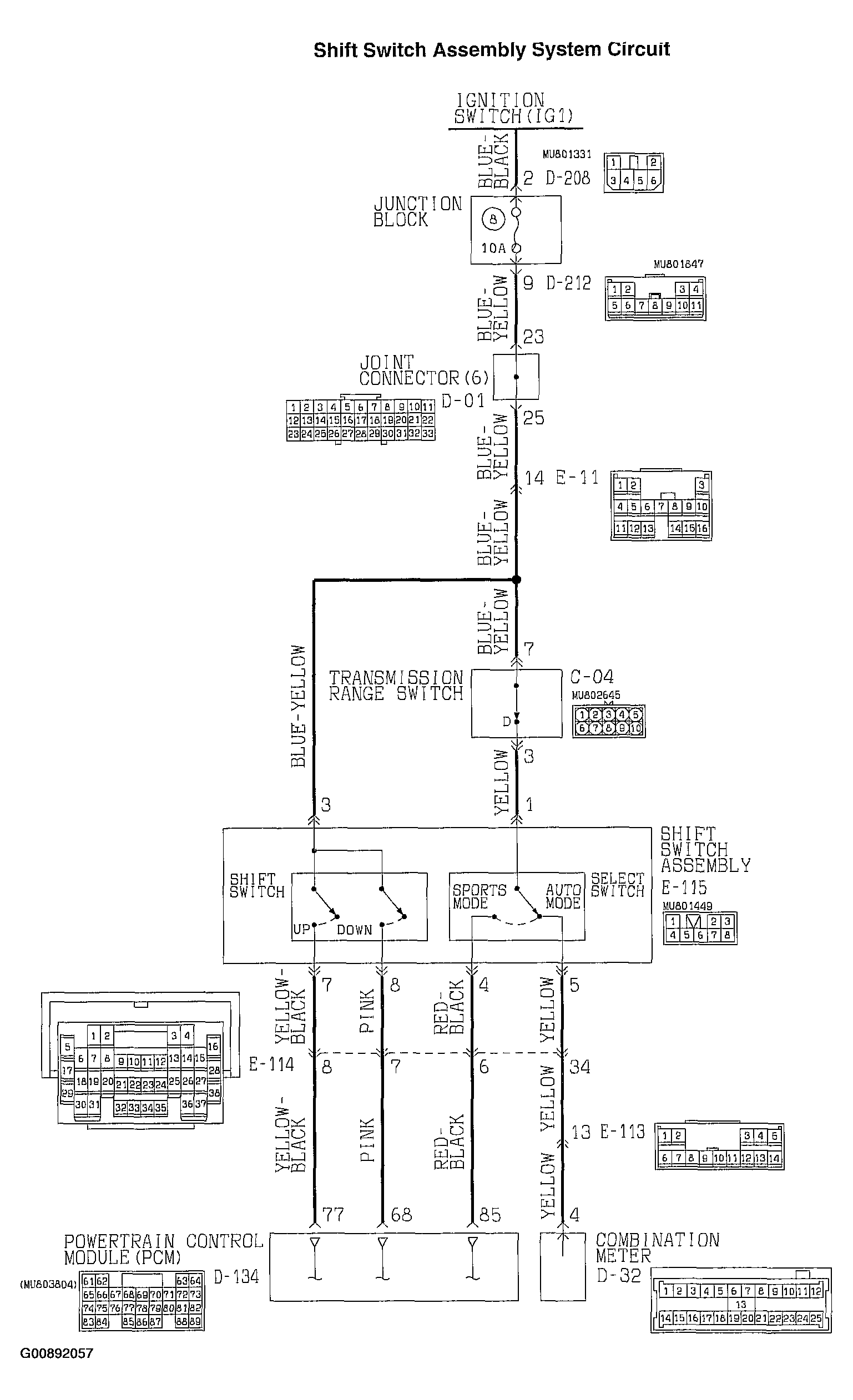

Fig 1: Swift Switch Assembly System Circuit Diagram (1 Of 3)
G00892057Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

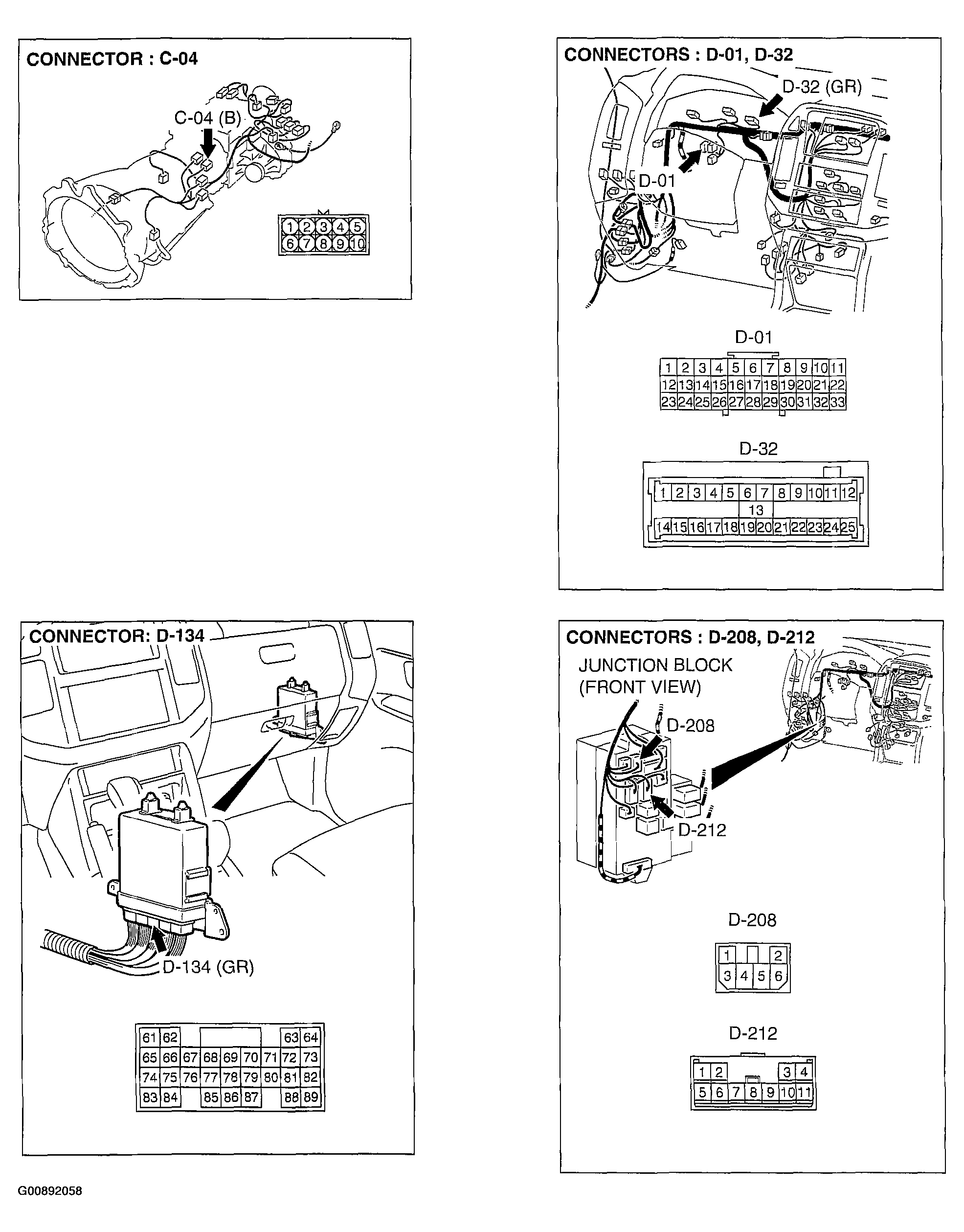

Fig 2: Swift Switch Assembly System Circuit Diagram (2 Of 3)
G00892058Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

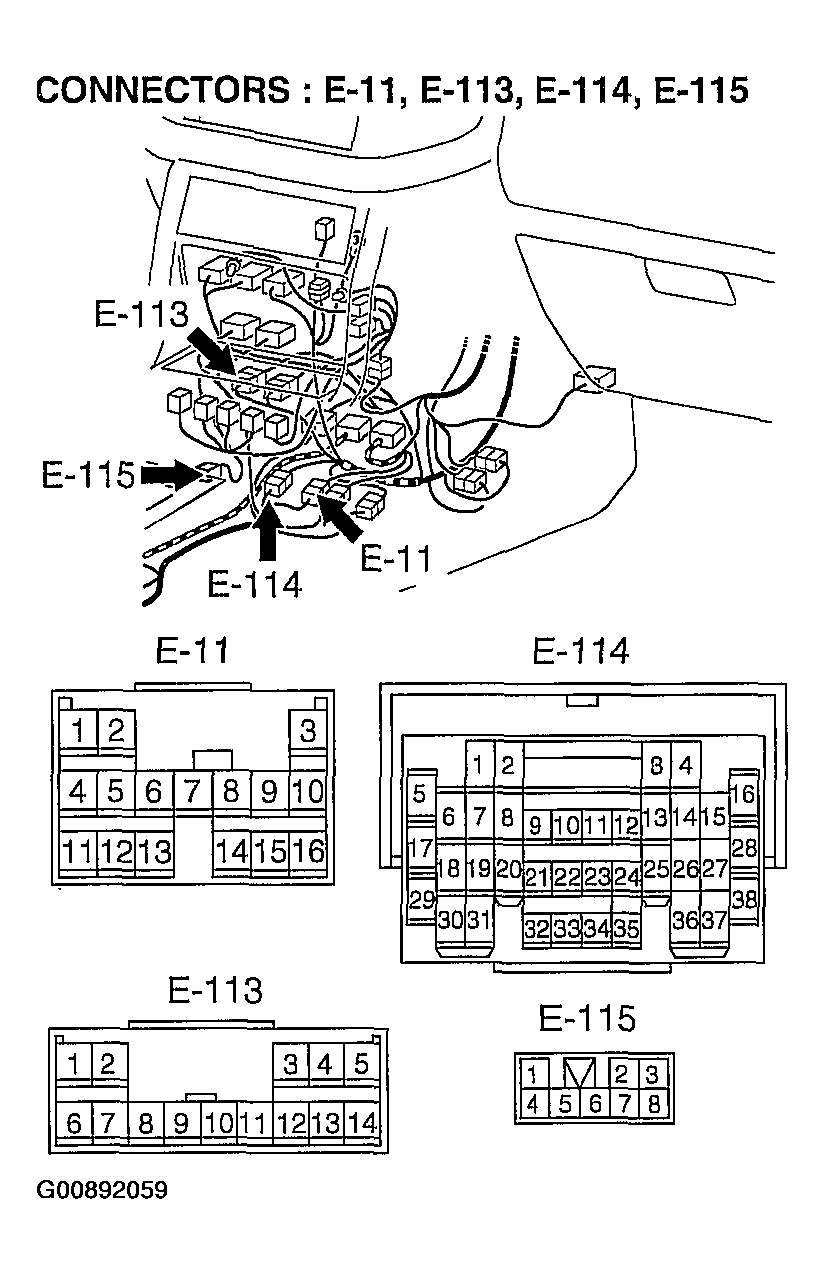

Fig 3: Swift Switch Assembly System Circuit Diagram (3 Of 3)
G00892059Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
