DTC 26: Stoplight Switch System: Notes

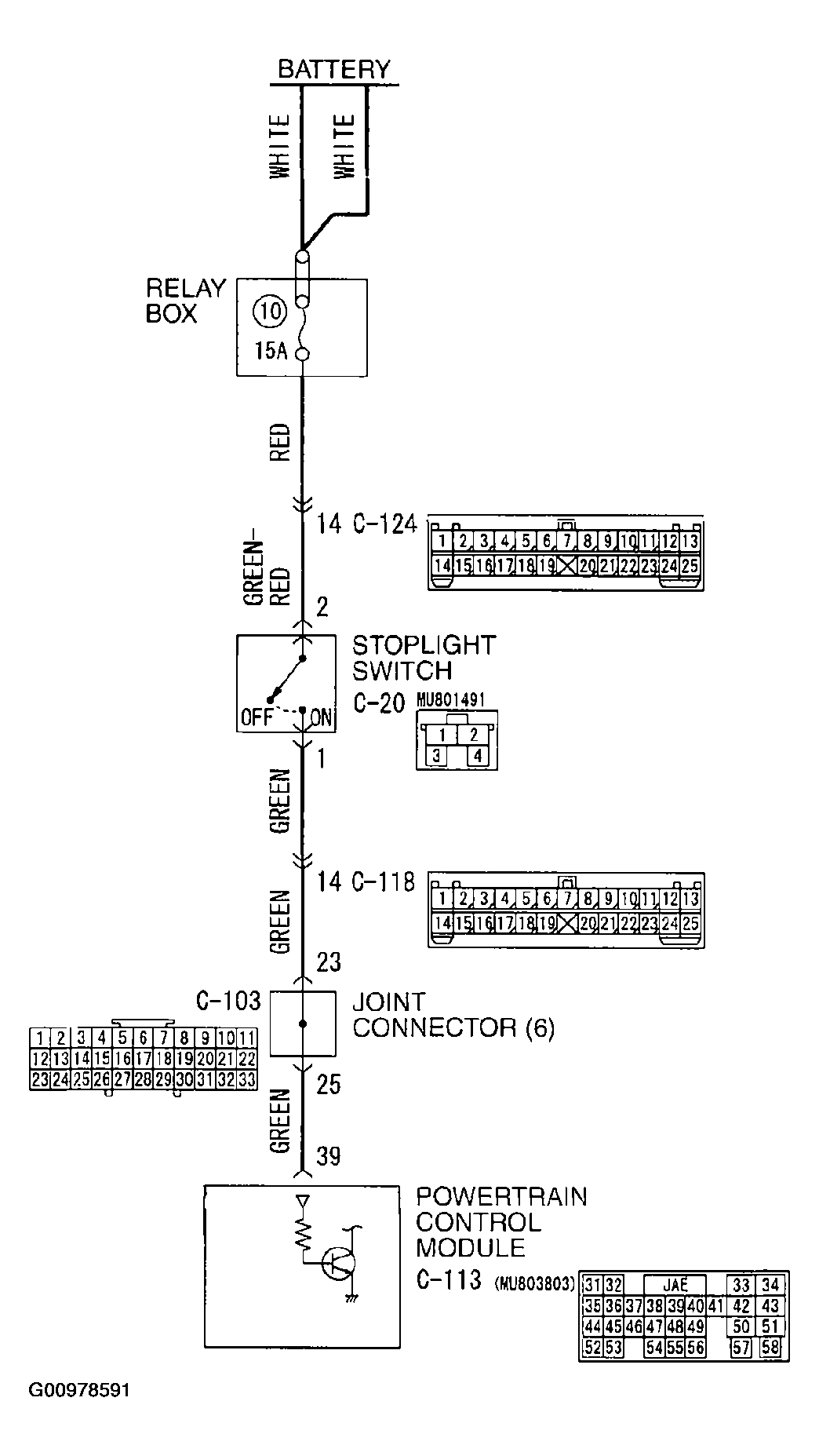

Fig 1: Stoplight Switch System Circuit Diagram
G00978591Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

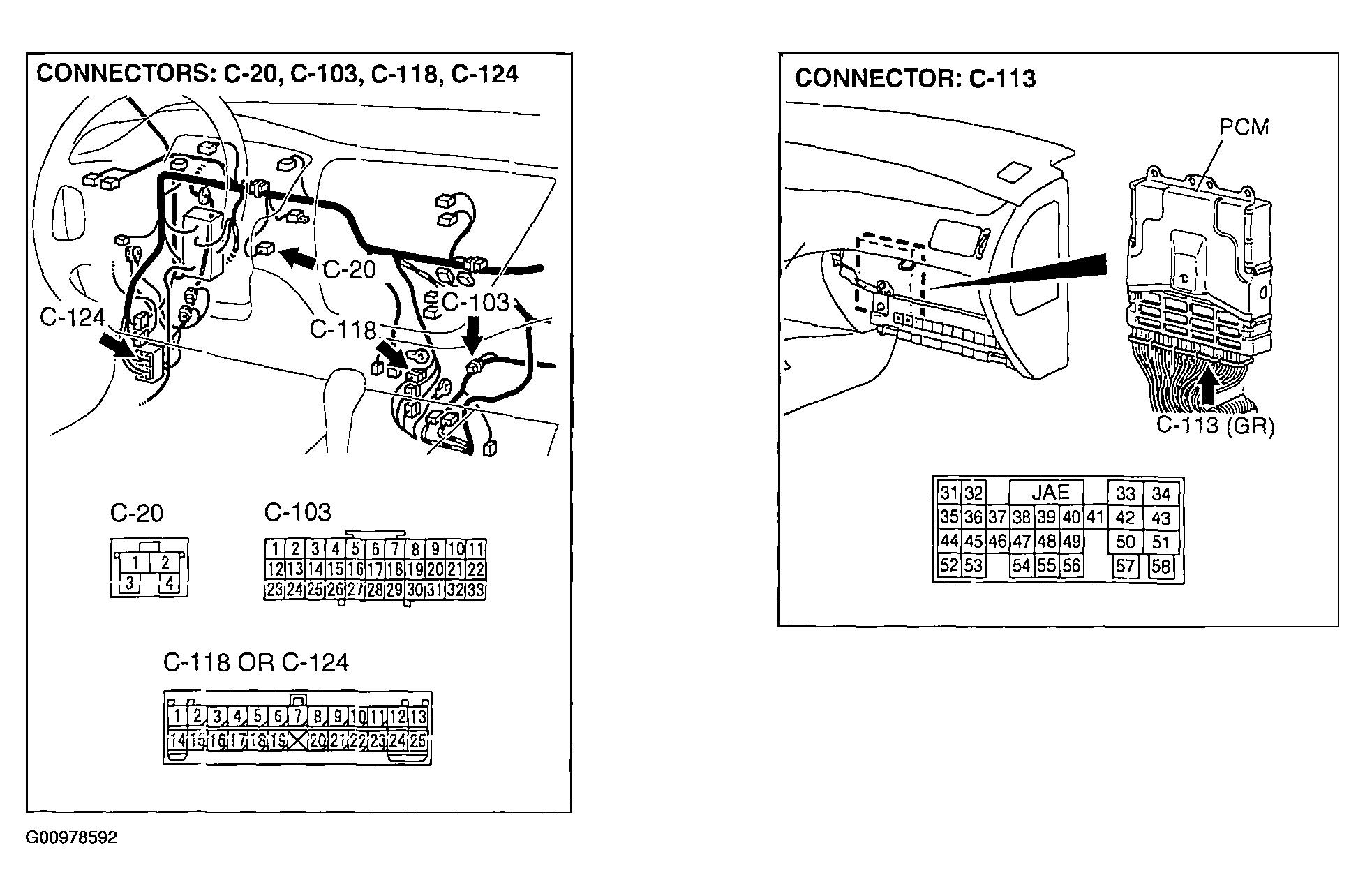

Fig 2: Identifying Connectors
G00978592Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
