Removal And Installation: Notes

WARNING: This page is about a different car, the 2004 Mitsubishi Galant. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: * : indicates parts which should be temporarily tightened, and then fully tightened with the engine weight applied on the vehicle body.

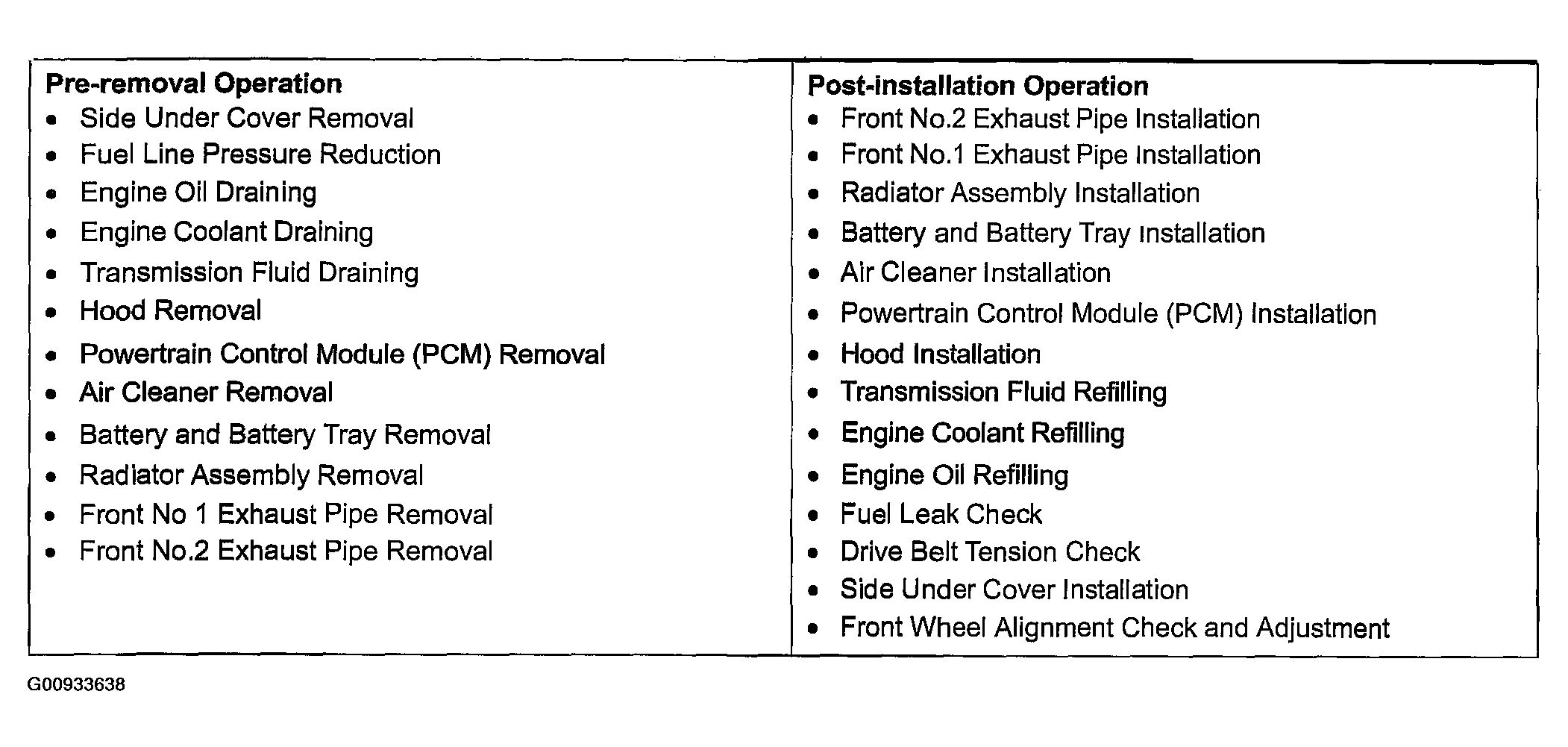

Fig 1: Pre-Removal And Post-Installation Service Points
G00933638Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

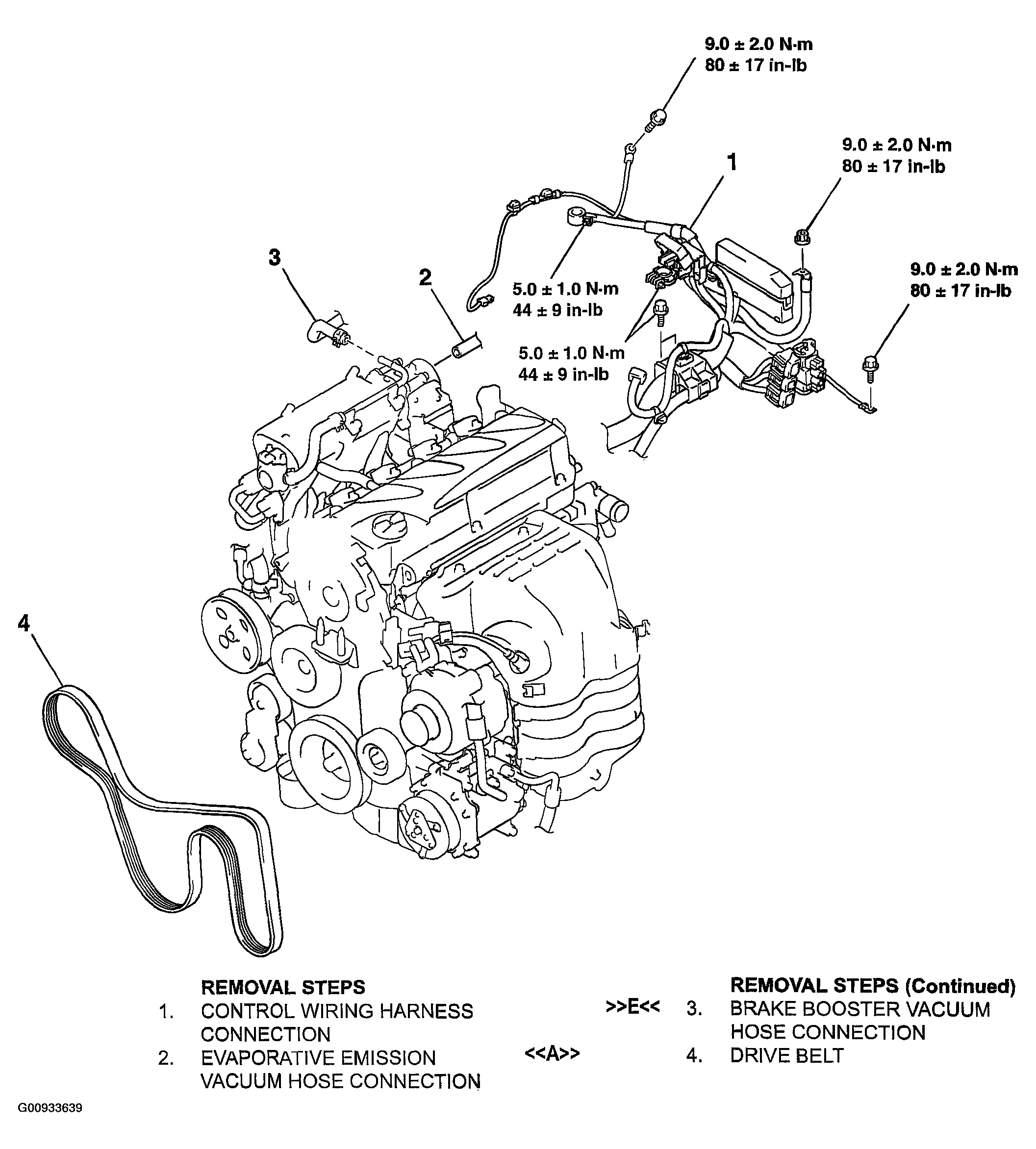

Fig 2: Removing And Installing Engine Assembly (1 Of 2)
G00933639Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

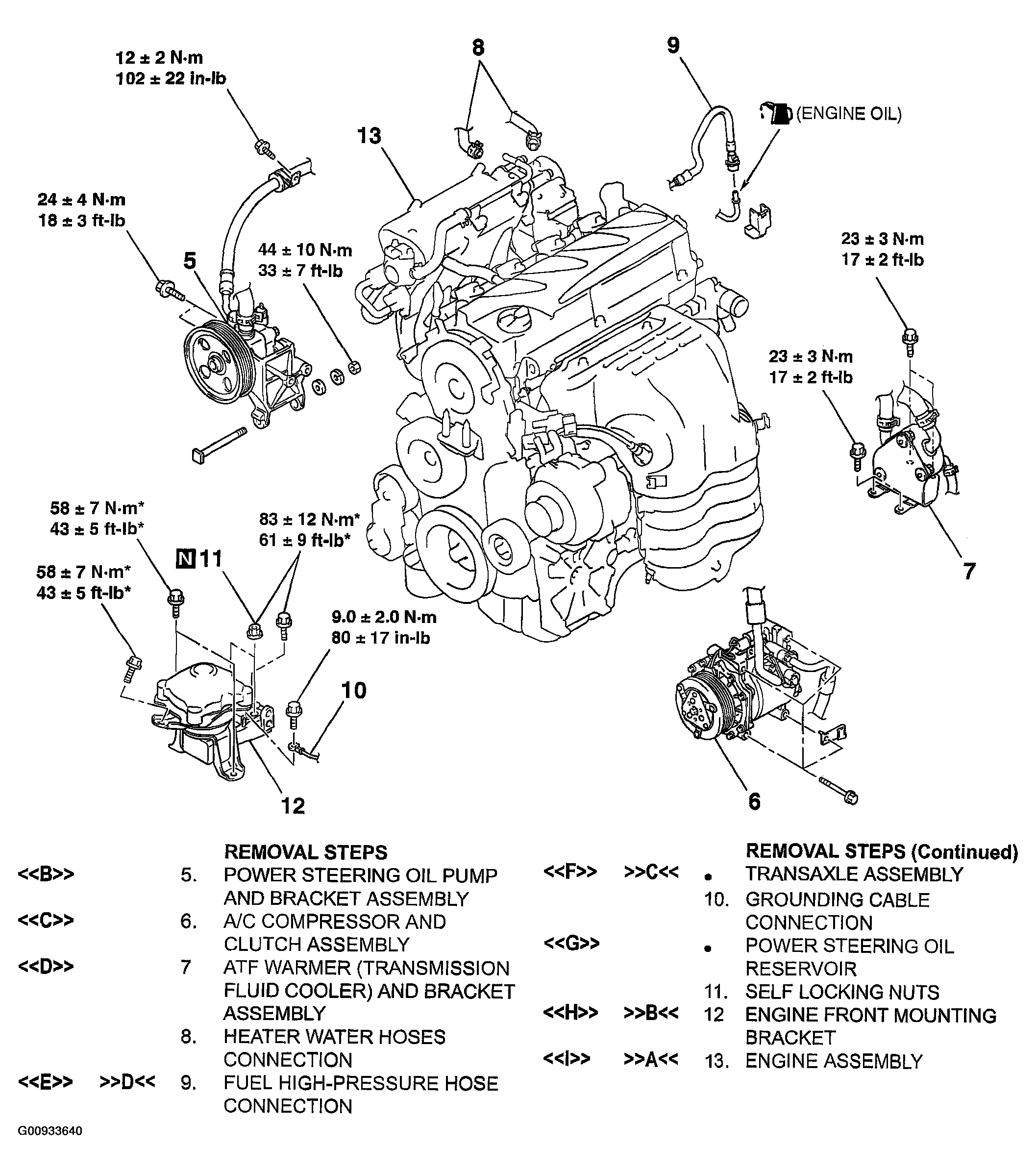

Fig 3: Removing And Installing Engine Assembly (2 Of 2)
G00933640Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
