Door Window Glass Adjustment

Check that the door glass moves while contacting the door glass channel when it is raised and lowered fully. If not, adjust the door window according to the following procedures.

1. Remove the door trim (Refer to DOOR TRIM ).
2. Remove the waterproof film (Refer to WINDOW GLASS RUNCHANNEL AND DOOR OPENING WEATHERSTRIP  ).
3. Loosen the door glass mounting screw via the adjusting hole with the door window glass fully closed, then lower the window glass a little.
4. Fully close the door window glass again and tighten the door i glass mounting screw firmly via the adjusting hole.

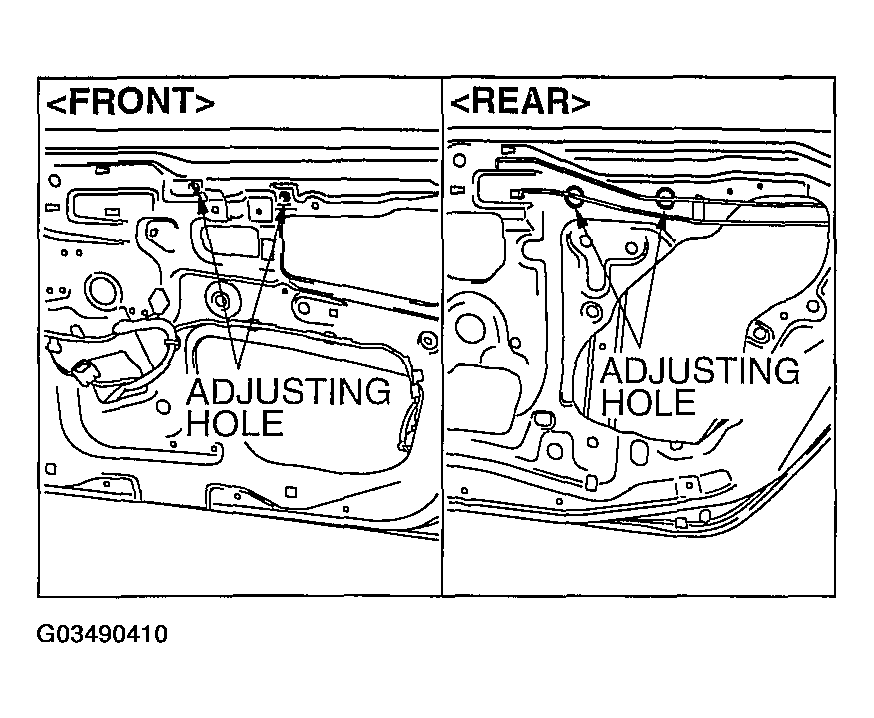

Fig 1: Identifying Adjusting Hole

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
