System Diagram
>>
< 2.4L Engine >
< 2.4L Engine >

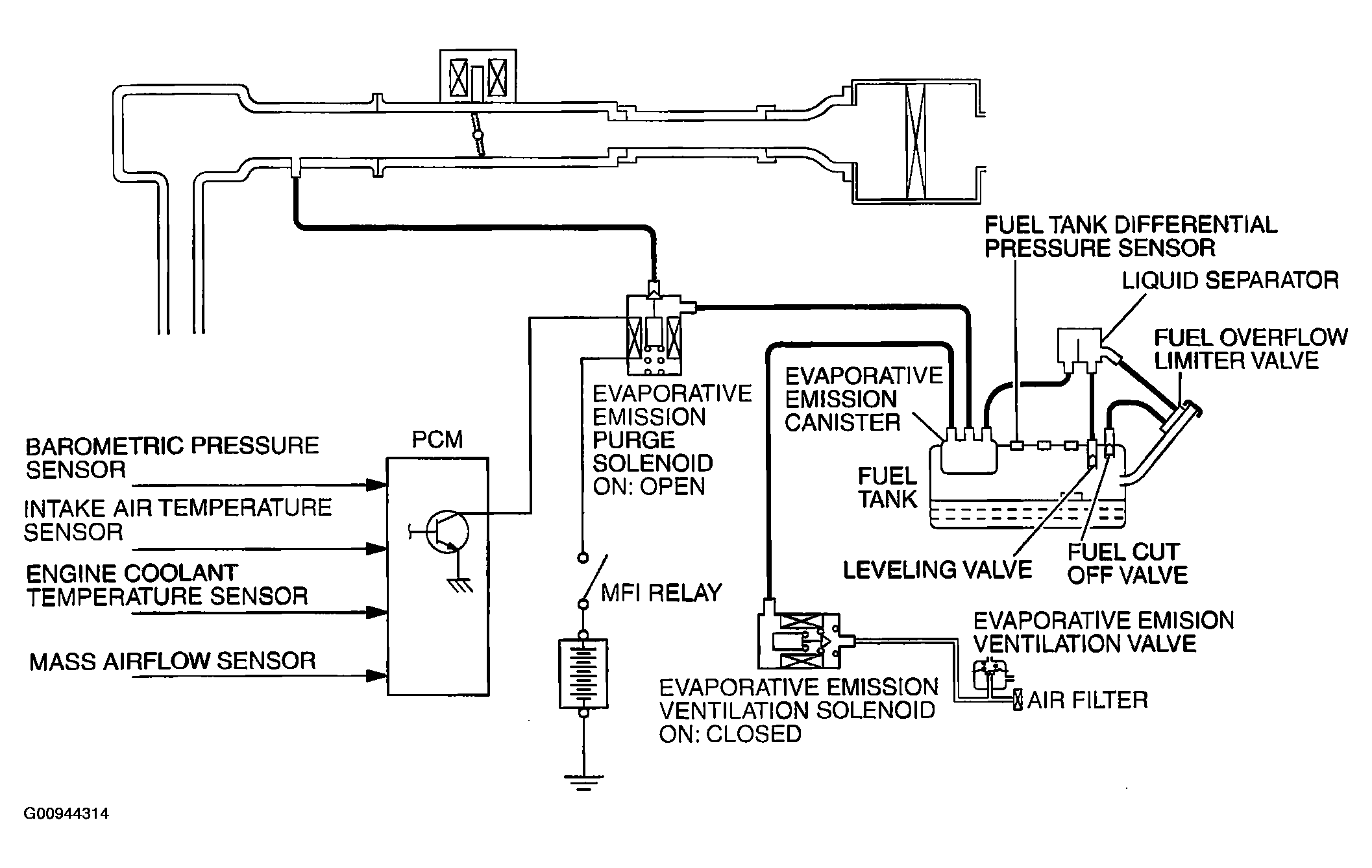

Fig 1: Identifying Evaporative Emission Control System Diagram <2.4L Engine>
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
