Component Locations
CAUTION:
In compliance with California emission regulations (if applicable), DO NOT replace the DOR radiator with a NON-DOR radiator. DO NOT clean the DOR radiator with a high concentration of alkaline cleaner.
COMPONENT LOCATIONS
| Component | Location | ||||
|---|---|---|---|---|---|

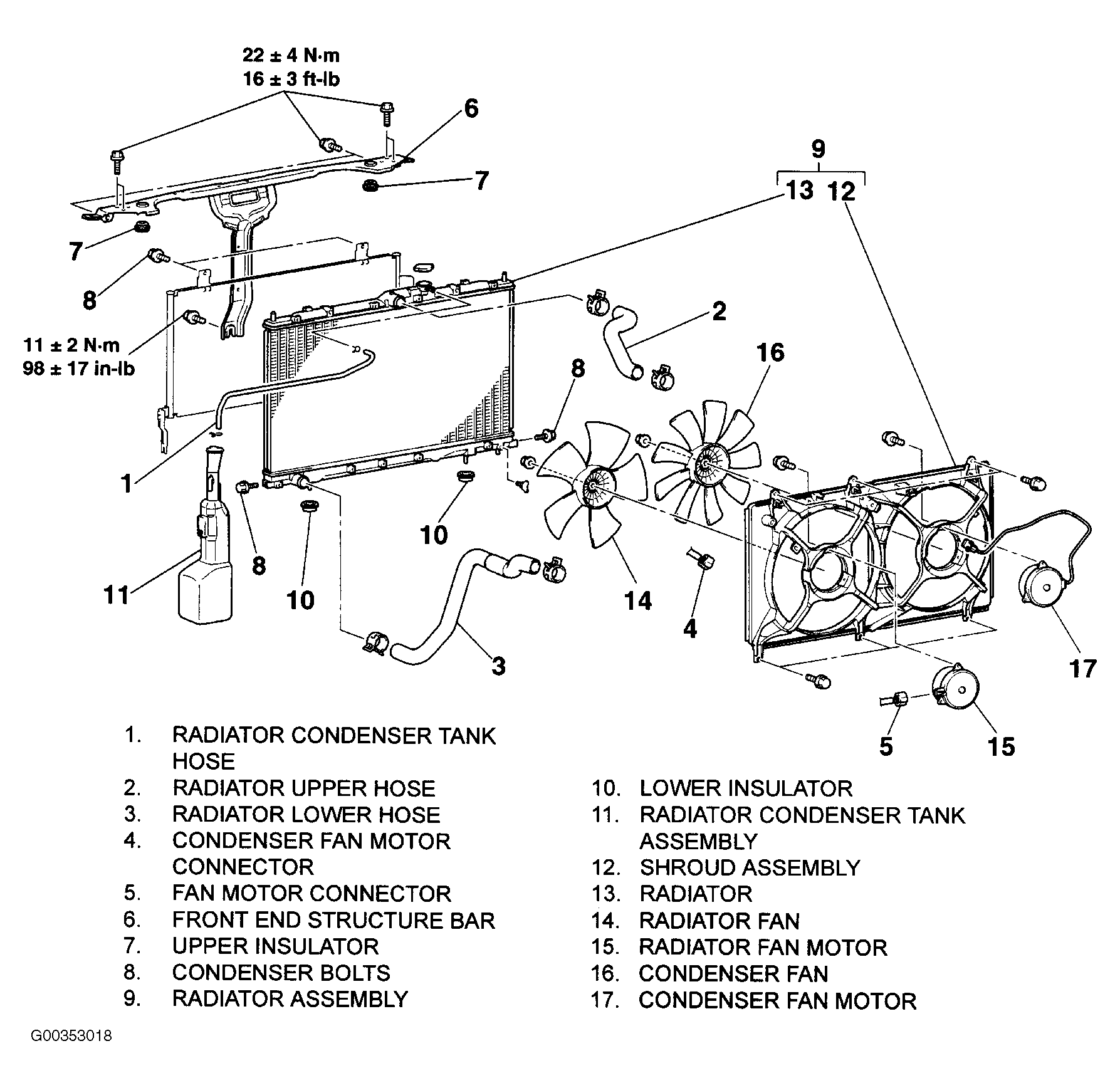

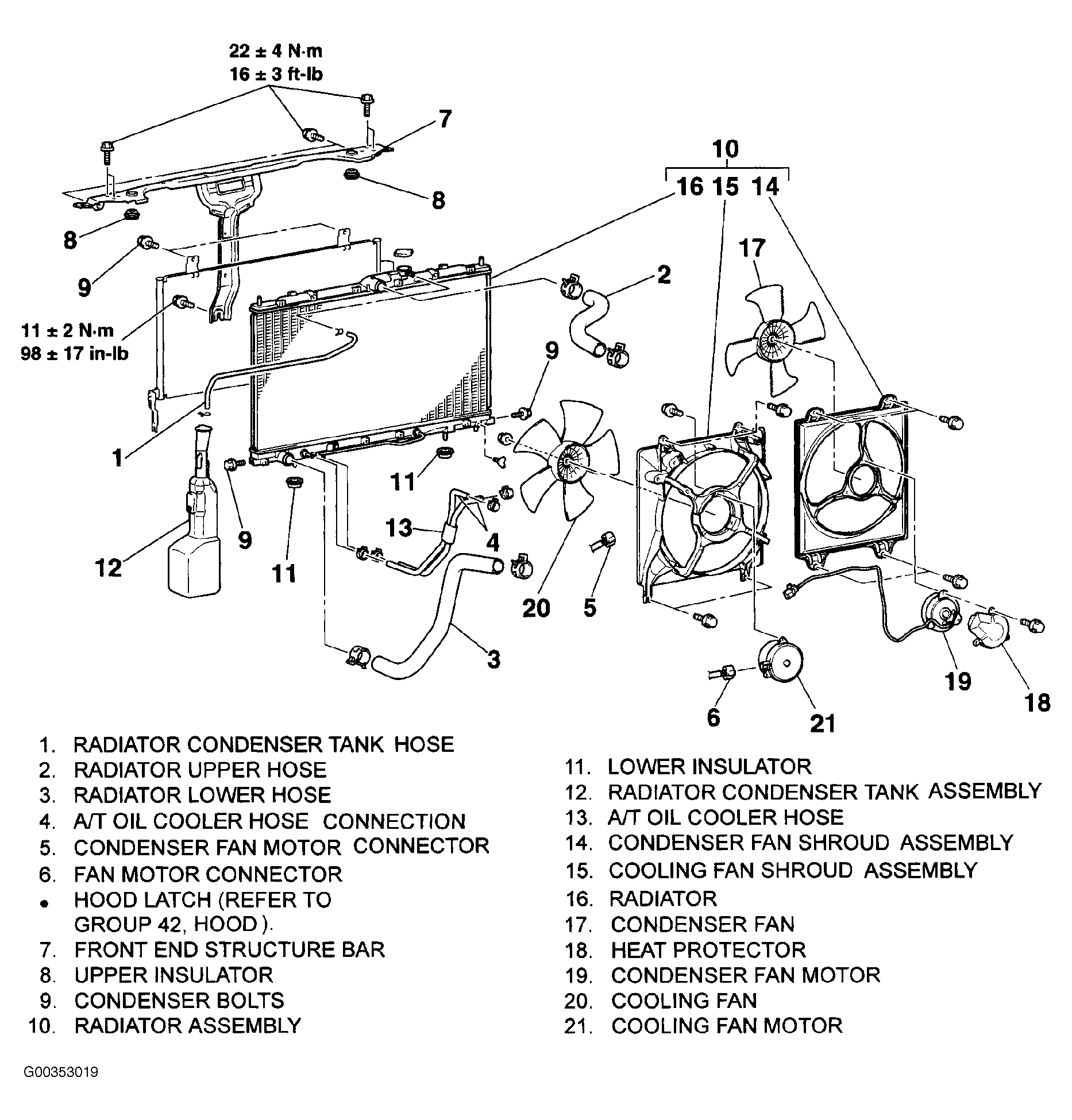

| Condenser Fan | (1) Behind Radiator | ||||
| Cooling Fan | (1) Behind Radiator | ||||

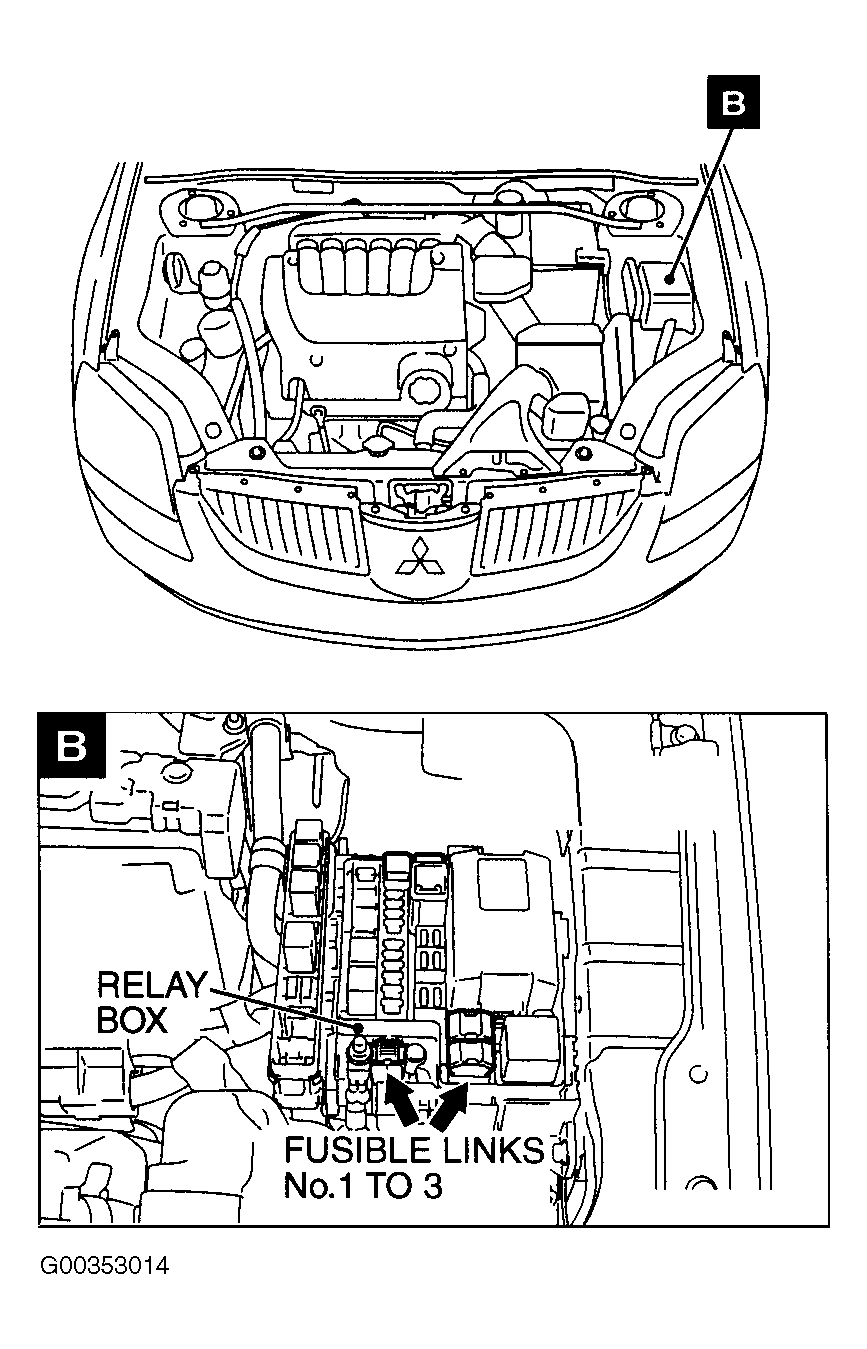

| Fusible Link No. 20 | (2) In Engine Compartment Fuse/Relay Box | ||||
| Radiator Fan Relay | In Engine Compartment Fuse/Relay Box | ||||
|
|||||
