Home >> Mitsubishi >> 2004 >> Endeavor LS, AWD >> Repair and Diagnosis >> Suspension >> Front Suspension >> Strut Assembly >> Disassembly And Assembly >> Notes

Disassembly And Assembly: Notes

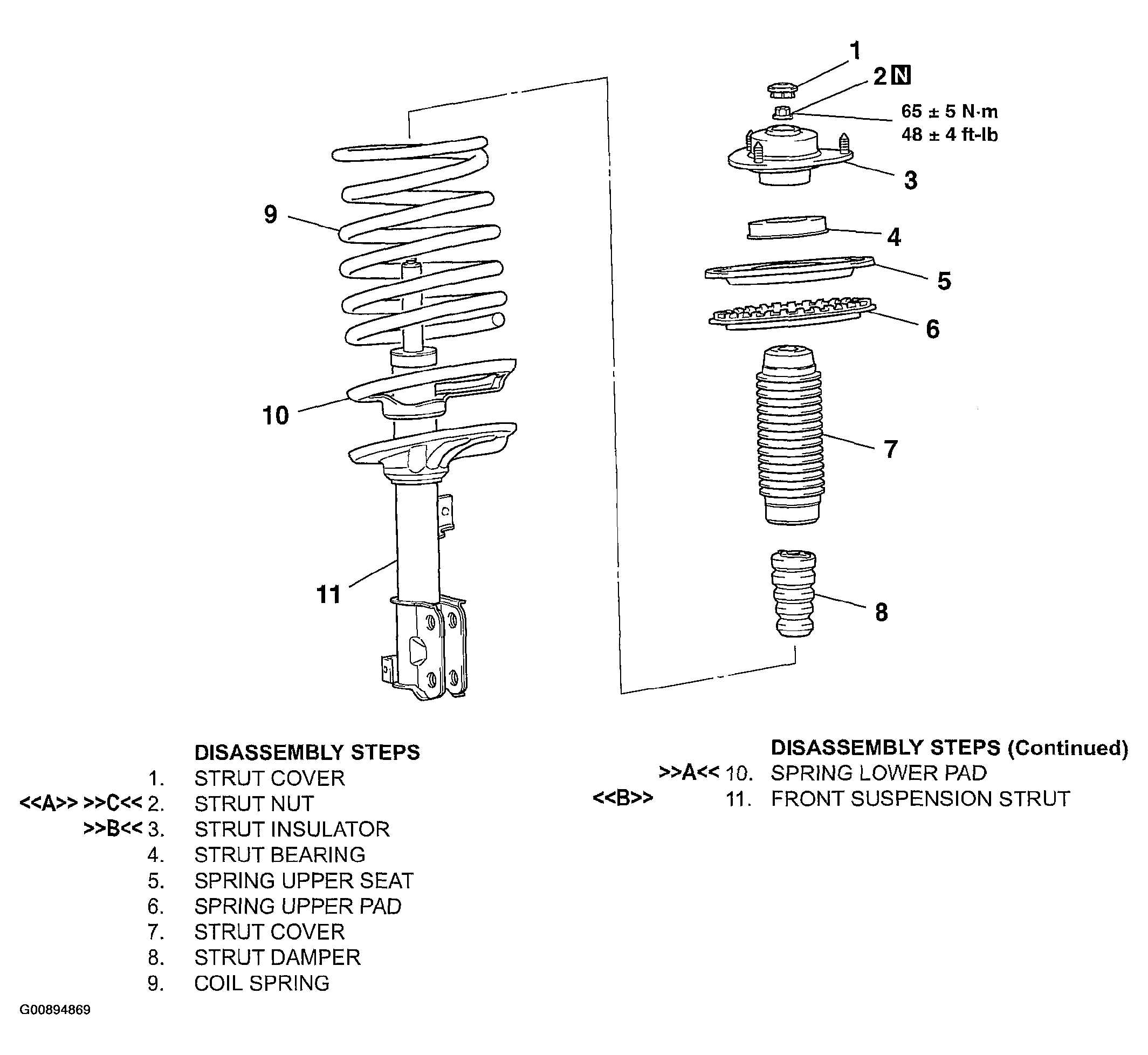

Fig 1: Disassembly And Assembly Of Strut Assembly
G00894869Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
