Front Wheel Alignment Check And Adjustment: Toe-In

Standard value: 0 +/- 3 mm (0 +/- 0.12 inch)

1. Adjust the toe-in by undoing the clip and jam nut, and turning the left and right tie rod turnbuckles by the same amount (in opposite directions).

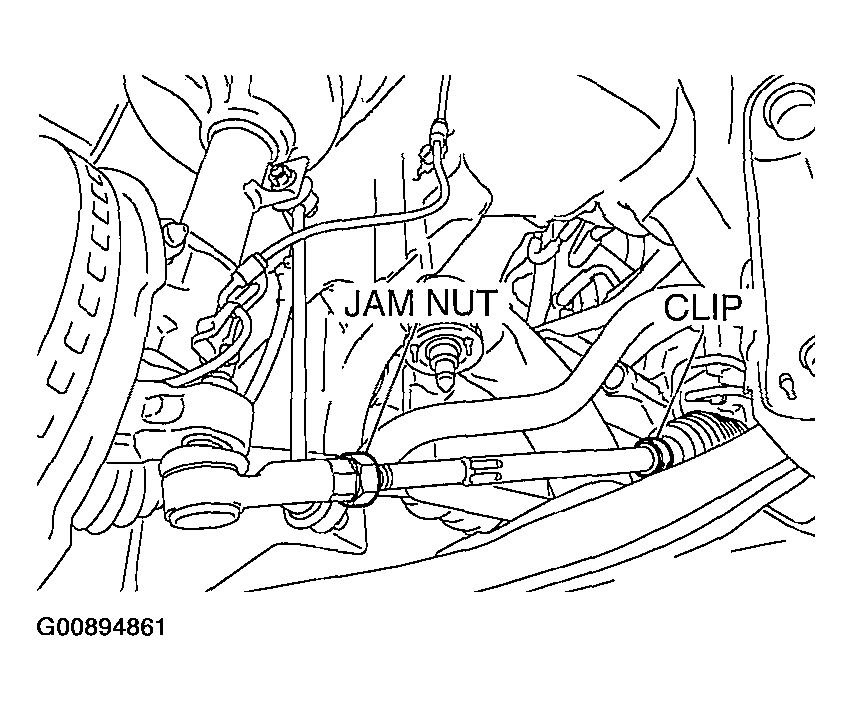

   Fig 1: Locating Jam Nut

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
   NOTE: The toe will move out as the left turnbuckle is turned toward the front of the vehicle and the right turnbuckle is turned toward the rear of the vehicle.
2. Install the clip and tighten the jam nut to the specified torque.

   Tightening torque: 52 +/- 2 N.m (38 +/- 2 ft-lb)

3. Confirm that the toe-in is at the standard value.
4. Use a turning radius gauge to check that the steering angle is at the standard value.

   STEERING ANGLE

   Standard value:

   35°6' +/- 2°00' < Inner wheel>

   30+/-00' < Outer wheel (reference)>

5. On vehicles with ASC, if the toe-in is adjusted, always carry out steering wheel sensor calibration (Refer to STEERING WHEEL SENSOR CALIBRATION article).
