Removal And Installation: Notes

CAUTION: *: indicates part which should be temporarily tightened, and then fully tightened with the engine weight applied on the vehicle body.

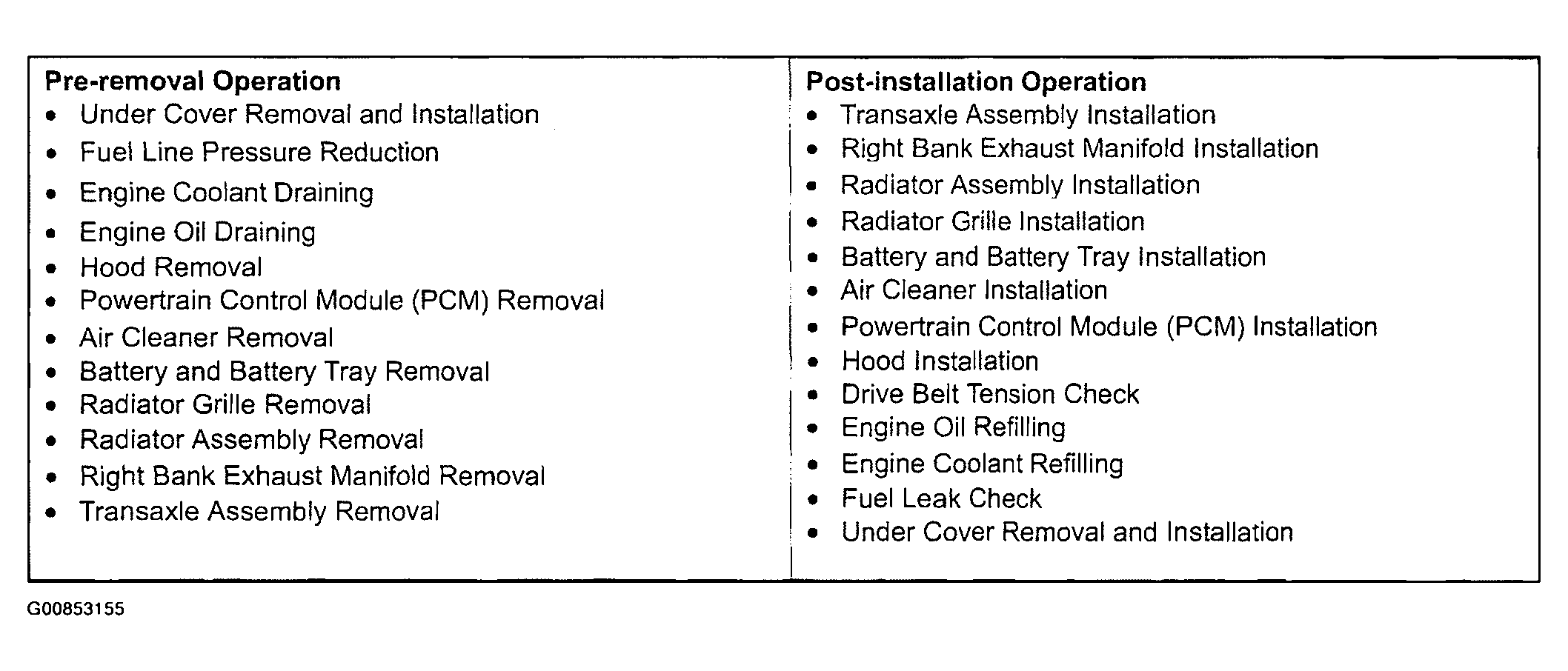

Fig 1: Removing/Installing Engine (1 Of 3)
G00853155Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

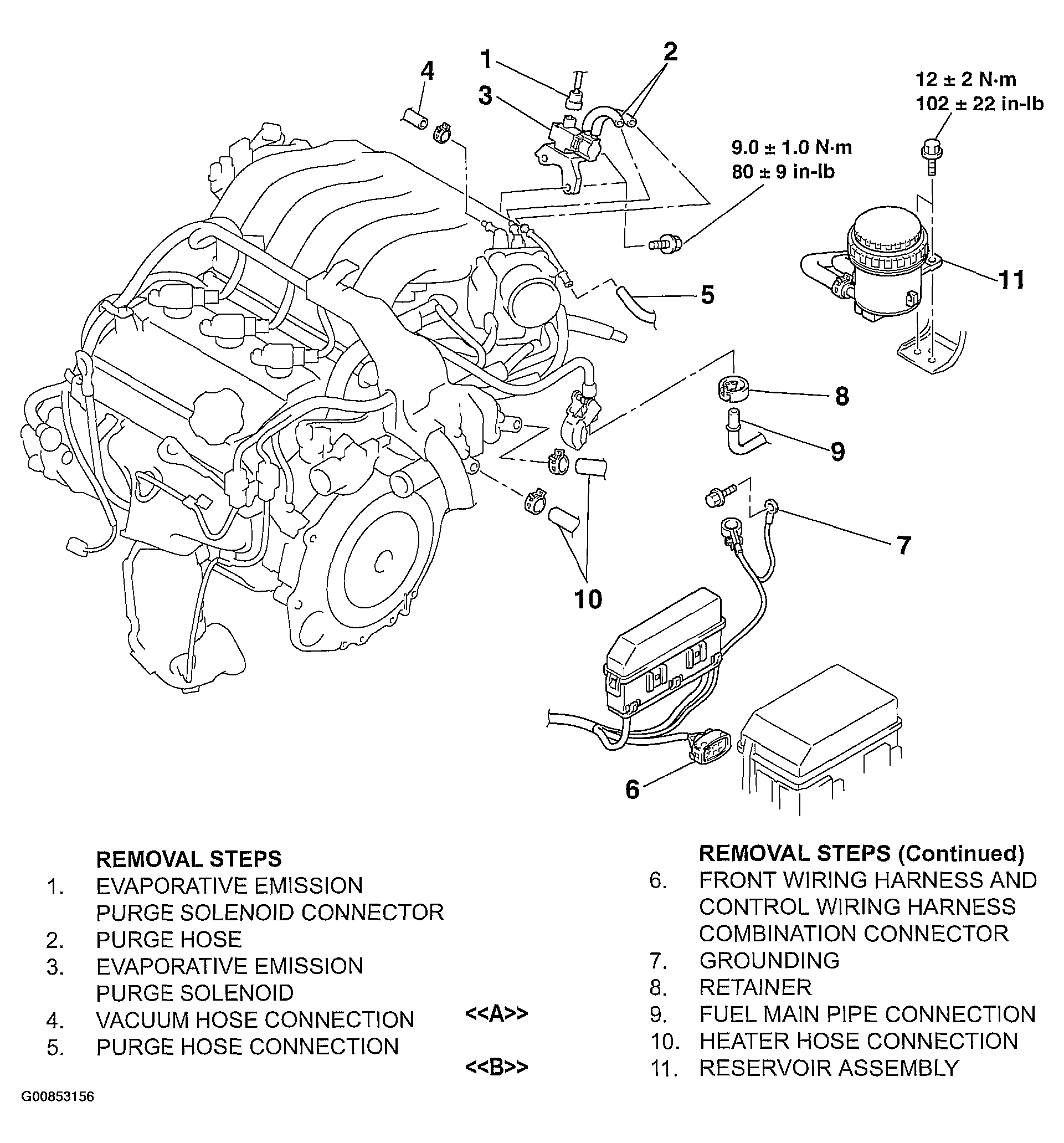

Fig 2: Removing/Installing Engine (2 Of 3)
G00853156Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

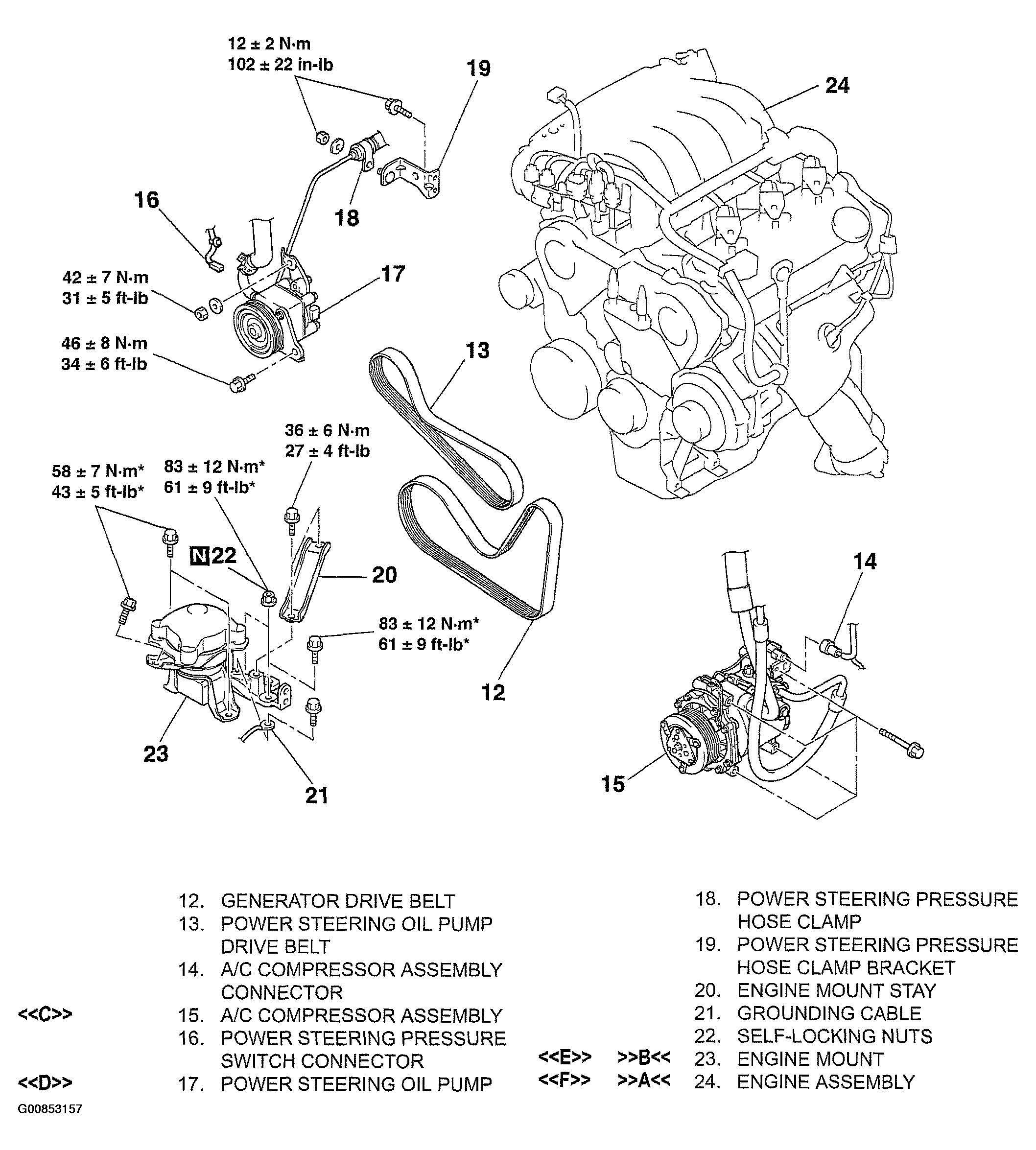

Fig 3: Removing/Installing Engine (3 Of 3)
G00853157Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
