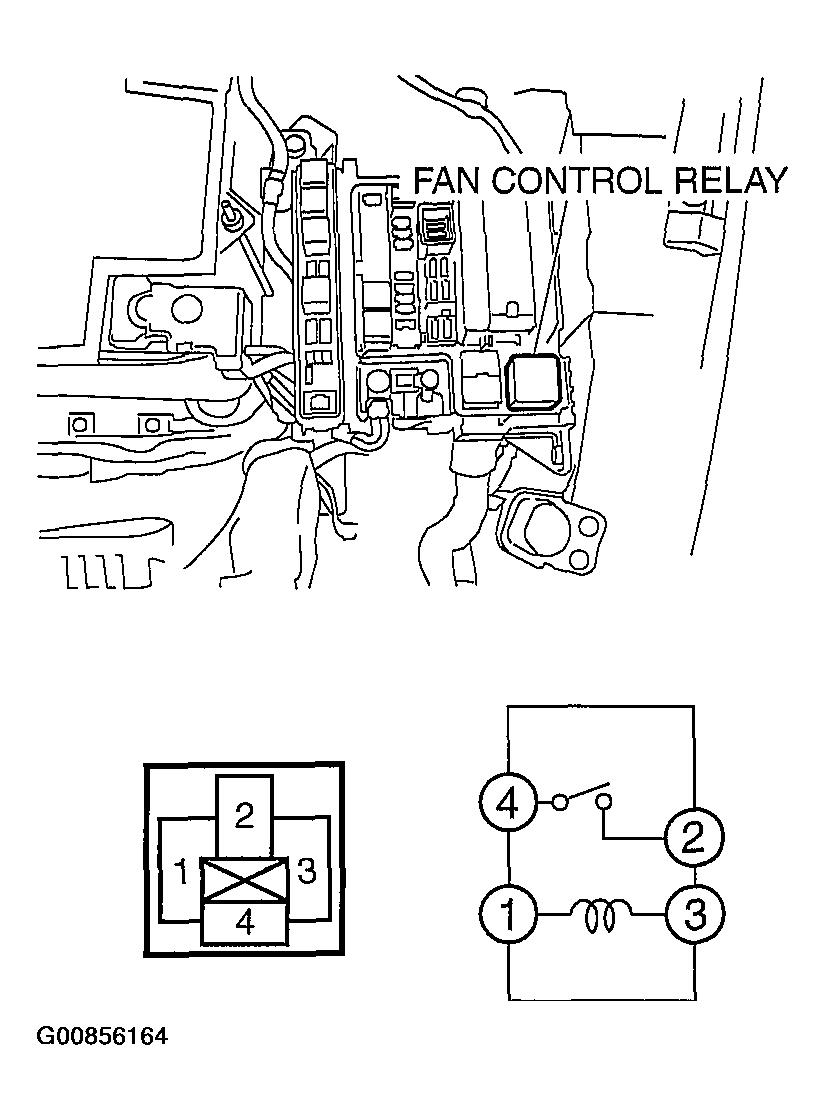

Fan Control Relay Continuity Check
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. FAN CONTROL RELAY CONTINUITY CHECK
| BATTERY VOLTAGE |
TERMINAL NO. TO BE CONNECTED TO TESTER |
CONTINUITY TEST RESULTS |
| Not applied |
4-2 |
Open circuit |
| Connect terminal No.3 and battery (-) terminal. Connect terminal No. 1 and battery (+) terminal. |
4-2 |
Less than 2 ohms |
