Removal And Installation: Notes

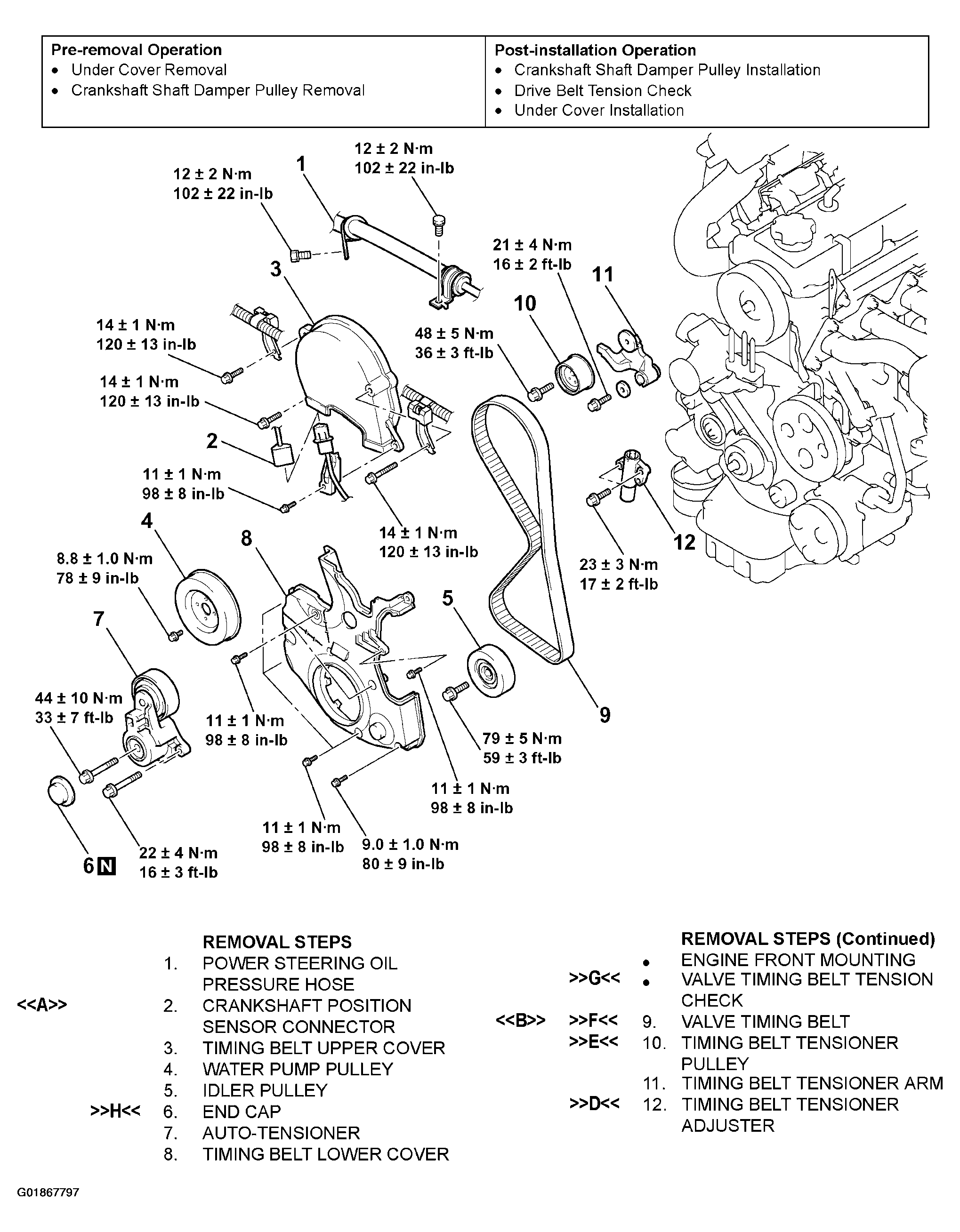

Fig 1: Removing & Installing Timing Belt (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

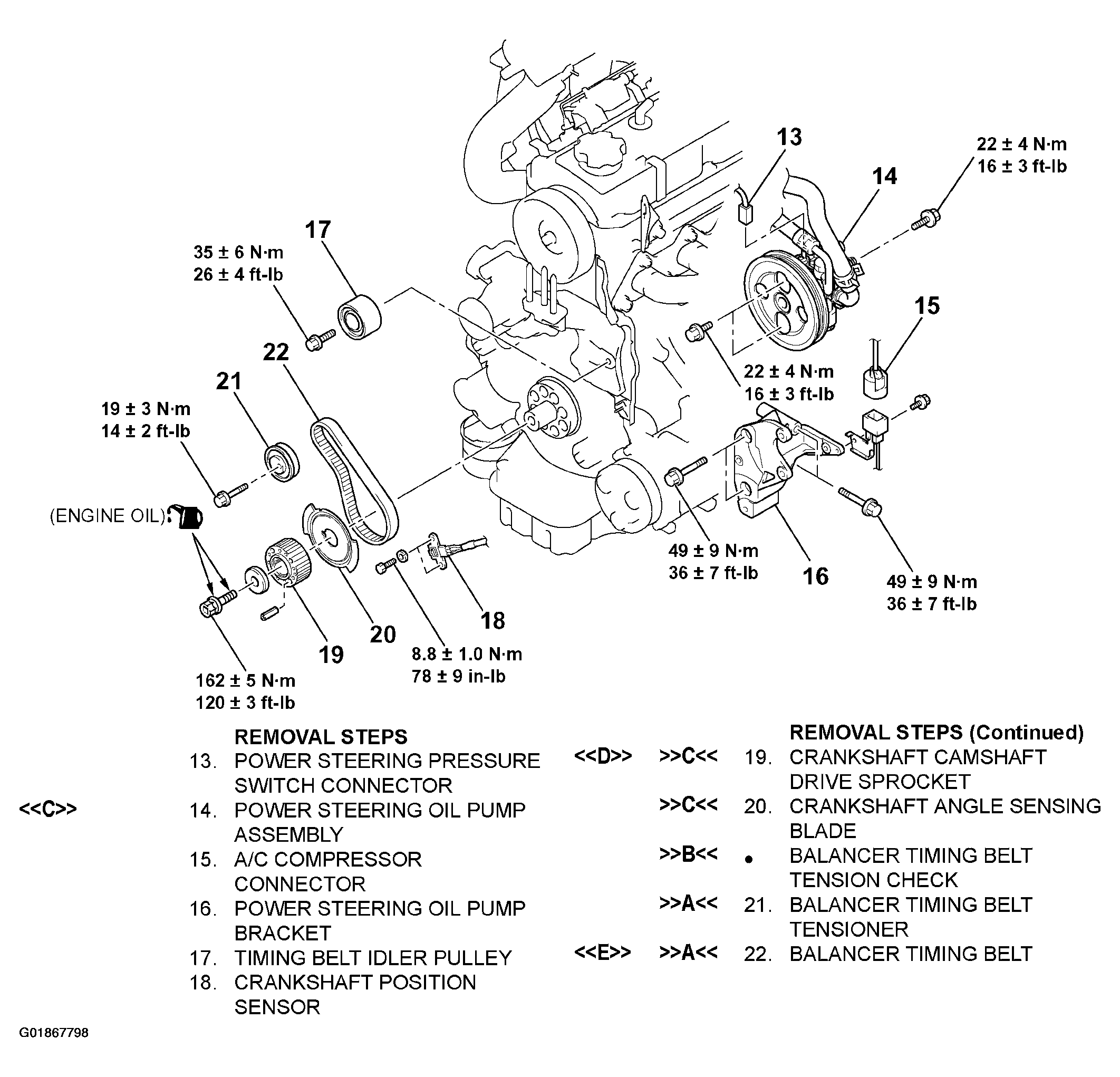

Fig 2: Removing & Installing Timing Belt (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

• MB991367: Special Spanner
• MB991385: Pin
• MB991502: Scan Tool (MUT-II)
• MB991668: Belt Tension Meter Set
• MB991704: Battery Harness
• MD998738: Adjusting Bolt
• MD998767: Tensioner Wrench
