Door Switch Check

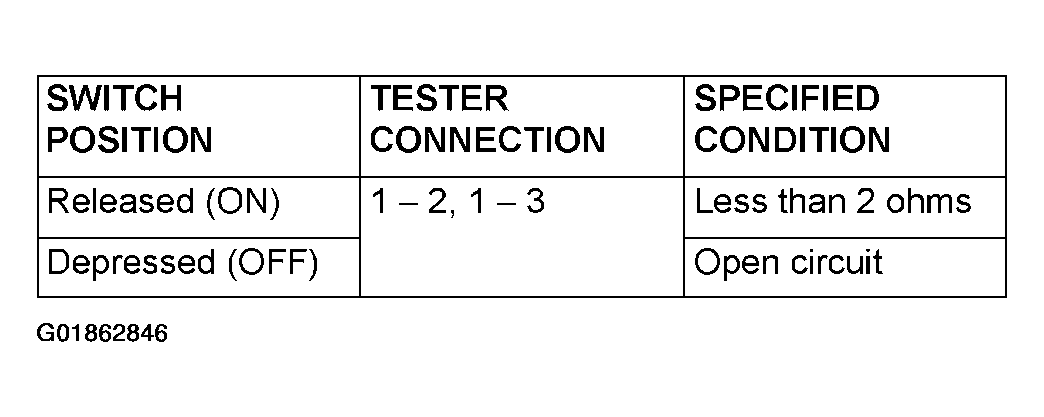

Fig 1: Door Switch Check Table
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

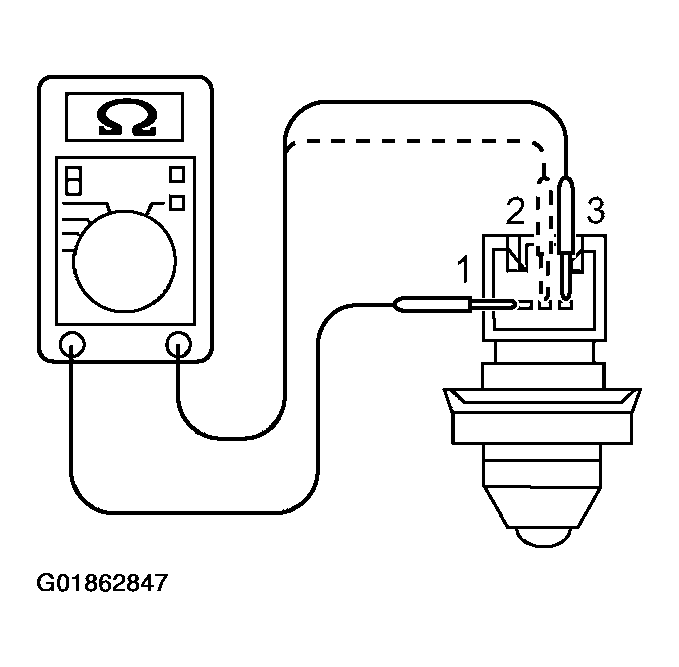

Fig 2: Checking Door Switch
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
