A/C Control Unit Connector E-20 Connector End View
A/C Control Unit Connector E-20 Connector End View

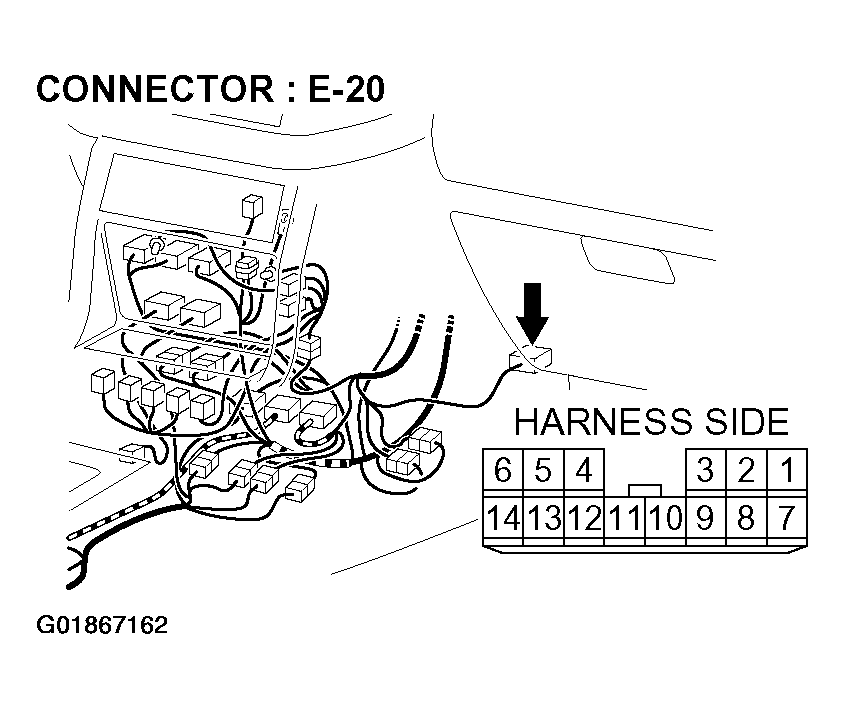

Fig 1: A/C Control Unit Connector E-20 Connector End View
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
