Installation Service Points

>> A << INTAKE MANIFOLD GASKET INSTALLATION

Install the gasket with the protrusions in the position illustrated.

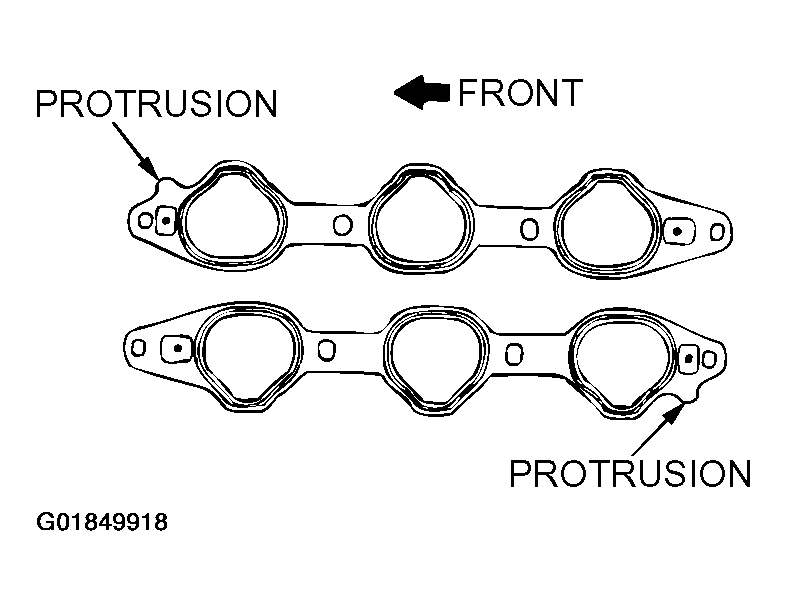

Fig 1: Installing Gasket With Protrusions In Position

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

>> B << INTAKE MANIFOLD INSTALLATION

Tighten the nuts by the following procedure.

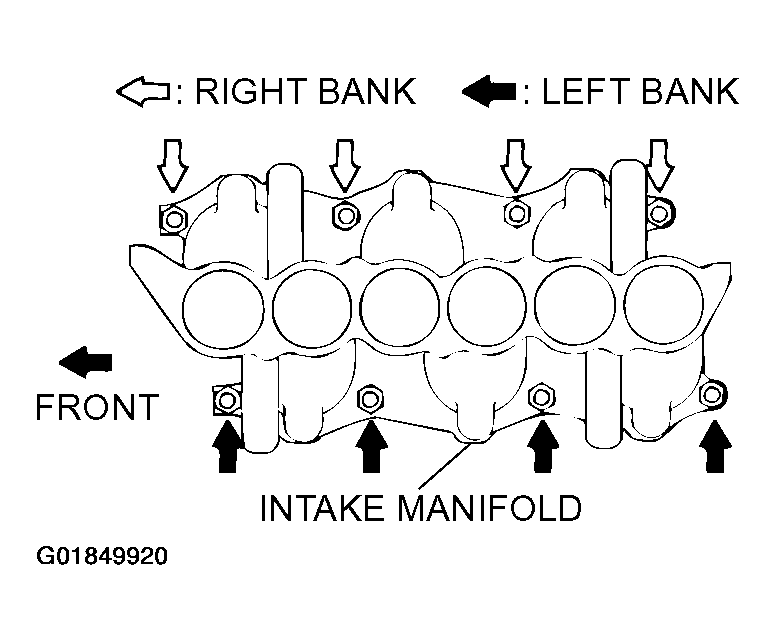

Fig 2: Installing Intake Manifold

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

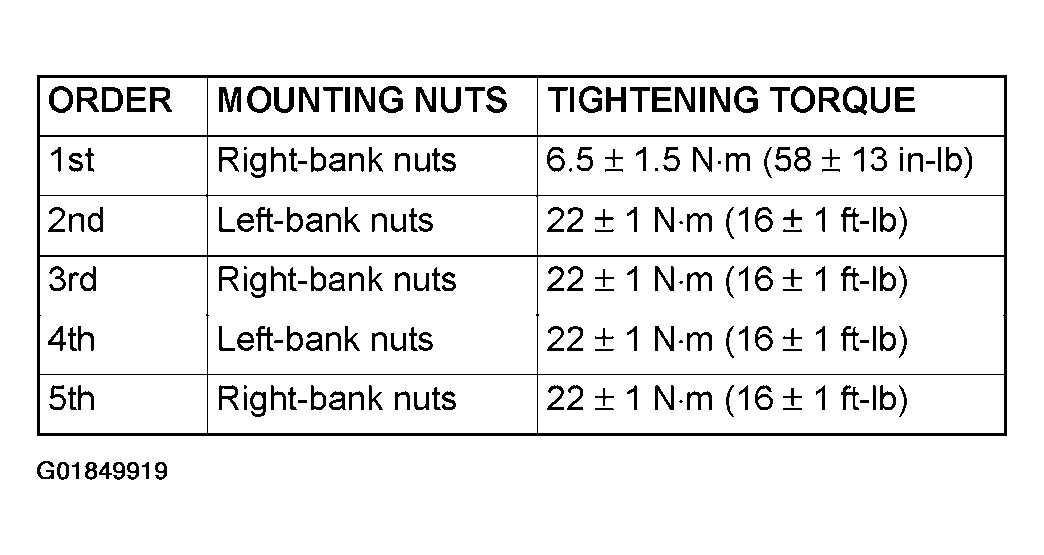

Fig 3: Tightening Intake Manifold Chart

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

>> C << O-RING/FUEL PRESSURE REGULATOR/FUEL HIGH-PRESSURE HOSE INSTALLATION

CAUTION: Be careful not to allow any engine oil to enter the fuel rail.

When connecting the fuel pressure regulator and the fuel high-pressure hose to the fuel rail, apply a small amount of new engine oil to the O-ring. Then insert the hose high-pressure hose, being careful not to damage the O-ring.

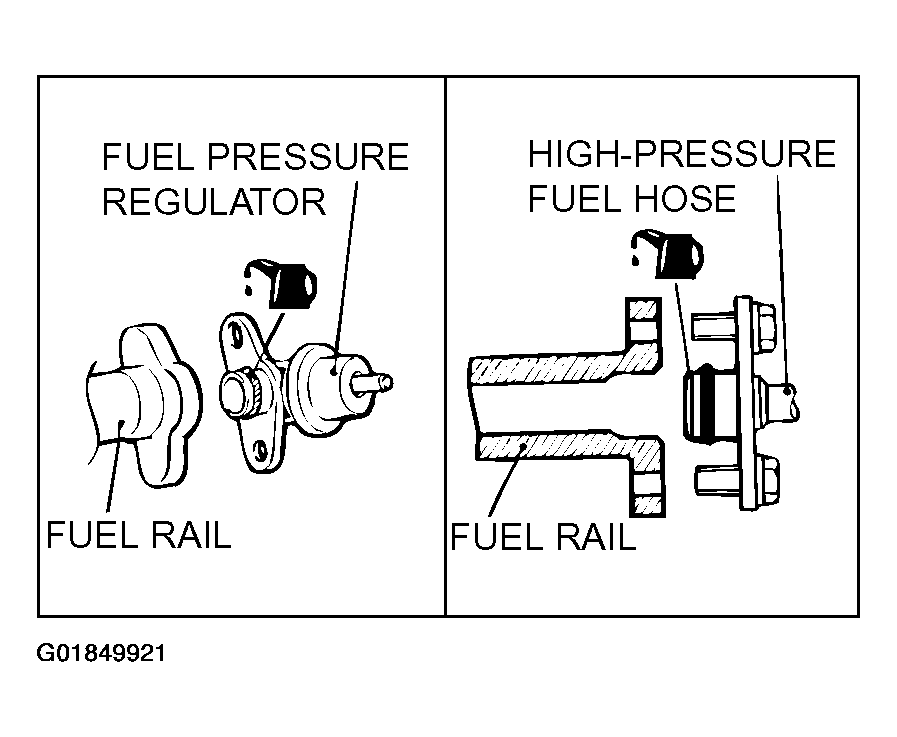

Fig 4: Identifying Oil Application Area On O-Ring

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

>> D << INTAKE MANIFOLD PLENUM GASKET INSTALLATION

Install the gasket with the protrusion in the position illustrated.

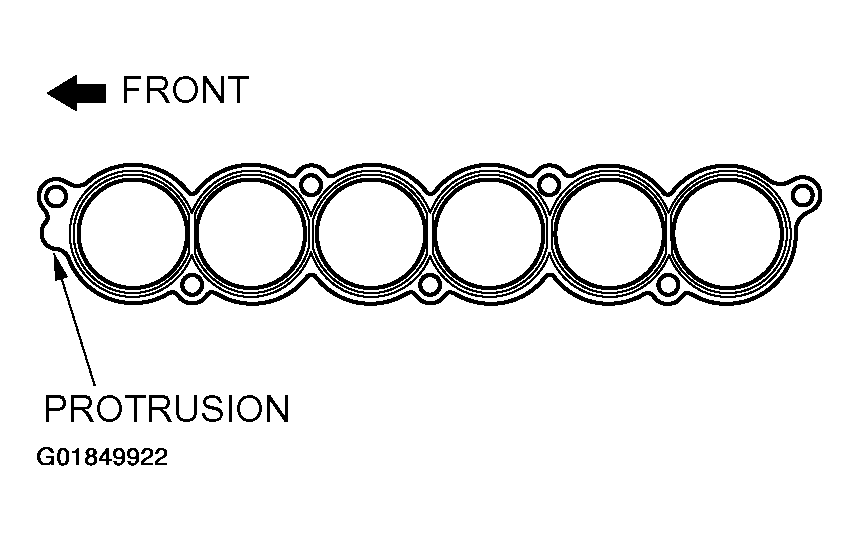

Fig 5: Installing Gasket With Protrusion In Position

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
