Defogger Relay Check

DEFOGGER RELAY CHECK

BATTERY VOLTAGE TESTER CONNECTION SPECIFIED CONDITION
Not applied 5 - 4 Open circuit
  • Connect terminal 1 to the positive battery terminal
  • Connect terminal 3 to the negative battery terminal
 5 - 4 Less than 2 ohms

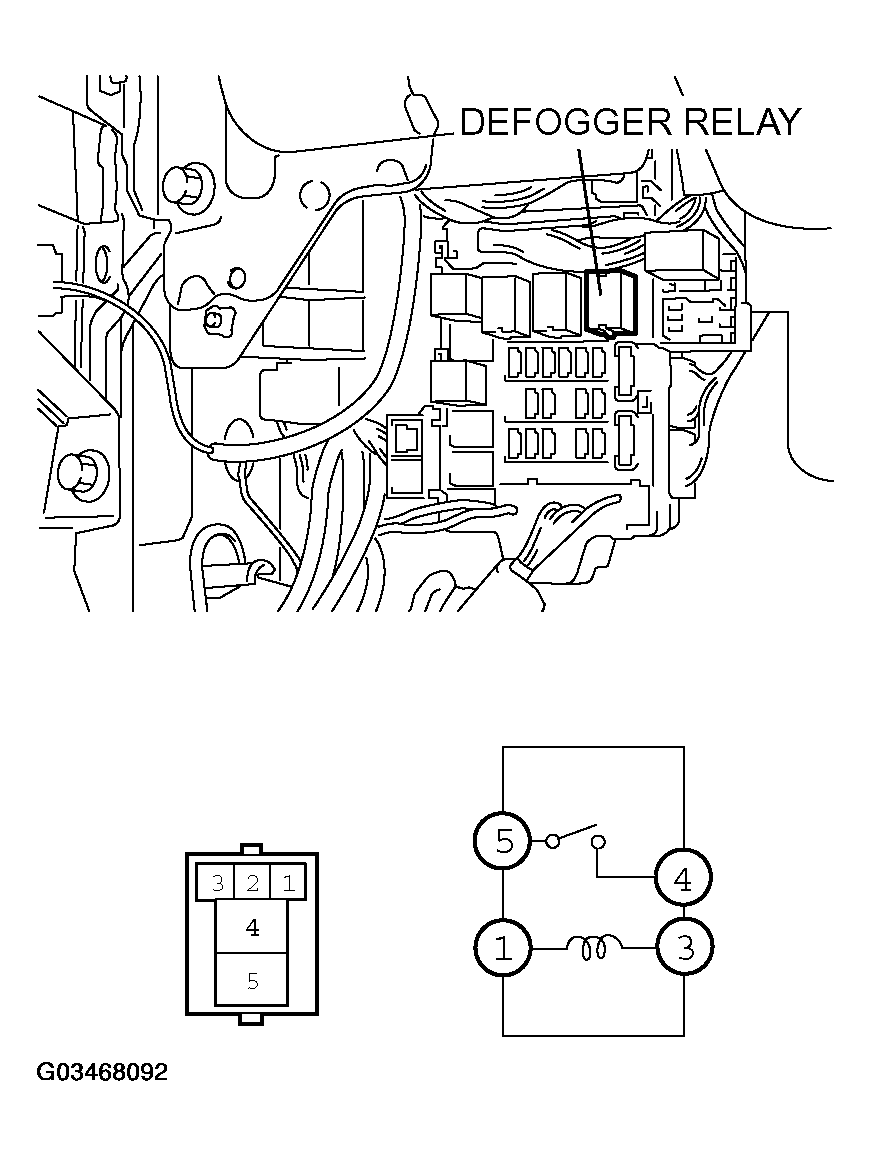

Fig 1: Identifying Defogger Relay
G03468092Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
