< Combination Meter >

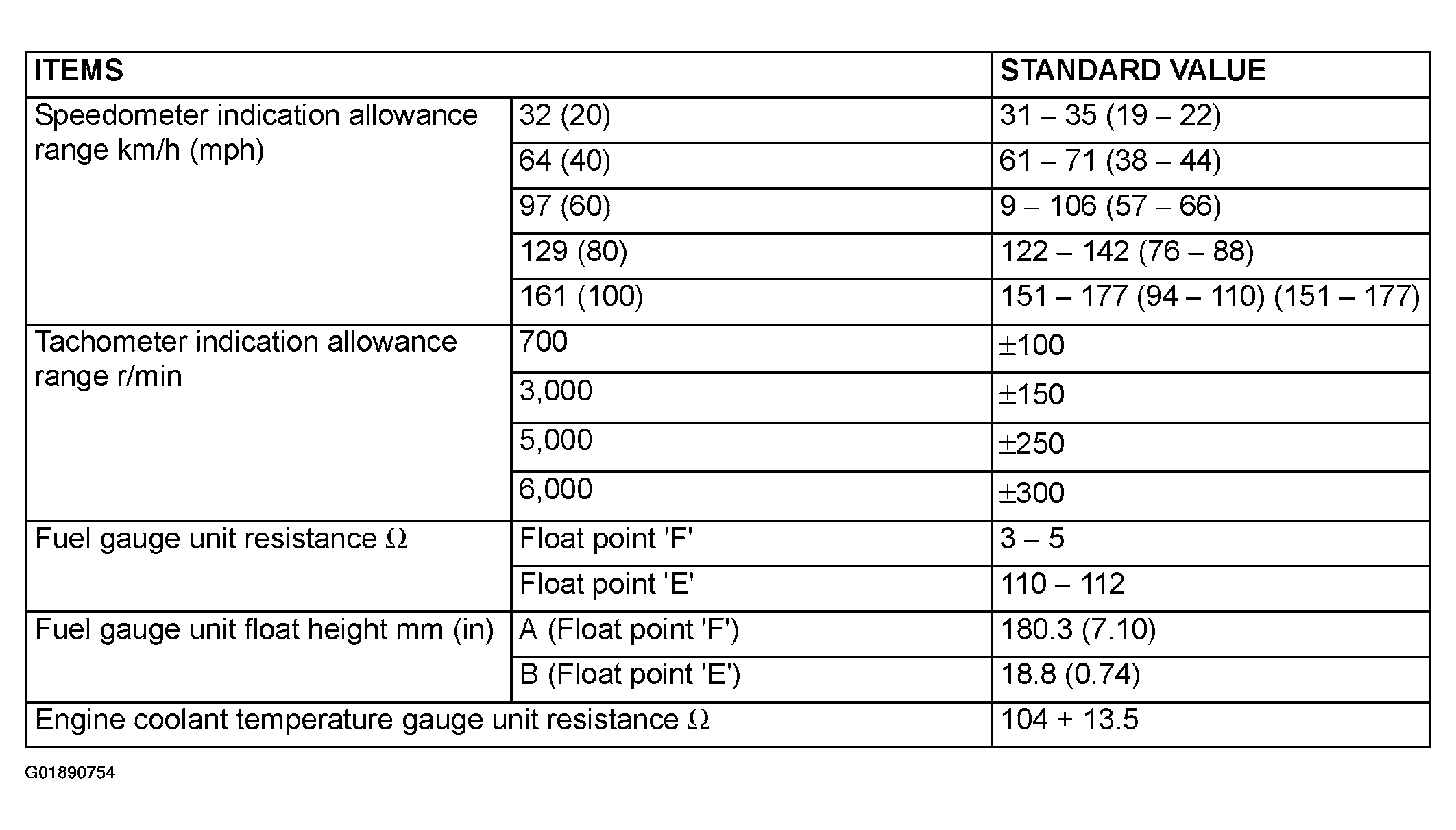

Fig 1: Combination Meter Service Specifications (1 Of 2)
G01890754Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

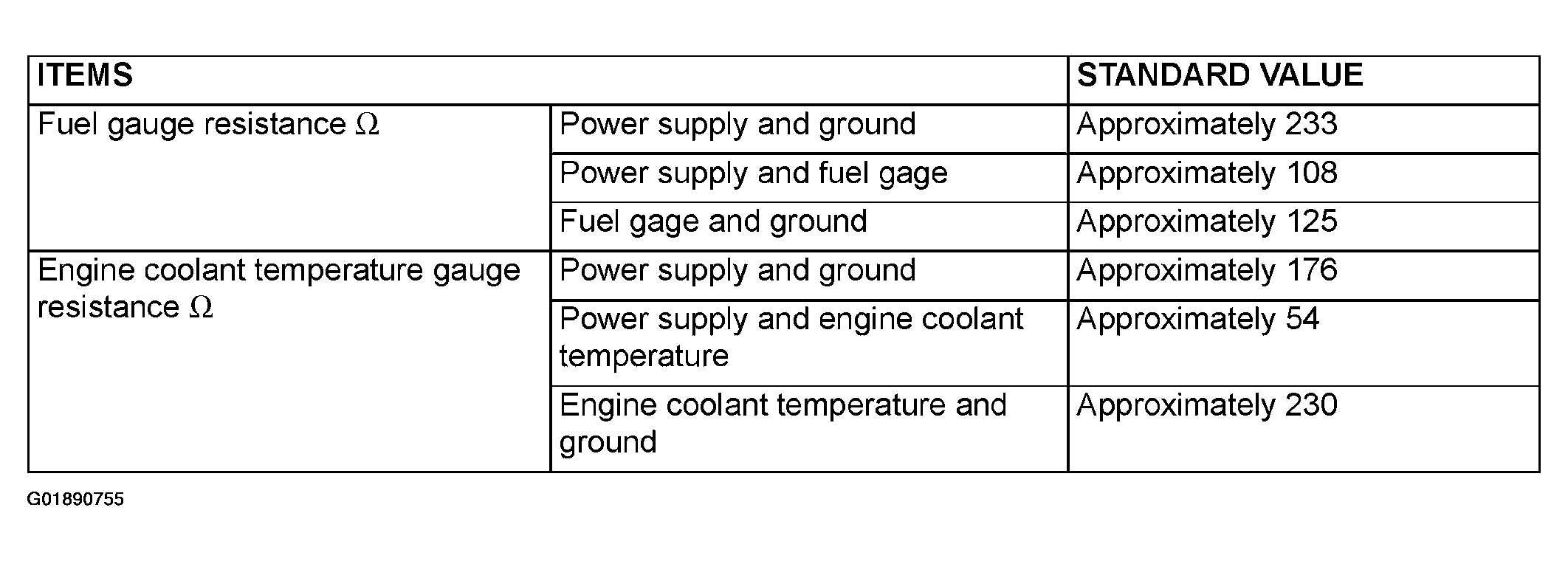

Fig 2: Combination Meter Service Specifications (2 Of 2)
G01890755Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
