Removal And Installation: Notes

CAUTION: ^* : Indicates parts which should be temporarily tightened, and then fully tightened after placing the vehicle horizontally and loading the full weight of the engine on the vehicle body.

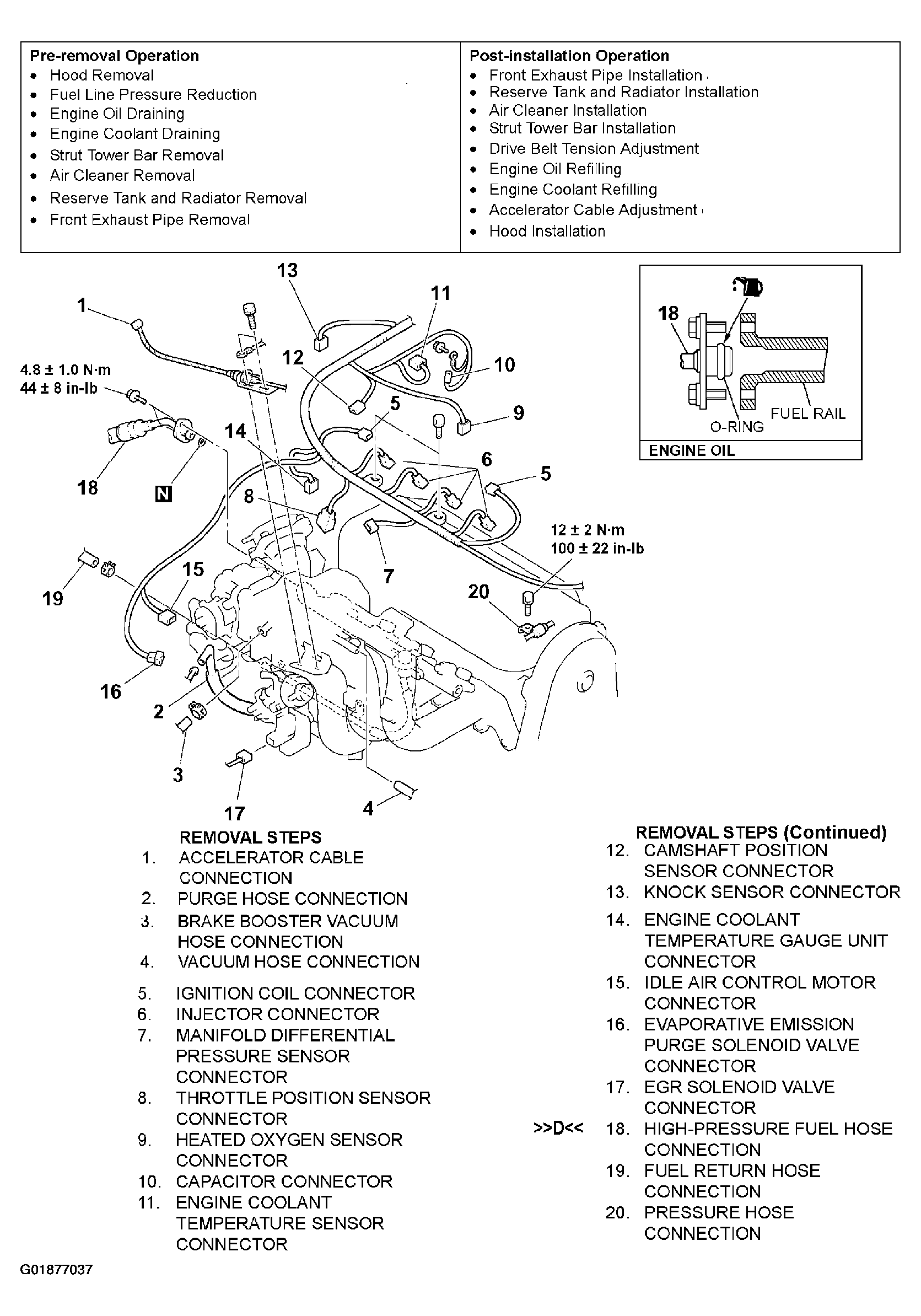

Fig 1: Removing & Installing Engine Assembly (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

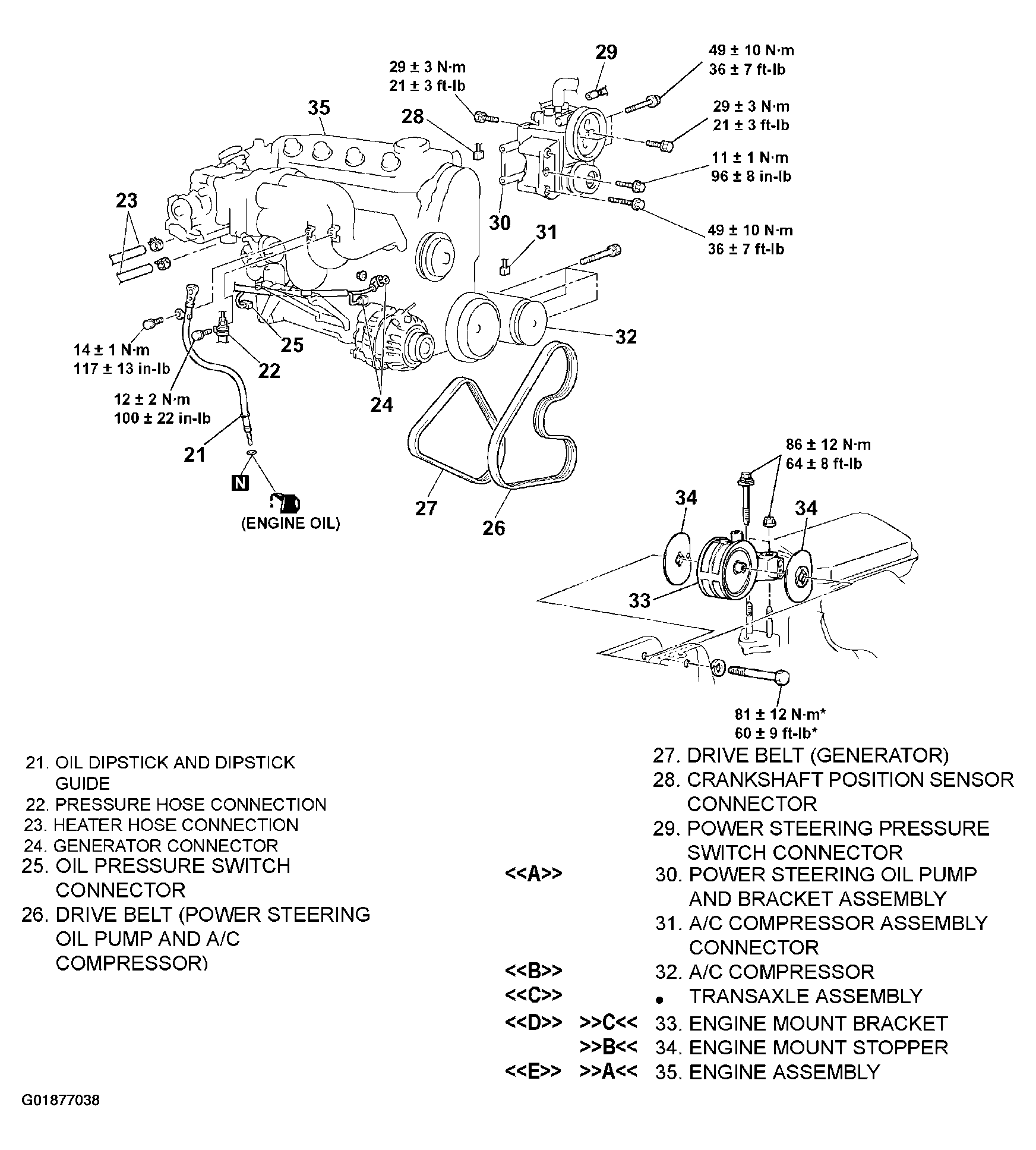

Fig 2: Removing & Installing Engine Assembly (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:

MB991453: Engine Hanger Assembly
MZ203827: Engine Lifter
MB991454: Engine hanger balancer (MB991453, part of the engine hanger attachment set)
MB991895: Engine Hanger
