Home >> Mitsubishi >> 2003 >> Diamante LS >> Repair and Diagnosis (Single Page) >> Transmission >> Automatic Trans >> Diagnosis >> General Description >> Function Element Table

Function Element Table

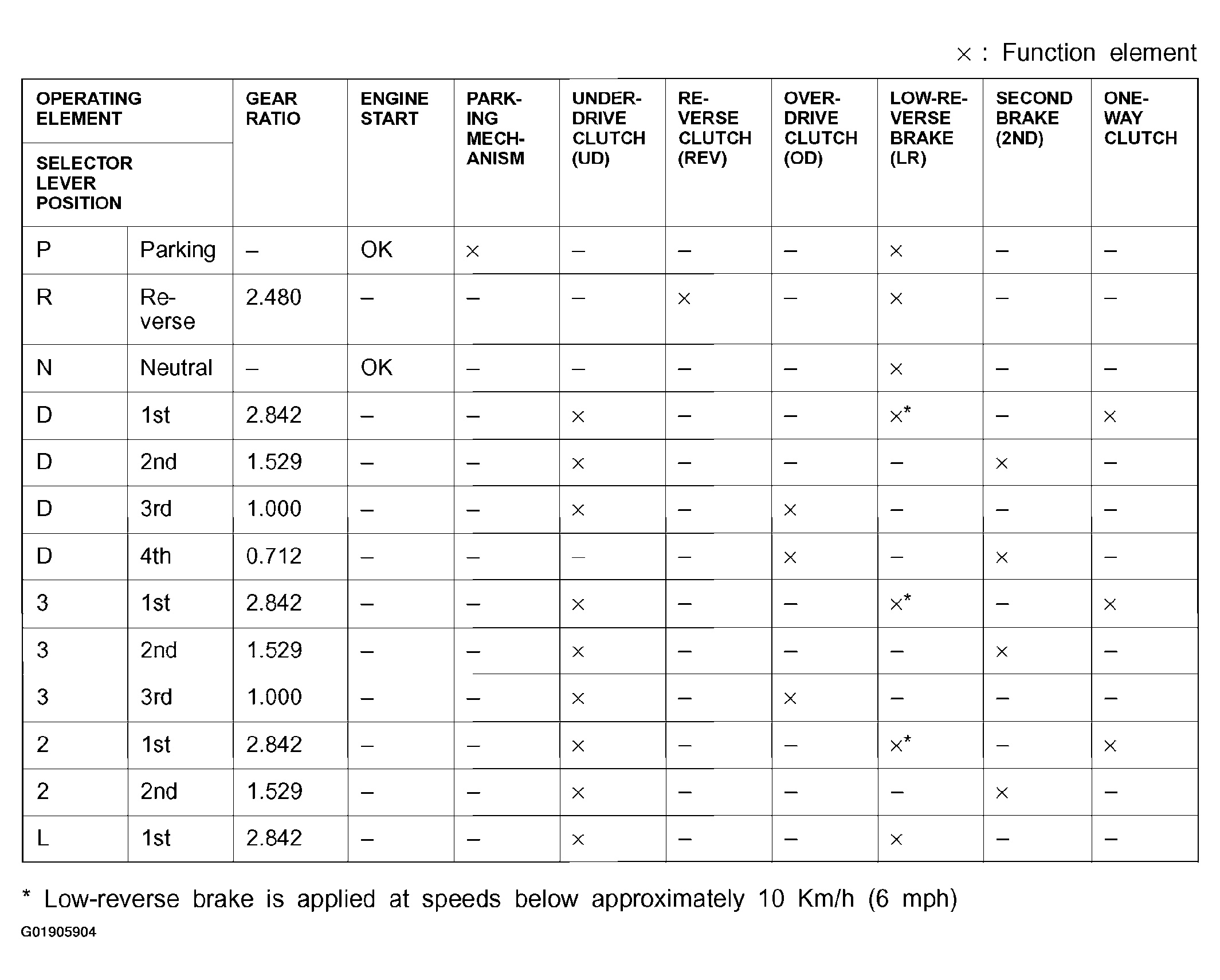

Fig 1: Transaxle Function Element Table

G01905904

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
