Hydraulic Control System < 5-Speed Model >

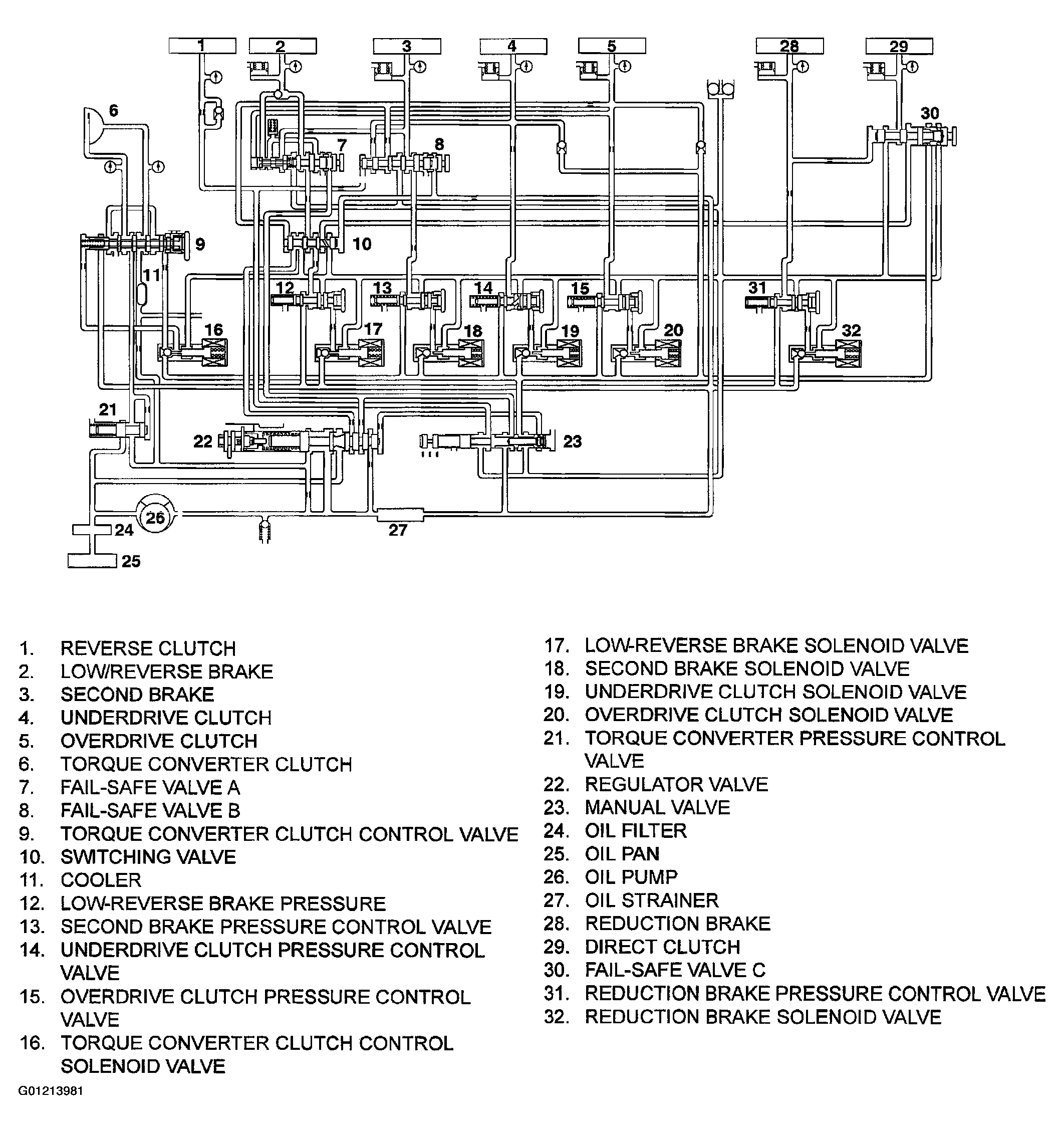

Fig 1: Identifying Hydraulic Control System (5-Speed Model)

G01213981

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
