Brakelight Switch Circuit Connector End Views

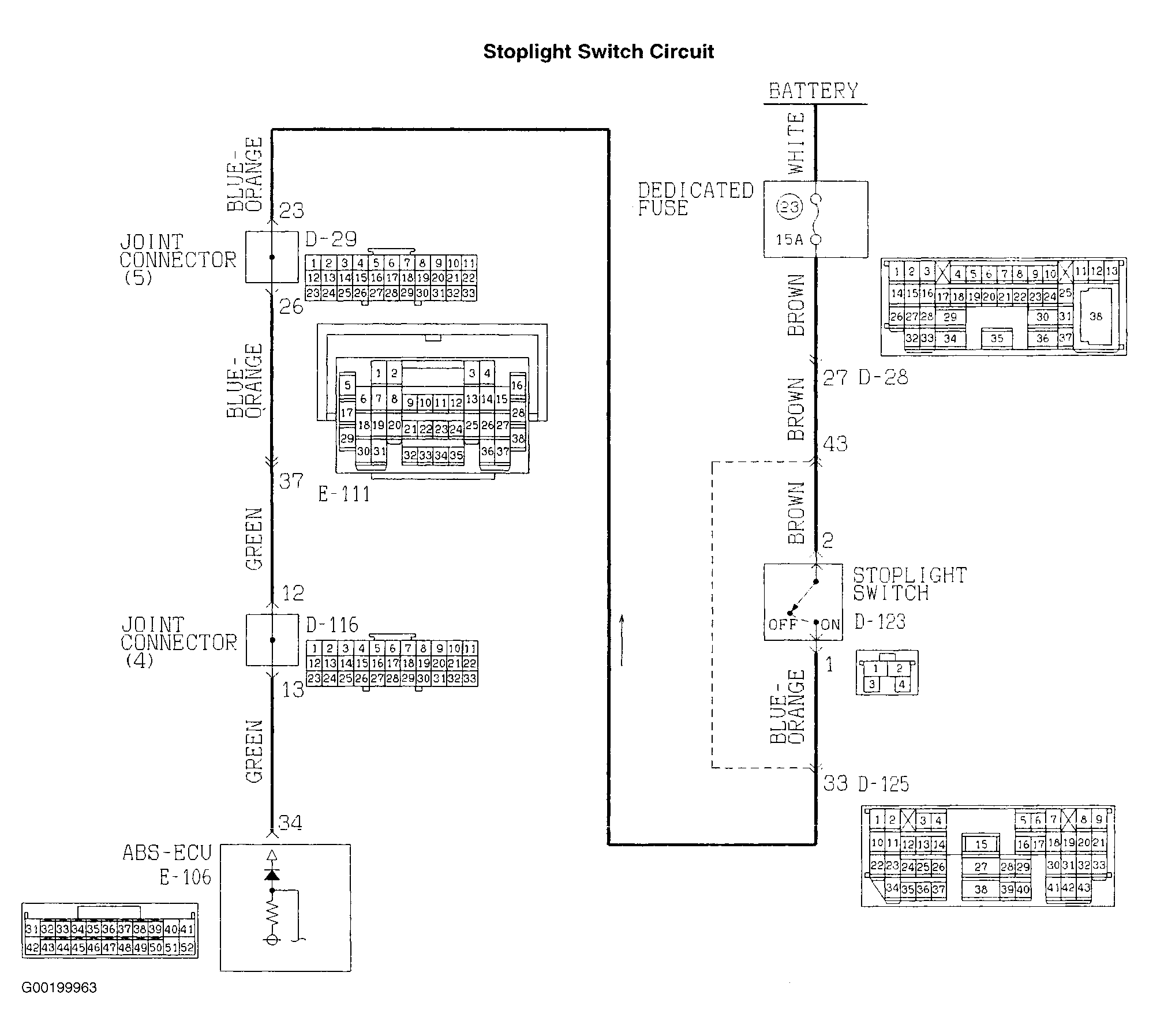

Fig 1: Brakelight Switch Circuit Connector End Views

G00199963

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
